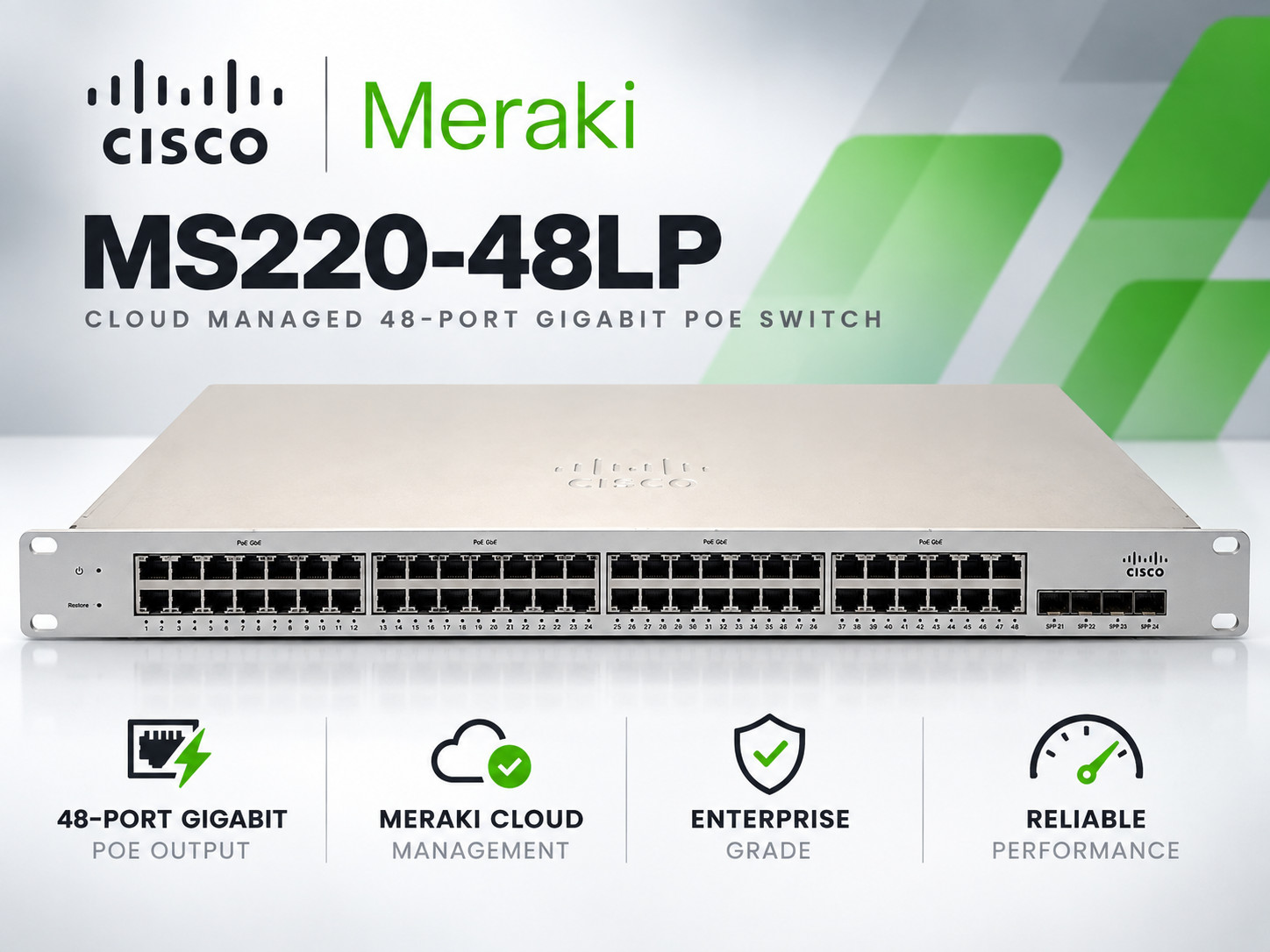

Cisco Meraki MS220-48LP-HW 48-Port PoE+ Gigabit Switch – Tested and Unclaimed Overview The Cisco Meraki MS220-48LP is a cloud-managed switch designed for business and enterprise networks. It provides 48 Gigabit Ethernet RJ45 ports with 802.3af/802.3at PoE/PoE+ support, a 370 W total PoE budget, and 4 dedicated 1 GbE SFP uplink ports. The MS220-48LP features centralized Cisco Meraki cloud management, a non-blocking switching architecture, enterprise switching features, and a 104 Gbps switching capacity in a 1U rack-mount form factor.

Specifications

• Model: Cisco Meraki MS220-48LP-HW
• Type: Cloud-managed Layer 2 Gigabit Ethernet Switch
• Ethernet Ports: 48× 10/100/1000BASE-T RJ45
• Uplink Ports: 4× 1 GbE SFP
• PoE Support: IEEE 802.3af PoE and 802.3at PoE+
• Total PoE Budget: 370 W
• Switching Capacity: 104 Gbps
• MAC Address Table: Up to 16,000 entries
• VLAN Support: Up to 4,094 VLANs
• Management: Cisco Meraki Cloud (Requires Meraki Subscription)
• Management Features: Remote monitoring, configuration, diagnostics, firmware updates and virtual stacking
• Networking Features: 802.1Q VLANs, STP/RSTP, LLDP/CDP, LACP, port mirroring and IGMP snooping
• Security Features: 802.1X, MAC-based RADIUS authentication, port security and IPv4 ACLs
• Mounting: 1U rack mount
• Dimensions: 19.08 × 14.17 × 1.75 in.
• Weight: 10.88 lb
• Power Input: 100–240 VAC, 47–63 Hz
• Power Consumption: 45 W idle / up to 505 W full load
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Claim Status: Unclaimed
• Rack Hardware: Not included
• Power Cable:Not included
• Condition: Pre-owned
