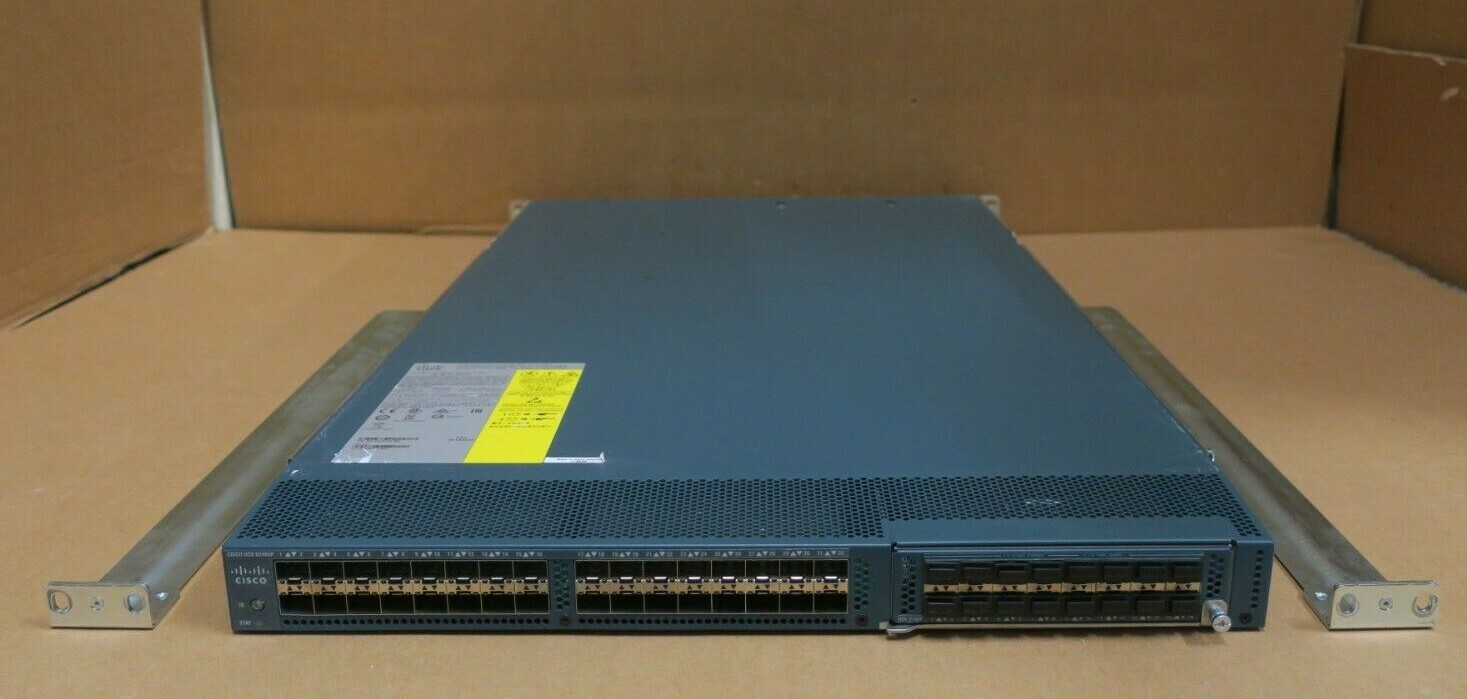

Cisco UCS 6248UP 48-Port SFP+ Fabric Interconnect Switch UCS E16UP Module
Includes Rack Mount Rails
In Good Condition And Full WorkingOrderIncludes:
- 1 xCisco UCS 6248UP 32 Port 1RU Fabric Interconnect/No PSU/32 UP
- 1 x Cisco 16 Port UCS-FI-E16UPUCS 6200 16-port Expansion module/16 UP
- 2 xCisco UCS-PSU-6248UP-AC V02100-240 VAC Power Supply
- 2 x Cisco UCS-FAN-6248UP V03 Fan
- 1 x Cisco Rack Mount Rail Kit
Product Overview
The Cisco UCS 6200 Series Fabric Interconnects are a core part of the Cisco Unified Computing System, providing both network connectivity and management capabilities for the system (Figure 2). The Cisco UCS 6200 Series offers line-rate, low-latency, lossless 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), and Fibre Channel functions.
The Cisco UCS 6200 Series provides the management and communication backbone for the Cisco UCS B-Series Blade Servers and 5100 Series Blade Server Chassis. All chassis, and therefore all blades, attached to the Cisco UCS 6200 Series Fabric Interconnects become part of a single, highly available management domain. In addition, by supporting unified fabric, the Cisco UCS 6200 Series provides both LAN and SAN connectivity for all blades within its domain.
The Cisco UCS 6200 Series uses a cut-through networking architecture, supporting deterministic, low-latency, line‑rate 10 Gigabit Ethernet on all ports, switching capacity of 2 terabits (Tb), and bandwidth of 320 Gbps per chassis, independent of packet size and enabled services. The product family supports Cisco® low-latency, lossless 10 Gigabit Ethernet[1] unified network fabric capabilities, which increase the reliability, efficiency, and scalability of Ethernet networks. The fabric interconnect supports multiple traffic classes over a lossless Ethernet fabric from the blade through the interconnect. Significant TCO savings come from an FCoE‑optimized server design in which network interface cards (NICs), host bus adapters (HBAs), cables, and switches can be consolidated.Boot Log:
N5000 BIOS v.3.6.0, Wed 05/09/2012, 03:15 PM
B2
B2
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
Booting kickstart image: class="MsoNoSpacing" style="">.2.3.N2.2.26e.bin....
Usage: init 0123456SsQqAaBbCcUu
INIT: [ 10.735576] I2C - Mezz absent
Starting system POST.....
Executing Mod 1 1 SEEPROM Test:...done (0 seconds)
Executing Mod 1 1 GigE Port Test:....done (32 seconds)
Executing Mod 1 1 PCIE Test:.................done (0 seconds)
Mod 1 1 Post Completed Successfully
POST is completed
can't create lock file /var/lock/mtab~207: No such file or directory (use -n flag to override)
S10mount-ramfs.supnuovaca Mounting /isan 3000m
Mounted /isan
Creating /callhome..
Mounting /callhome..
Creating /callhome done.
Callhome spool file system init done.
nohup: redirecting stderr to stdout
autoneg unmodified, ignoring
autoneg unmodified, ignoring
Checking all filesystems....r.rr done.
Checking NVRAM block device ... done
The startup-config won't be used until the next reboot.
.
Loading system software
Uncompressing system image: class="MsoNoSpacing" style="">
Loading plugin 0: core_plugin...
Loading plugin 1: eth_plugin...
Loading plugin 2: fc_plugin...
13+1 records in
13+1 records out
10240 bytes (10 kB) copied, 5.5461e-05 s, 185 MB/s
ethernet end-host mode on CA
FC end-host mode on CA
n_port virtualizer mode.
INIT: Entering runlevel: 3
touch: cannot touch `/var/lock/s
/isan/bin/muxif_config: fex vlan id: -f,4042
Set name-type for VLAN subsystem. Should be visible in /proc/net/vlan/config
Added VLAN with VID == 4042 to IF -:muxif:-
cp: cannot stat `/isan/plugin_img/fex.bin': No such file or directory
---------------------
enabled fc feature
---------------------
2022 Feb 3 16:29:57 %$ VDC-1 %$ %USER-2-SYSTEM_MSG: CLIS: loading cmd files begin - clis
2022 Feb 3 16:30:01 %$ VDC-1 %$ Feb 3 16:30:00 %KERN-0-SYSTEM_MSG: [ 10.735576] I2C - Mezz absent - kernel
2022 Feb 3 16:30:07 %$ VDC-1 %$ %USER-2-SYSTEM_MSG: CLIS: loading cmd files end - clis
2022 Feb 3 16:30:07 %$ VDC-1 %$ %USER-2-SYSTEM_MSG: CLIS: init begin - clis
System is coming up ... Please wait ...
System is coming up ... Please wait ...
System is coming up ... Please wait ...
System is coming up ... Please wait ...
2022 Feb 3 16:31:10 %$ VDC-1 %$ %VDC_MGR-2-VDC_ONLINE: vdc 1 has come online
System is coming up ... Please wait ...
nohup: appending output to `nohup.out'
2022 Feb 3 16:31:14 switch %$ VDC-1 %$ %USER-2-SYSTEM_MSG: Running in PIO stats mode - carmelusd
Cisco UCS 6200 Series Fabric Interconnect
switch-A login: admin
Password:
Cisco Nexus Operating System (NX-OS) Software
switch-A /license# show feature
License feature:
Name Vendor Version Type Grace Period
------------------------- ------ ------------------------- ------------
ETH_PORT_ACTIVATION_PKG cisco1.0 Counted 120
ETH_PORT_C_ACTIVATION_PKG cisco 1.0Counted 120
switch-A /license# show usage
Feat Name Scope Default Total QuantUsed Quant Subordinate
Quant State Peer Count Comparison Grace Used
---------------------------- ----------------------- ----------
ETH_PORT_ACTIVATION_PKG A20 32 0
0 Not Applicable No Peer 0
ETH_PORT_C_ACTIVATION_PKG A0 0 0
0 Not Applicable No Peer 0
switch-A# showsystem firmware
UCSM:
Running-Vers: 2.2(6e)
Package-Vers: 2.2(6e)A
Activate-Status: Ready
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£100 excluding VAT
