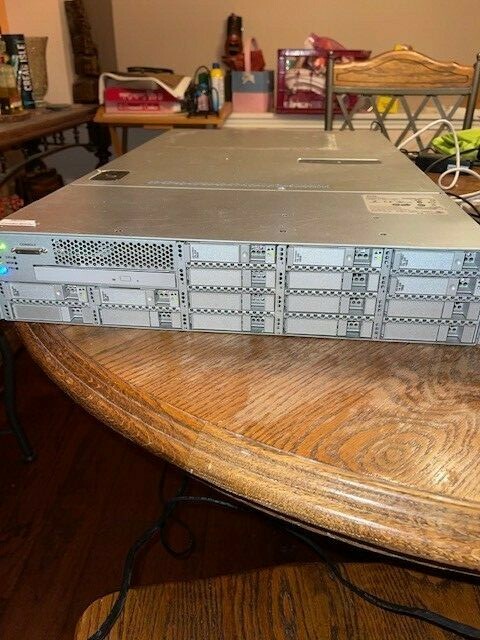

Cisco, UCS C210 M2 Rack-Mount Server 1.5TB 48GB RAM, P/N CSM4-UCS1-50-K9.
- 2 Intel 4 core ES5640 CPUs 2.67GHz
- 48 Gig RAM
- Total 9 Drives 1.5 TB in total
- 2 Power supplies
- 4 port quad 1G Ethernet
- Raid Adapter:
- LSI 9261-8i MegaRAID
Perfect for enthusiasts and lab use. I've used this extensively for learning and various certification practice labs (Kubernetes, Terraform, etc, etc). I'ts time for me to start getting rid of equipment from my home lab, since I now have access to plenty of equipment at work.
Summary of various components are shown below (from ssh to CIMC). ssh credentials: admin/password
ucs-c210-m2 /chassis *# show cpuName Cores Version ------------ -------- 4 Intel(R) Xeon(R) CPU E5640 @ 2.67GHz CPU2 4 Intel(R) Xeon(R) CPU E5640 @ 2.67GHz
ucs-c210-m2 /chassis *# show dimmName Capacity Channel Speed (MHz) Channel Type -------------------- --------------- ------------------- ---------------DIMM_A1 4096 MB 1333 Other DIMM_A2 4096 MB 1333 Other DIMM_B1 4096 MB 1333 Other DIMM_B2 4096 MB 1333 Other DIMM_C1 4096 MB 1333 Other DIMM_C2 4096 MB 1333 Other DIMM_D1 4096 MB 1333 Other DIMM_D2 4096 MB 1333 Other DIMM_E1 4096 MB 1333 Other DIMM_E2 4096 MB 1333 Other DIMM_F1 4096 MB 1333 Other DIMM_F2 4096 MB 1333 Other
ucs-c210-m2 /chassis *# show psuName In. Power (Watts) Out. Power (Watts) Firmware Status Product ID ---------- -------------------- -------------------- -------- ---------- ----------------PSU1 192 650 00.01.04 Present R2X0-PSU2-650...PSU2 0 650 00.01.04 Present R2X0-PSU2-650...
ucs-c210-m2 /chassis *# show storageadapterPCI Slot Info Valid Product Name Serial Number Firmware Package Build Product ID Battery Status Cache Memory Size-------- ---------- ---------------------------------- -------------- ---------------------------------- -------------- -------------- --------------SLOT-5 Yes LSI MegaRAID SAS 9261-8i SV11417247 12.12.0-0149 LSI Logic fully charged 346 MB
ucs-c210-m2 /chassis *# show pci-adapterSlot Vendor ID Device ID SubVendor ID SubDevice ID Product Name ---------- ---------- ---------- ------------- ------------- -------------------------3 0x14e4 0x1639 0x14e4 0x0906 Broadcom 5709 1 Gbps 2...5 0x1000 0x0079 0x1000 0x9263 LSI 9261-8i MegaRAID S...ucs-c210-m2 /chassis *# scope storageadapter SLOT-5ucs-m2 /chassis/storageadapter *# show physical-drivePhysical Drive Number Controller Info Valid Status Manufacturer Model Predictive Failure Count Drive Firmware Coerced Size Type --------------------- ---------- ---------- ---------------------- -------------- -------------- ------------------------ -------------- -------------- -----1 SLOT-5 Yes online SEAGATE ST9146852SS 0 0005 139236 MB HDD 2 SLOT-5 Yes online SEAGATE ST9146852SS 0 0005 139236 MB HDD 3 SLOT-5 Yes online SEAGATE ST9146852SS 0 0005 139236 MB HDD 4 SLOT-5 Yes online ATA Hitachi HTS... 0 C70E 475883 MB HDD 6 SLOT-5 Yes online SEAGATE ST9146852SS 0 0005 139236 MB HDD 7 SLOT-5 Yes online SEAGATE ST9146852SS 0 0005 139236 MB HDD 8 SLOT-5 Yes online SEAGATE ST9146852SS 0 0005 139236 MB HDD 9 SLOT-5 Yes online ATA HITACHI HTS... 0 C50B 151634 MB HDD
ucs-c210-m2# scope chassis
ucs-c210-m2 /chassis# set locator-led on
ucs-c210-m2 /chassis*# commit
ucs-c210-m2 /chassis#
I do want to point out some important information here that you should be aware of:
1) UCS C210 M2 is no longer supported by Cisco.The latest firmware upgrade (HUU) is 1.4.3z09. I've upgraded the UCS to this version. This firmware does not support HTML5 when pointing your browser to the IMC IP. The implication of this is that you would have to:
a) ssh in to the IMC IP and use cli (as shown above) to manage / configure stuff on the base UCS system.
b) KVM is no issue. For KVM do the below:1) install java jre7 on desktop2). copy the jnlp code and modify. copy the code from here: could also use an old browser with flash support and that will allow you to browse to the CIMC IP directly.
Having said that, this is perfect for lab use !
