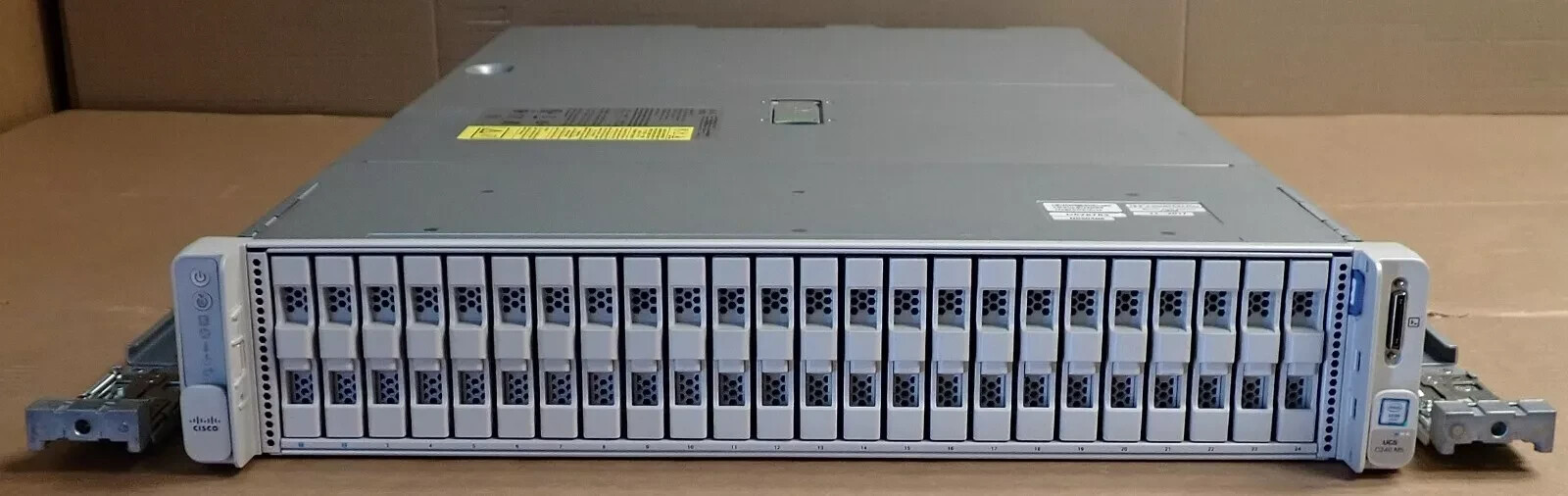

Cisco UCS C240 M5 CTO Server 24x 2.5" BayModel No: UCS C240 M5P/N:UCSC-C240-M5SX
In Good Condition, Full Working OrderTested2 Year WarrantyIncludes Rails
Configure-To-Order CTO - No Processors, No Memory, No Hard Drives Included
Included:

• 1 xCisco UCS C240 M5 CTO Server with:
• 2 x Heatsinks -UCSC-HS-C240M5
• 24 x 2.5" Front Hard Drive Bays(22x SAS/SATA + 2xSAS/SATA/NVMe)
• 2 x 2.5" SAS/SATARear Hard Drive Bays(No Backplane Included)
• 1 x Cisco Riser 1A With 3x PCIe Slots (x8 x16 x8) - UCSC-PCI-1-C240M5
• 1 x Cisco Riser 2C With 3x PCIe Slots (x8 x8 x8) - UCSC-PCI-2C-240M5
• 1 x Trusted Platform Module TPM 2.0 - UCSX-TPM2-002
• 1 x Cisco 12G SAS Host Bus Adapter HBA - Supports up to 26 Drives - UCSC-SAS-M5HD
• 2 x 1050W Power Supplies - UCSC-PSU1-1050W
• 1 x Set Of rack unit (2RU) chassis
• CPU:One or two 2nd Generation Intel Xeon scalable family CPUs
• Chipset:Intel C621 series chipset
• Memory:24 slots for registered DIMMs (RDIMMs), load-reduced DIMMs (LRDIMMs), or through
• silicon via (TSV) DIMMs and support for Intel Optane Persistent Memory (PMem)
• Multi-bit Error Protection:This server supports multi-bit error protection.
• Video:The Cisco Integrated Management Controller (CIMC) provides video using the Matrox G200e video/graphics controller:
• Integrated 2D graphics core with hardware acceleration
• 512MB total DDR4 memory, with 16MB dedicated to Matrox video memory
• Supports display resolutions up to 1920 x 1200 16bpp @ 60Hz
• High-speed integrated 24-bit RAMDAC
• Single lane PCI-Express host interface running at Gen 1 speed
• Power subsystem:Two 1050 W (AC)hot-swappable power suppliesOne power supply is mandatory; one more can be added for 1 + 1 redundancy.
• Front Panel:A front panel controller provides status indications and control buttons.
• ACPI:This server supports the advanced configuration and power interface (ACPI) 6.2 standard.
• Fans:Six hot-swappable fans for front-to-rear cooling
• Infiniband:The InfiniBand architecture is supported by the PCIe slots
• Dedicated RAID controller slot:An internal slot is reserved for the Cisco 12G SAS RAID controller or the Cisco 12G SAS HBA.
• Internal storage devices:
• 24 SFF front-facing SAS/SATA hard drives (HDDs) or SAS/SATA solid state drives(SSDs).

I/O Interfaces:
Rear panel

• One 1Gbase-T RJ-45 management port (Marvell 88E6176)
• Two 10Gbase-T LOM ports (Intel x550 10Gbase-T controller embedded on the motherboard)
• One RS-232 serial port (RJ45 connector)
• One DB15 VGA connector
• Two USB 3.0 port connectors
• One flexible modular LAN on motherboard (mLOM) slot that can accommodate various interface cards

Front panel

• One KVM console connector (supplies two USB 2.0 connectors, one VGA DB15video connector, and one serial port (RS232)

Product Overview

The UCS C240 M5 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 2U
form factor with the 2nd Generation Intel Xeon Scalable Processors, 3200 MHz DDR4 memory, and the new
512GB Intel Optane Persistent Memory Modules (PMem). With this combination of features, up to 9 TB of
memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), up to 6 PCI Express (PCIe) 3.0
slots, and up to 26 internal SFF drives. The C240 M5 SFF server also includes one dedicated internal slot for
a 12G SAS storage controller card.

The C240 M5 server includes a dedicated internal modular LAN on motherboard (mLOM) connector for
installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without
consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.

The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System,
which unifies computing, networking, management, virtualization, and storage access into a single
integrated architecture enabling end-to-end server visibility, management, and control in both bare metal
and virtualized environments.
