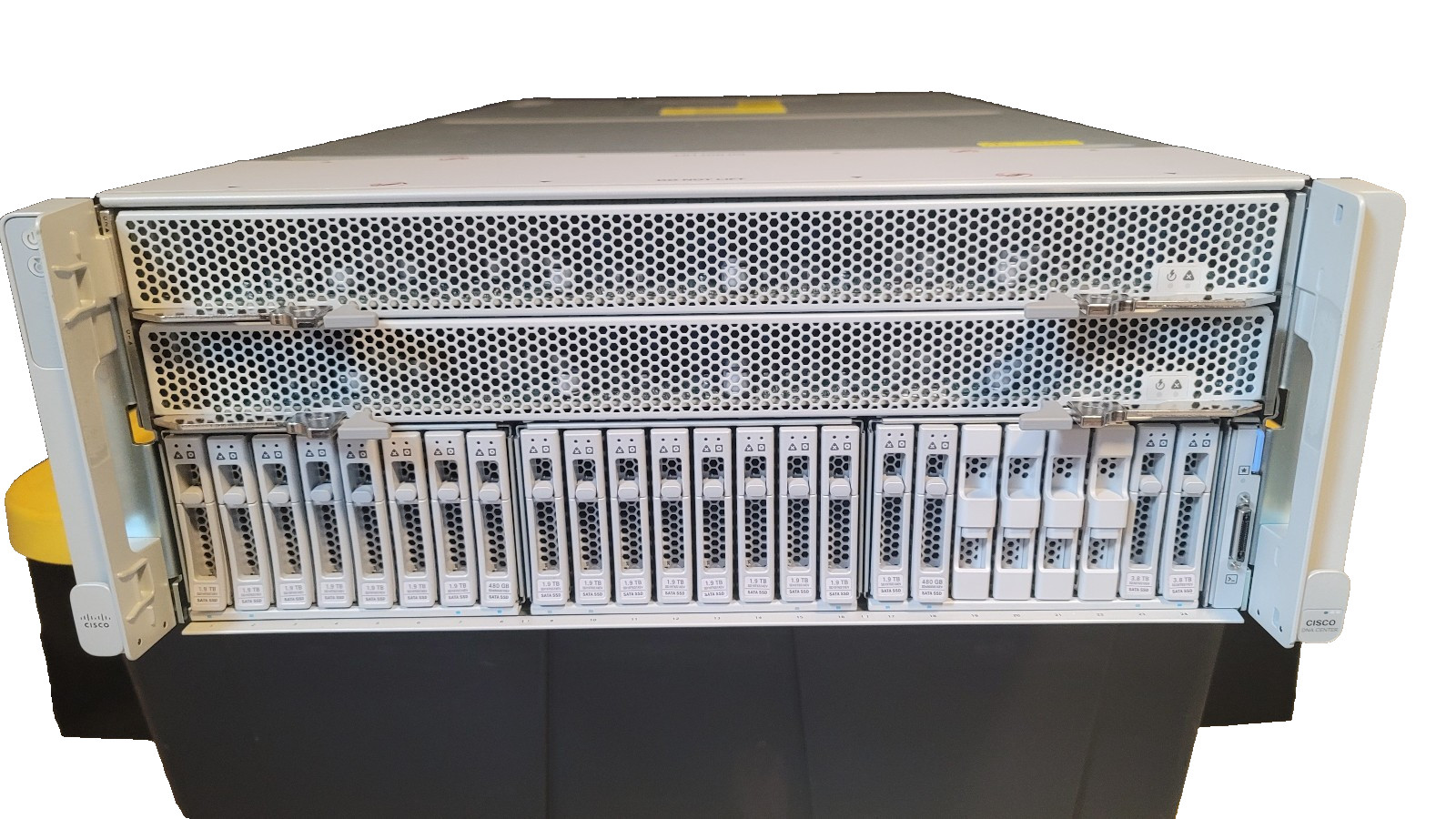

Cisco UCS C480 M5 4U Enterprise Rack ServerUCSC-C480-M5 V04 | 4x Xeon Platinum 8276 | 112 Cores | 12G RAID | 20 SFF Caddies | RailsCisco UCS C480 M5 high-performance 4U enterprise rack server configured with four Intel Xeon Platinum 8276 processors for a total of 112 physical cores and 224 threads.This system is new and has never been deployed or placed into production service. It was originally manufactured/configured as a Cisco DN2 hardware appliance and is being offered as a UCS C480 M5 server platform.System IdentificationManufacturer: Cisco Systems
Model: UCS C480 M5
Cisco Chassis PID: UCSC-C480-M5 V04
Original Appliance PID: DN2-HW-APL V01
Form Factor: 4RU Rackmount
Manufacture Date: 2023-08Processor ConfigurationProcessors: 4x Intel Xeon Platinum 8276
Processor Generation: 2nd Generation Intel Xeon Scalable
Cores per CPU: 28
Threads per CPU: 56
Total Physical Cores: 112
Total Threads: 224
Base Frequency: 2.20 GHz
Maximum Turbo Frequency: Up to 4.00 GHz
Cache: 38.5 MB per processorBoth C480 M5 CPU/memory modules are installed, providing the complete four-socket processor configuration.Memory Architecture48x DDR4 DIMM slots
Supports DDR4 ECC registered memory up to 2933 MT/s, subject to processor and DIMM configuration.NO RAM IS INCLUDED WITH THIS SERVER.The buyer will need to install compatible memory prior to operation.Storage24x front-accessible 2.5-inch SFF drive baysIncluded:20x 2.5-inch SFF drive caddies/sleds
4x drive-bay blanksNO SSDs OR HARD DRIVES ARE INCLUDED.RAID ControllerCisco 12G Modular RAID Controller
4GB Flash-Backed Write Cache
Dedicated PCIe 3.0 RAID controller interface
Supports up to 24 front SAS/SATA HDDs and SSDs
Supports RAID 0, 1, 5, 6, 10, 50 and 60Integrated Networking2x Intel X550 10GBASE-T Ethernet ports
1x dedicated Cisco IMC management Ethernet port
1x private inter-chassis Ethernet portExpansion12x PCI Express 3.0 expansion slotsThe C480 M5 architecture provides six PCIe x8 and six PCIe x16 full-height expansion slots for high-performance networking, storage, accelerator and other compatible PCIe devices.Power4x Cisco 1600W hot-swappable AC power supplies installedIMPORTANT: The installed 1600W power supplies require appropriate 200–240V AC input.Both CPU/memory modules and all four Xeon Platinum 8276 processors are included. CPU modules and power supplies will be removed from the chassis and individually protected for shipping.Management & Rear I/OCisco Integrated Management Controller (Cisco IMC) support
Cisco Intersight-ready platform
VGA video output
RS-232 serial interface
3x rear USB 3.0 ports
Integrated Ethernet and out-of-band management interfacesRack Hardware IncludedIncluded HardwareCisco UCS C480 M5 4U chassis2x CPU/memory modules4x Intel Xeon Platinum 8276 processorsCisco 12G Modular RAID Controller4x 1600W hot-swappable AC power supplies20x 2.5-inch SFF drive caddies/sleds4x SFF drive-bay blanksComplete Cisco rack rail kitSHIPPING INFORMATION: This server will be carefully packaged and shipped via UPS Ground in multiple insured packages for improved protection during transit. The chassis, CPU/memory modules, and rack rail kit will be packaged separately. Both CPU/memory modules containing all four Intel Xeon Platinum 8276 processors are included. Multiple tracking numbers will be provided.
NOT INCLUDED:NO RAM/MEMORYNO SSDs OR HARD DRIVES
NO OPERATING SYSTEM OR SOFTWARE LICENSE
