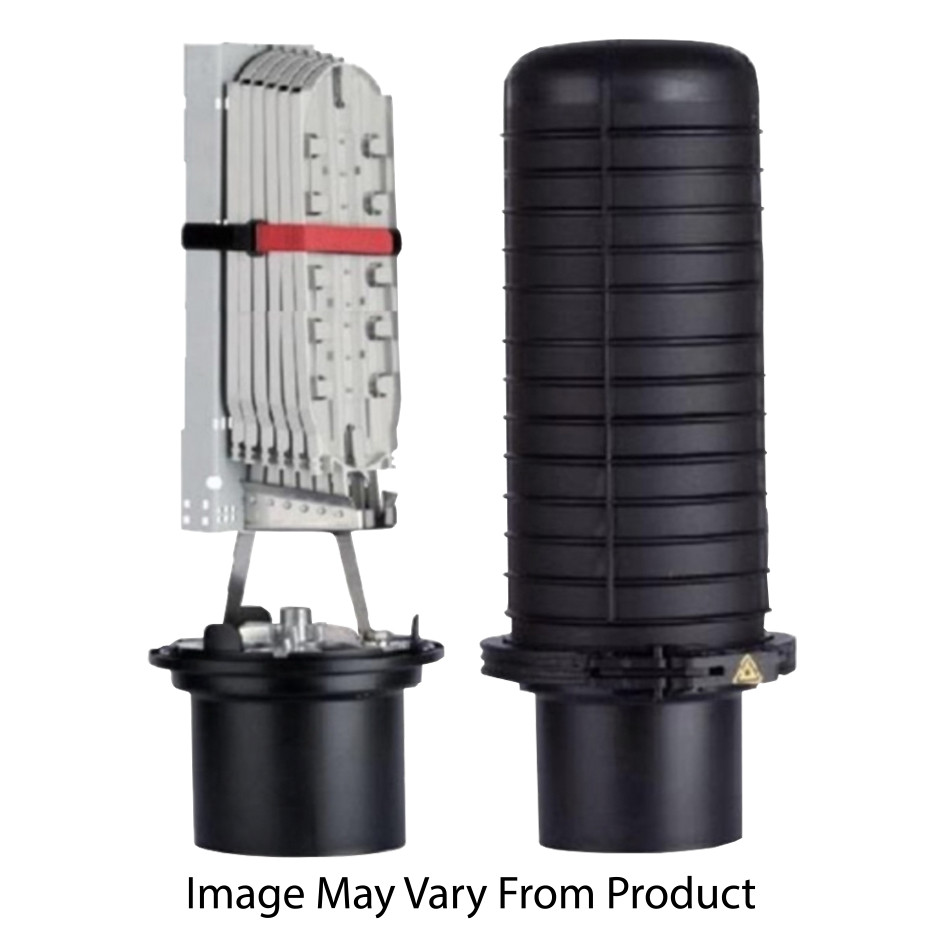

The FOSC450-D6-6-36-1-D6V is a single-ended, gel-sealed fiber optic splice closure designed for splicing feeder and distribution cables in various environments. It is the largest variant in CommScope’s FOSC 450 series, featuring a dome-to-base clamp system and six large round cable ports.

this specific configuration includes:

• Cable Ports: 6 round ports with compressed gel sealing.
• Splice Tray: One pre-installed 36-way heat shrink splice tray.
• Fiber Storage: Includes a D6 standard-sized fiber storage basket.
• Sealing Technology: Re-usable gel seals that adjust to cable size and shape, requiring no special tools or heat shrink.
• Environmental Rating: Suitable for aerial, pedestal, buried, and underground use (up to 5 meters waterhead).
• Dimensions: Approximately 753 mm (29.65 in) in length and 292 mm (11.5 in) in diameter with the clamp.

Capacity and Compatibility

• Splicing Capacity: Supports up to 576 single fusion splices or 1,152 mass-fusion fibers.
• Cable Types: Compatible with common fiber types, including loose tube, central core, and ribbon fiber.
• Modular Support: Works with CommScope's CWDM modules and optical splitter trays.
• Testing: Features a pre-installed flash test valve for pressure testing at 5 psi.
