Commodore 64 / 128 Diagnostic Harness + Diagnostic Cartridge (Plus)

This is afull test harness for yourC64 / 64C / SX-64* / DX-64 / 128 / 128D /128DCR/and it works on PAL&NTSC computers.

New design for easy holding

Superior quality materials : resistors 1% ,Capacitor AVX, industrial pcb gol plated, edge connector real brand new...

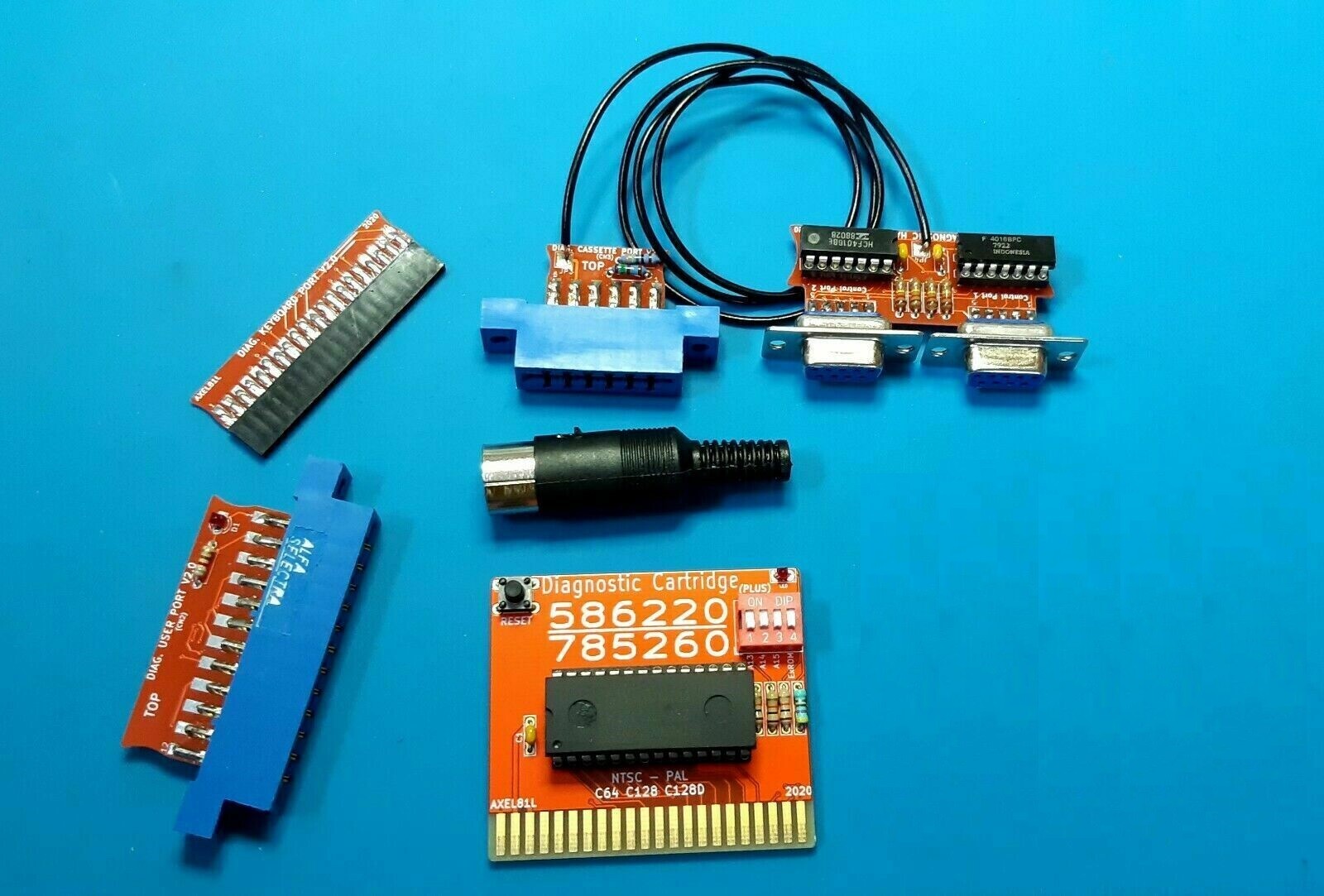

What's in the box?

1) Keyboard dongle for C64 (not for SX64!)

2) Serial Port dongle

3) User port dongle

4) Tape Port dongle

5) Joystick port control dongle

6)Diagnostic Cartridge PLUS (exclusive cartridge made by Axel81l) with reset button

This is a gold plated cartridge with gold finger beveling (check the picture).Unlike the boards with the "tin" style cartridge edges, this version won't damage your cartridge port by wearing and clogging your port.
Remember that for complete keyboard test you needa C128 keyboard dongle. Check the other listen in my Store
DIAGNOSTIC CARTRIDGE(PLUS)
I made this new type of cartridgein order to simplify the use since the classic multiroms require many jumpers, dip switches and puzzle instructionsWhit this cartridge you just have to set the DIP SWITCH!DELUXE+ CONFIGURATION (8 ROMS)

1. C-64 DIAGNOSTIC REV 586220
2. C-64 ROSMOLLER
3. 64 DOCTOR – KEYBOARD TEST
4. C-64 DIAGNOSTIC REV 586220*
5. C-64 DIAGNOSTIC REV 4.1.1
6. 1541 DIAG TEST
7. SID TEST
8. C128/128D DIAGNOSTIC REV 785260

EXTRA NOTE:

• Color of the cable/connector may varybased on availability
• The diagnostics for the C64 SX can be performed except the keyboard test. Dongle not included
