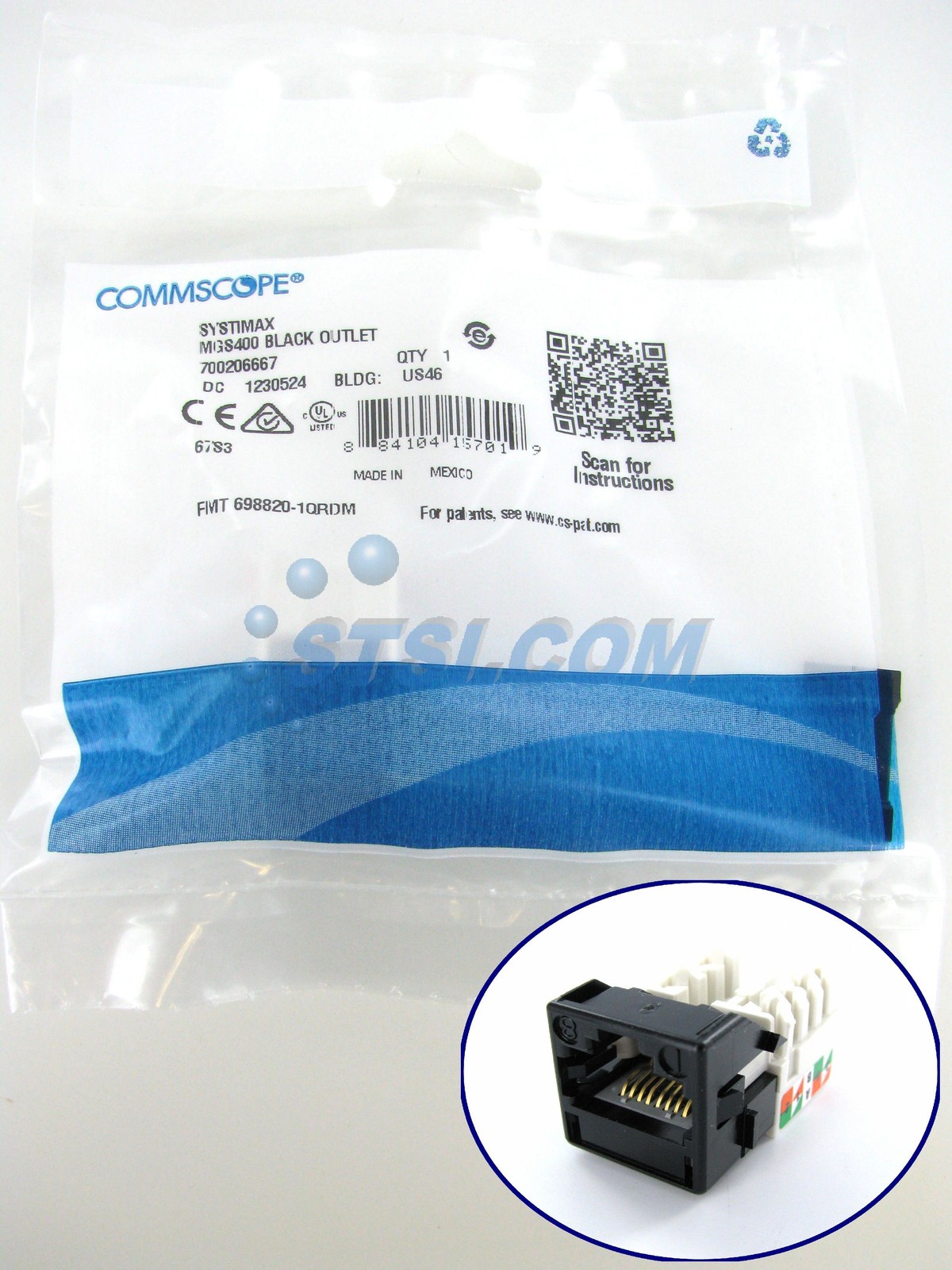

Commscope Systimax MGS400-003 GigaSpeed Cat6 M-Series Modular Jack, Black GigaSPEED XL® M-Series Modular Jack, RJ45, Cat6 Unshielded, BlackSnaps into standard M-series faceplates, surface-mount boxes, consolidation point boxes and modular performance guaranteed to meet or exceed the channel specifications to ISO/IEC 11801 Class E and ANSI/TIA-568-C.2 Category 6

Patented crossing of straddling pair contacts enables efficient alien crosstalk reduction in the channel

Snaps into standard M-series faceplates, surface-mount boxes, consolidation point boxes and modular panels

Mountable either at 90 degrees (straight) or 45 degrees (angled) in M-series faceplate

Universal design and label supports both T568 A & B wiring

IDC connector terminations on rear of base allow quick and easy installation of 22 to 24 AWG cable

Can support network line speeds in excess of 1 Gb/s

Low-profile rear protective strain relief cap, protects against contamination and secures the 30.48 mm | 1.20 in

Height 20.32 mm | 0.80 in

Width 20.32 mm | 0.80 in

ANSI/TIA Category 6

Contact Resistance Variation, maximum 20 mOhm

Contact Resistance, maximum 100 mOhm

Current Rating 1.5 A @ 20 °C

1.5 A @ 68 °F

Dielectric Withstand Voltage, RMS, conductive surface 1500 Vac @ 60 Hz

Dielectric Withstand Voltage, RMS, contact-to-contact 1000 Vac @ 60 Hz

Insulation Resistance, minimum 500 MOhm

Flammability Rating UL 94 V-0

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)

Relative Humidity Up to 95%, non-condensing

Safety Standard cUL | UL

Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)

Cable Type U/UTP (unshielded)

Color Black

Brand GigaSPEED XL® | SYSTIMAX®

Package Quantity 1

Product Type Outlet

Conductor Gauge, solid 22 AWG | 24 AWG

Conductor Gauge, stranded 22 AWG | 24 AWG

Conductor Type Solid | Stranded (7 strands)

Material Type Copper alloy | High-impact, flame retardant, thermoplastic

Outlet/Module Contact Plating Precious metals

Plug Insertion Life, minimum 750 times

Plug Insertion Life, test plug IEC 60603-7 compliant plug

Plug Retention Force, minimum 30 lbf | 133 N

Rear Termination Contact Plating Nickel

Rear Termination Type IDC

Wiring T568A | T568B

RoHS 2011/65/EU Compliant

ISO 9001:2008 Designed, manufactured and/or distributed under this quality management system
