100% ATX 3.1 Compatible
Cooler Master took the initiative and continuously developed our first ATX 3.1 power supply lineup. Compliant with the ATX 3.1 standard and 12V-2x6 connectors, the MWE Gold 1050/1250 V2 ATX 3.1 can fully support the peak power drawn by the 40 series RTX graphic cards and the whole system.
80 PLUS Gold Certified
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 V2 ATX 3.1 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.
Quiet Cooling

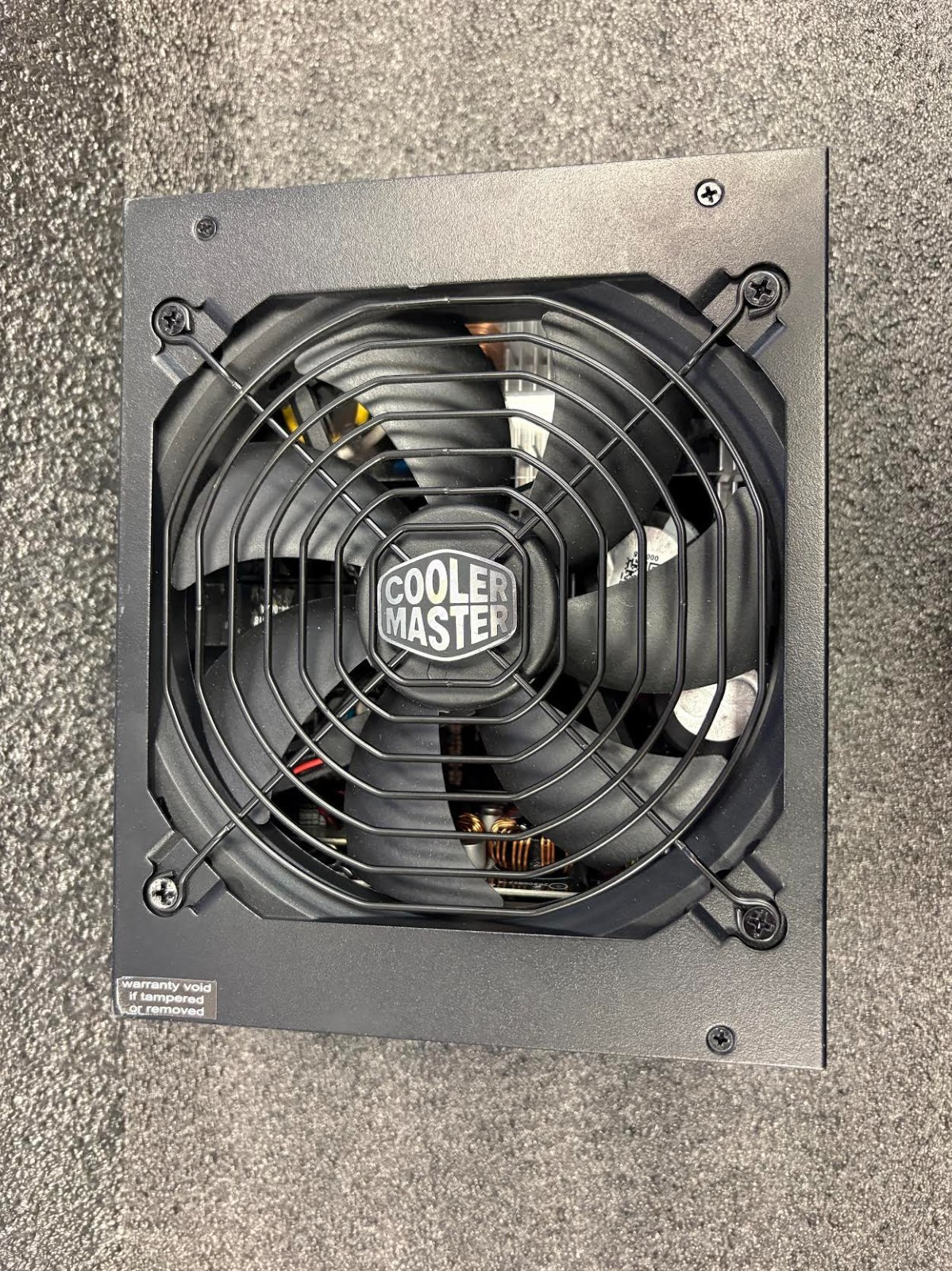

The MWE Gold 1050/1250 V2 ATX 3.1 has been optimized with an 140 mm fan along with an advanced fluid-dynamic bearing (FDB) that delivers quiet and effective cooling with a long lifespan. With the Smart Thermal Control System (STCM), the fan will not spin until at 40% of rated output power to reduce noise.
*The fan curve is tested under ambient temperature of 25 degrees Celsius, and core temperature is related to load.
Industrial-grade Temperature Resilience
The MWE Gold 1050/1250 V2 ATX 3.1 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computers, overclocking, and other high-intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.
Fully Modular Cabling
The fully modular version of the MWE Gold 1050/1250 V2 ATX 3.1 comes with a set of flat black cables that can be customized to each user's individual needs. It's designed for easy cable management so that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow, and aesthetics, thereby improving your system's overall cooling.
PSU Calculator
Need help choosing the right power supply for your system? Try out our easy-to-use, comprehensive PSU calculator.
Specifications
- ModelMPE-A501-AFCAG-3E**
- ATX VersionATX Rev. 3.1
- PFCActive PFC
- Input Voltage100-240V
- Input Current13-6A
- Input Frequency50-60Hz
- Dimensions (L x W x H)180 x 150 x 86 mm
- Fan Size140mm
- Fan BearingFDB
- Efficiency≥90% @ Typical Load
- 80 PLUS Rating80 PLUS Gold
- ErP 2014 Lot 3Yes.
- Operating Temperature0-50°C
- Power Good Signal100 - 150 ms
- Hold Up Time≥16 ms at 100% Load
- MTBF>100,000 Hours
- ProtectionsOVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection
- RegulatoryTUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS
- ATX 24-Pin Connectors1
- EPS 4+4 Pin Connectors1
- EPS 8 Pin Connector1
- SATA Connectors12
- Peripheral 4-Pin Connectors4
- PCI-e 6+2 Pin Connectors3
- 12V-2x6 Connectors1
- SeriesMWE Gold Series
- CategoryAbove 750W
- ModularFully Modular
- 80 Plus EfficiencyGold
- Form FactorATX
