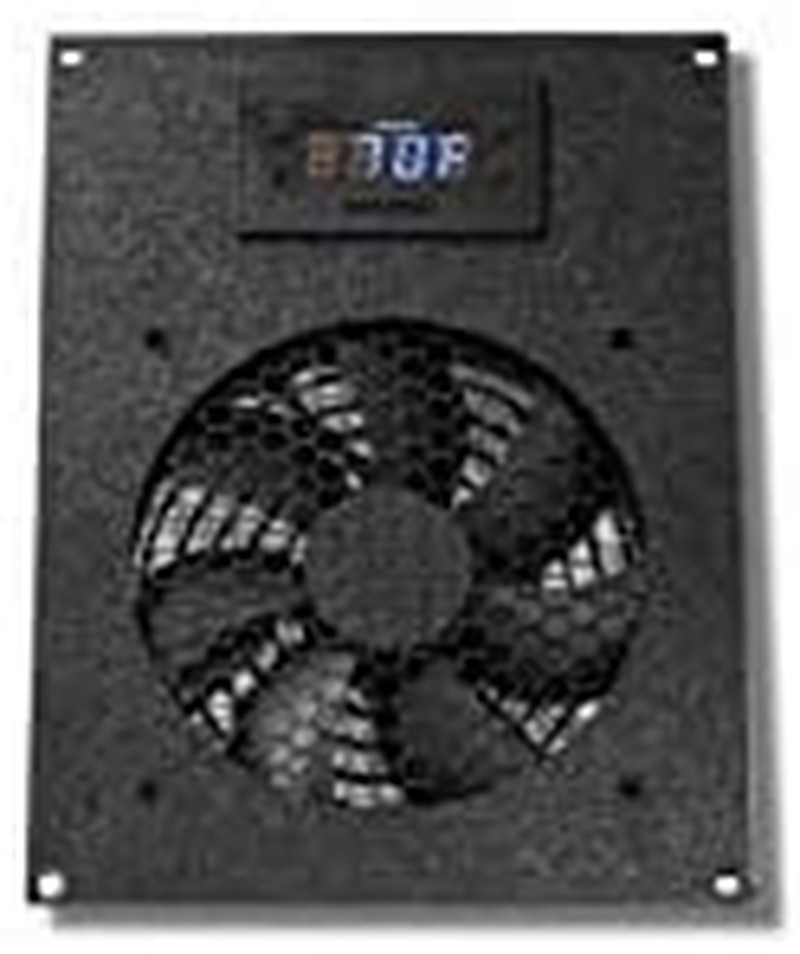

Cooling Fan Kit for Cabinets AV Components 120Mm Pro
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Cooling Fan Kit for Cabinets AV Components 120Mm Pro
Price: US $95.79
Product description

This single fan unit can be used to cool your cabinet, multimedia center, aquarium, home grow op, brewing project and a wide variety of other systems.

These fans move a combined 45 cubic feet (WxHxD) of air per minute (CFM) which is good for 1-2 components (up to 12 cubic feet of space with 1-2 shelves).This is just a general rule of thumb and it assumes you have adequate holes for intake air (if fans are exhausting air outward) and ventilation between shelving.

This unit can be mounted on any side of a cabinet (cutout dimensions below). Insert completed cooler assembly in hole and attach with appropriate screws. Fan can be set to be either an intake or exhaust: simply mount the fan to the bracket pointing in the desired direction before installing (the fan will blow toward you if you are looking at the label).

What is in the Box:

  • (1)Coolerguys 120 x 25mm Ultra Quiet Dual Ball Bearing Fan 3pin / 12V
  • (1) CS 110v AC to 12v DC Power Supply with 4 Pin Molex Adapter
  • (1) Black Acrylic Fan bracket (8.25" x 6.25" x .125")
  • (1) Coolerguys Programmable Thermal Fan Controller with LED Display
  • (1) Black 120mm fan grills
  • (1) Black 120mm Mesh Grill with Honeycomb 6mm holes
  • (8) Fan Case Bolts/Nuts Black
  • (4) 1/2" black Cabinet screw(s) to attach cabinet.
  • (1) Nylon Multi-Purpose 4" Tie Black (1 pk)

This is a kit and some assembly is required.

THERMOSTAT CONTROLLER

Coolerguys Programmable Thermostat Fan Controller with LED Display

  • 24" Thermal Probe
  • 4x 3-pin connector ports
  • Switch between Fahrenheit and Celsius
  • Fully Programmable from 32-211F (0-100C)
  • Handles up to 2A worth of devices

DON'T REMOVE PROBE'S PLASTIC PROTECTION

CONTROLLER MOUNT

Bracket Cutout or External Mounting Option:

  • Controller: 71mm x 40mm x 17mm
  • Cutout: 68mm x 37mm
  • External Bracket: 92mm x 60mm
AIRFLOW

Powerful fan combinations:

  • Single/Double 80mm - 20/40 CFM
  • Single/Double 92mm - 30/60 CFM
  • Single/Double/Triple 120mm - 46/92/138 CFM
  • Single 140mm - 68 CFM

Fans can be mounted either as intake or exhaust systems.

BRACKET MATERIAL

Brackets come in Thermal Plastic or Black Powder Coated Steel to satisfy different quality, durability, and appearance requirements.

BRACKET CONFIGURATIONS - PRO OPTIONS

Assembled Unit Sizes:

  • Single/Dual 80mm: 4.25" x 4.25"/7.87" x 4.25"
  • Single/Dual 92mm: 4.75" x 4.75"/8.87" x 4.75"
  • Single/Dual 120mm: 6.25" x 6.25"/13" x 6.25"
  • Triple 120mm: 17.75" x 6.5" x 1.38"
  • Single 140mm: 7.25" x 7.25" x 1.38"
BRACKET CONFIGURATION OPTIONS

Assembled Unit Sizes:

  • Single 120mm: 8.50" x 6.50" x 1.38"
  • Double 120mm: 15.10" x 6.25" x 1.38"
