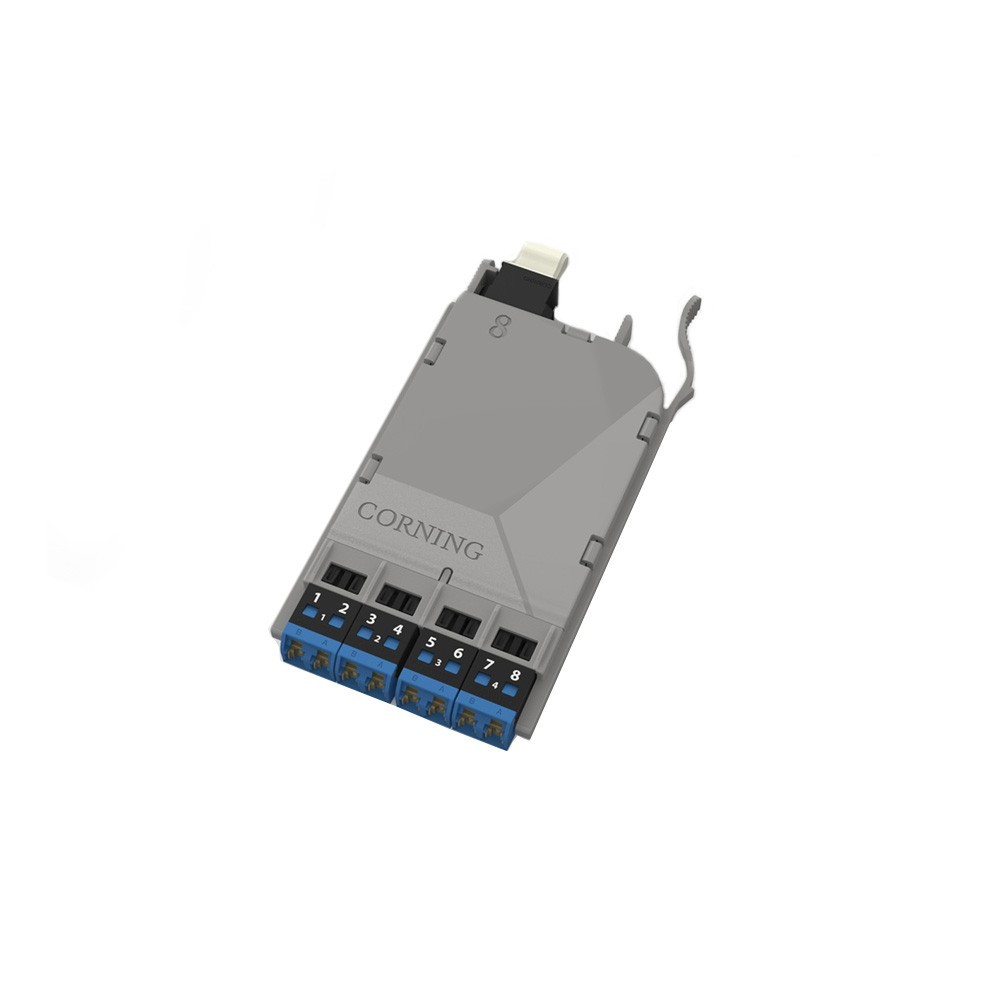

Corning ECM8-UM08-04-E8G-ULL 8F EDGE8 MTP to LC Duplex Module Single-mode (OS) Click Thumbnails to EnlargeDESCRIPTION
• Corning ECM8-UM08-04-E8G-ULLEDGE8 MTP to LC Duplex Module 8 F, Bend-improved single-mode (OS2)
APPLICATIONS
• Data Center LAN/SAN
OPTICAL SPECIFICATION - HARDWARE
• Module Insertion Loss, Max: 0.6 dB
• Wavelengths: 1310 nm / 1550 nm
SPECIFICATIONS - CONNECTOR A
• Connector Type: MTP/MPO (non-pinned)
• Polish: APC
• Ferrule - CONNECTOR B
• Connector Type: LC Duplex
• Polish: UPC
• Ferrule Material: Ceramic
STANDARDS
• Free of hazardous substances according to RoHS 2011/65/EU
PRODUCT SPECIFICATIONSPart Number ECM8-UM08-04-E8G-ULLProduct Type ModuleFiber Category Bend-improved Single-Mode (OS2)Fiber Count 8Adapter Type BackMTP/MPOAdapter Color BackBlackAdapter Color Front BlueAdapter Type FrontShuttered LC DuplexHousing TypePanels and ModulesColorGrayProduct FamilyEDGE8Number of Adapters per Panel 4
