Cradlepoint AER1600 Router w/ MC400LP6 LTE Modem WiFi 4G New Open Box
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Cradlepoint AER1600 Router w/ MC400LP6 LTE Modem WiFi 4G New Open Box
Price: US $39.95

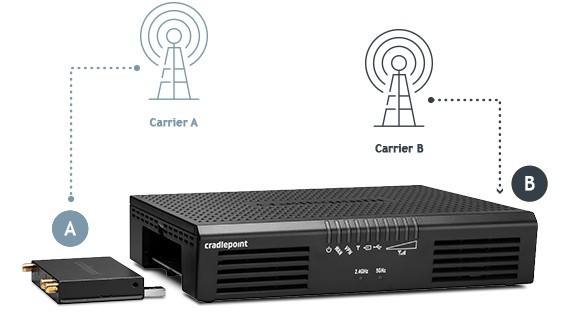

New open-box Cradlepoint AER1600 Micro Branch Router with MC400LP6 multi-carrier LTE Advanced modem. Complete in box.

This unit was received as part of a large batch of equipment, most of which had previously been deployed in the field. This particular unit does not appear to have been deployed, and is in new open-box condition. However, because of the history of the batch, it is possible that the router was previously powered on and/or flashed with configuration settings by an IT firm. The unit may retain existing settings that will need to be reset before use. No guarantee is made regarding the current software configuration or NetCloud account status.

The AER1600 is an advanced edge routing platform designed for branch offices, retail locations, temporary networks, kiosks, IoT applications, and other distributed enterprise environments. It combines wired Ethernet, 4G LTE failover, dual-band WiFi, advanced routing, security features, and cloud management capabilities.

The included MC400LP6 modem provides LTE Advanced connectivity with SIM-based automatic carrier selection for broad North American carrier compatibility. Simply insert a compatible SIM and the modem can automatically detect the carrier and establish a connection, subject to carrier compatibility and service requirements.

AER1600 Features

  • Brand: Cradlepoint

  • Model: AER1600

  • Type: Micro Branch / Advanced Edge Router

  • Condition: New Open Box

  • Includes: MC400LP6 LTE Advanced modem

  • Dual-band, dual-concurrent WiFi

  • WiFi: / multi-carrier capable

  • Cloud-managed through Cradlepoint NetCloud platform

  • WAN Diversity: Wired and wireless WAN

  • 1 Gigabit Ethernet WAN / 4 Gigabit Ethernet LAN, switchable

  • Five 10/100/1000 Ethernet ports total

  • 4G LTE failover

  • WWAN analytics

  • Unified Threat Management (UTM) radio

  • Out-of-band management

  • Designed for PCI Compliance 3.1

  • WAN-to-LAN throughput: 940 Mbps

  • LAN-to-WAN throughput: 947 Mbps

  • Internal 2×2 MIMO WiFi antennas

  • WiFi can be used as WAN

  • Operating Temperature: 32°F to 122°F (0°C to 50°C)

  • Storage Temperature: -4°F to 158°F (-20°C to 70°C)

  • Operating Humidity: 10–85%, non-condensing

  • Storage Humidity: 5–90%, non-condensing

  • Memory: 256 MB DRAM / 16 MB SPI Flash / 256 MB NAND Flash

  • Dimensions: 8.3" × 6.6" × 1.7" (210 × 167 × 44 mm)

  • 1U height for rack mounting

  • Weight: 1 lb. 4.4 oz. (0.58 kg)

  • Certifications: FCC, WiFi Alliance, CE, IC and carrier certifications

MC400LP6 LTE Modem

  • Model: MC400LP6

  • Technology: LTE Advanced / HSPA+

  • SIM-based Auto-Carrier Selection

  • LTE Downlink: Up to 300 Mbps

  • LTE Uplink: Up to 50 Mbps

  • HSPA+ Downlink: Up to 42.2 Mbps

  • HSPA+ Uplink: Up to 5.76 Mbps

  • Active GPS support

  • SMS support

  • Two SMA male antenna antenna connections

  • North American multi-carrier support

LTE Bands: 1–5, 7, 8, 12, 13, 17, 20, 25, 26, 29, 30, 41

The MC400LP6 supports major North American carrier bands, including bands used by Verizon, AT&T, T-Mobile, and Sprint, subject to current carrier compatibility and service availability.

WCDMA/DC-HSPA+ Fallback: Bands 1, 2, 3, 4, 5, and 8

Carrier Aggregation: Supports multiple carrier aggregation combinations including 1+8, 2+2/5/12/13/29, 3+7/20, 4+4/5/12/13/29, 5+2/4/30, 7+3/7/20, 8+1, 12+2/4/30, 13+2/4, 20+3/7, 30+5/12, and 41+41.

MC400LP6 Power:

  • LTE: 23 dBm ±1

  • HSPA+: 23 dBm office networks

  • Retail locations

  • Temporary or pop-up networks

  • 4G LTE failover

  • Out-of-band and sensors

  • M2M / IoT applications

  • Remote connectivity

  • Specialty networks

  • Wired and wireless WAN

  • WiFi and cellular failover

Important: Cradlepoint NetCloud services, subscriptions, licenses, carrier service, and SIM cards are not included unless specifically shown in the photographs. Because this equipment may have previously been configured by an IT firm, the buyer should be prepared to perform a factory reset and configure the unit for their own network and account.

Please review all photos carefully. The item is new open box and appears unused, but it comes from a larger batch of equipment that had been deployed in the field. As a result, previous configuration or software settings may be present. The item is being sold based on its physical condition and included hardware; no guarantee is made regarding any existing cloud account, subscription, licensing, or AER1600, AER1600 Router, Cradlepoint Router, Micro Branch Router, Cradlepoint LTE, MC400LP6, MC400LP6 Modem, LTE Advanced, 4G LTE, LTE Router, Cellular Router, Multi Carrier Router, MultiCarrier, LTE Failover, WAN Failover, WiFi Router, Enterprise Router, Branch Router, Edge Router, Advanced Edge Routing, NetCloud, Cloud Managed Router, SD-WAN, UTM, Gigabit Ethernet, 802.11ac, Dual Band WiFi, Wireless WAN, WWAN, Out of Band Management, IoT Router, M2M, Retail Network, Branch Office, Verizon LTE, AT&T LTE, T-Mobile LTE, Sprint LTE, New Open Box, Network Equipment, E300, R1900 5G, MC400, E3000, R920, R980, E3000-5GB, E300-5GB
