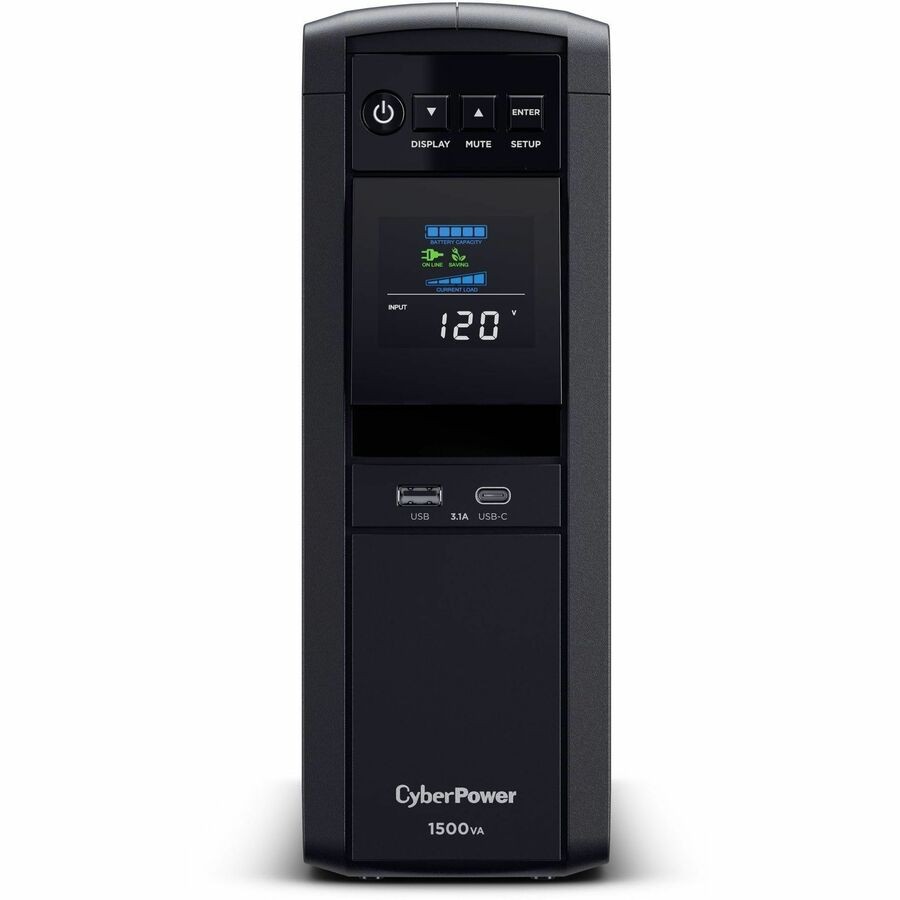

CyberPower CP1500PFCLCD PFC Sinewave UPS Systems Brand: Cyberpower UPC: 0649532609642 Mfr Part #: CP1500PFCLCD

General Information

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1500PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

The CP1500PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.

The CP1500PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500PFCLCD comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

More from the Manufacturer

Technical InformationAVR:YesPlug/Connector Type:NEMA 5-15PReceptacle Type:NEMA 5-15RReceptacle Type:USB Type AReceptacle Detail:12 x NEMA 5-15RReceptacle Detail:2 x USB Type ANumber of Battery & Surge Outlets:6Number of Surge-only Outlets:6Dataline Protection:RJ-45Overload Protection:YesCord Length:5 ftTransfer Time:4 msEMI/RFI Noise Filter:YesEnergy Saving:GreenPower UPS™ Bypass TechnologyFeatures:Audible Alarm

Power DescriptionLoad Capacity (VA):1500 VALoad Capacity (Watt):1000 WInput Voltage:120 V ACInput Voltage Range:88 V AC - 144 V ACOutput Voltage:120 V ACInput Frequency:57 HzInput Frequency:63 HzInput Frequency:50 HzInput Frequency:60 HzOutput Frequency:60 HzWaveform Type:Sine WaveSurge Energy Rating:1445 JCircuit Breaker:YesOutput Power Factor:0.7

Display & GraphicsDisplay:LCD

Power On

Wiring Fault

Battery InformationDC System Voltage:12 V DCNumber of Batteries:2Battery Characteristics:SealedBattery Chemistry:Lead AcidBattery Size:12VBattery Capacity:9000 mAhBackup/Run Time (Full Load):2.50 MinuteBackup/Run Time (Half Load):10 MinuteTypical Battery Recharge Time:8 HourHot Swappable:NoReplaceable Battery:Yes

Physical CharacteristicsColor Family:BlackProduct Factor:Mini-towerWeight (Approximate):24.90 lb

CP1500PFCLCD UPS 1500VA 1000W PFC compatible Pure sine wave

PowerPanel Personal Edition Software

USB Cable

User Manual

Registration Card

Coax Cable

Additional Information:

Active PFC Compatible : Yes

Energy Saving : GreenPower UPS™ Bypass Technology

Energy Star Certified : Yes

UPS Topology : Line Interactive

Battery Quantity : 2

Battery Size : 12 V / 9 Ah

Battery Type : Sealed Lead-Acid Battery

Hot Swappable : No

Replacement Battery Cartridge : RB1290X2 (for serial numbers beginning with CXX)

Replacement Battery Cartridge Quantity : 1

Runtime at Full Load : 2.5 min

Runtime at Half Load : 10 min

Typical Recharge Time : 8 Hours

User Replaceable Battery : Yes

Physical Dimensions - (WxHxD) (cm) : 9.91 x 27.94 x 35.56 (cm)

Physical Dimensions - (WxHxD) (in) : 3.9 x 11.0 x 14.0 (in)

Physical Dimensions - (WxHxD) (mm) : 99 x 279 x 356 (mm)

Weight (kg) : 11.29

Weight (lb) : 24.9

Shipping Dimensions - (WxHxD) (cm) : 19.69 x 36.83 x 44.45 (cm)

Shipping - Dimensions (WxHxD, in) : 7.75 x 14.5 x 17.5 (in)

Shipping - Dimensions (WxHxD, mm) : 196.85 x 368.3 x 444.5 (mm)

Shipping - Weight (kg) : 12.7

Shipping - Weight (lb) : 28.0

Circuit Breaker : 15 A

Cord Length : 5 ft (1.5 m)

Input Frequency Range : 57 Hz - 63 Hz

Input Plug Type : NEMA 5-15P

Input Voltage Range : 88 VAC - 144 VAC

Nominal Input Voltage : 120 VAC

Plug Style : Right Angle - 45° Offset

Automatic Voltage Regulation : Single Boost

On AC WaveForm : Sine Wave

On Battery Frequency : 60 Hz ± 1%

On Battery Voltage : 120 VAC ± 5%

On Battery Waveform : Sine Wave

Outlets - Battery & Surge Protected : 6

Outlets - Surge-Only Protected : 6

Outlets - Total : 12

Outlets - Widely Spaced : 2

Outlet Type COMPUTED : 12 - NEMA 5-15R

Output Power Factor : 0.7

Overload Protection : Internal Circuitry Limiting

Typical Transfer Time : 4 ms

Under/Over-Voltage Correction : +11.5%

USB Charge Port : Yes

USB Charge Port Amperage : 3.1 Amps (Shared)

USB Charge Port Quantity : 2

USB Charge Port Standard : Type A

USB Charge Port Type COMPUTED : 1 Type A

VA : 1500 VA

Watts : 1000 W

EMI/RFI Filtration COMPUTED : Yes

Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible

Surge Suppression (Joules) : 1445 J

EMI/RFI Filtration COMPUTED : Yes

Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible

Surge Suppression (Joules) : 1445 J

Audible Alarms : Battery Mode

Emergency Power Off (EPO) Port : No

HID Compliant USB Port : Yes

LCD : Multifunction LCD

LED Indicators : Power On

Management Cable : USB Cable

Serial Port : 1 Dry Contact

SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205

Software (Free Download) : PowerPanel® Business

Color : Black

Form Factor : Mini-Tower

Material of Construction : Plastic

Operating Elevation : 0 - 10000 ft (0 - 3048 m)

Operating Relative Humidity : 0 - 95 % (non-condensing)

Operating Temperature : 32 - 104 °F (0 - 40 °C)

Storage Temperature : 5 - 113 °F (-15 - 45 °C)

Environmental : RoHS Compliant

Safety : UL1778

CEG Amount : $500000

Connected Equipment Guarantee : Lifetime

Extended Warranty Option : WEXT5YR-U2A

Product Warranty : 3 Year Limited Warranty

Certifications & Standards:

• UL1778
• cUL 107.3
• FCC DOC Class B

Software Included:PowerPanel® BusinessEnergy Star:YesCountry of Origin:PhilippinesEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
