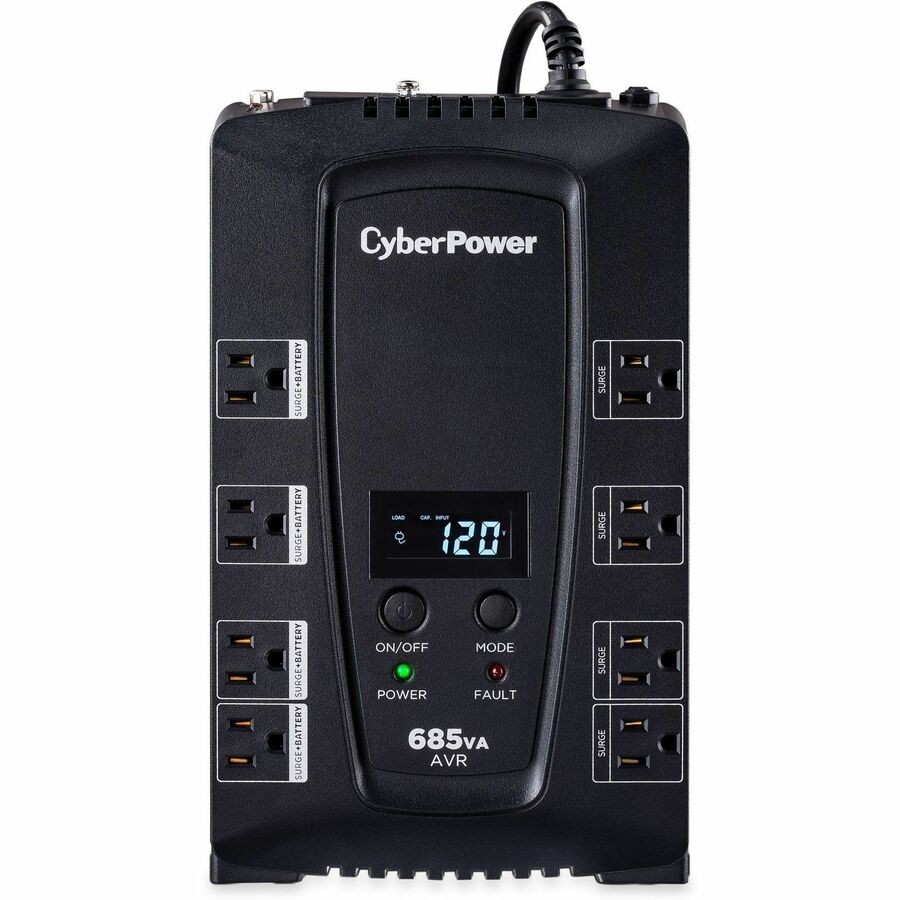

CyberPower Intelligent LCD 685VA/390W Simulated Sine Wave Line-Interactive UPS Brand: Cyberpower UPC: 0649532006878 Mfr Part #: CP685AVRLCD

General Information

A compact UPS with line-interactive topology, the CyberPower Intelligent LCD CP685AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP685AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. Features include a multifunction LCD panel to provide visibility into power conditions and UPS vitals. The CP685AVRLCD comes with a three-year warranty (including coverage of batteries) and a $125,000 Connected Equipment Guarantee.

More from the Manufacturer

Technical InformationPlug/Connector Type:NEMA 5-15PReceptacle Type:NEMA 5-15RReceptacle Detail:8 x NEMA 5-15RDataline Protection:RJ-45Dataline Protection:RG-6Dataline Protection:RJ-11Emergency Power OFF:NoCord Length:6 ftTransfer Time:4 ms

Power DescriptionLoad Capacity (VA):685 VALoad Capacity (Watt):390 WInput Voltage:110 V ACOutput Voltage:120 V AC

Battery InformationNumber of Batteries:1Battery Chemistry:Lead AcidBackup/Run Time (Full Load):2 MinuteBackup/Run Time (Half Load):11 MinuteTypical Battery Recharge Time:8 HourHot Swappable:Yes

Physical Factor:DesktopWeight (Approximate):14 lb

Intelligent LCD CP685AVRLCD 685VA Desktop UPS

User Manual

USB A+B Type Cable

Serial Cable

Warranty Registration Card

Certifications & Standards:

• UL1778
• cUL 107.1
• FCC DOC Class B

Software Included:PowerPanel Personal Edition SoftwareEnergy Star:YesEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)

Energy Saving : GreenPower UPS™ Bypass Technology

Energy Star Certified : Yes

UPS Topology : Line Interactive

Battery Quantity : 1

Battery Size : 12 V / 7 Ah

Battery Type : Sealed Lead-Acid Battery

Hot Swappable : Yes

Replacement Battery Cartridge : RB1270B (for serial numbers that begin with "CT8")

Replacement Battery Cartridge Quantity : 1

Runtime at Full Load : 2 min

Runtime at Half Load : 11 min

Typical Recharge Time : 8 Hours

User Replaceable Battery : Yes

Physical Dimensions - (WxHxD) (cm) : 27.94 x 17.27 x 8.89 (cm)

Physical Dimensions - (WxHxD) (in) : 11 x 6.8 x 3.5 (in)

Physical Dimensions - (WxHxD) (mm) : 279 x 173 x 89 (mm)

Weight (kg) : 5.27

Weight (lb) : 11.62

Shipping Dimensions - (WxHxD) (cm) : 12.7 x 24.89 x 36.32 (cm)

Shipping - Dimensions (WxHxD, in) : 5.0 x 9.8 x 14.3 (in)

Shipping - Dimensions (WxHxD, mm) : 127.0 x 248.92 x 363.22 (mm)

Shipping - Weight (kg) : 5.94

Shipping - Weight (lb) : 13.1

Circuit Breaker : 15 A

Cord Length : 6 ft (1.8 m)

Input Frequency Range : 57 Hz - 63 Hz

Input Plug Type : NEMA 5-15P

Nominal Input Voltage : 120 VAC

Plug Style : Right Angle - 45° Offset

Automatic Voltage Regulation : Single Boost

On AC WaveForm : Sine Wave

On Battery Frequency : 60 Hz ± 1%

On Battery Voltage : 120 VAC ± 5%

On Battery Waveform : Simulated Sine Wave

Outlets - Battery & Surge Protected : 4

Outlets - Surge-Only Protected : 4

Outlets - Total : 8

Outlets - Widely Spaced : 4

Outlet Type COMPUTED : 8 - NEMA 5-15R

Output Power Factor : 0.6

Overload Protection : Internal Circuitry Limiting

Typical Transfer Time : 4 ms

USB Charge Port : No

VA : 685 VA

Watts : 390 W

Coax Protection RG6 COMPUTED : None

EMI/RFI Filtration COMPUTED : Yes

Surge Suppression (Joules) : 1030 J

Coax Protection RG6 COMPUTED : None

EMI/RFI Filtration COMPUTED : Yes

Surge Suppression (Joules) : 1030 J

Audible Alarms : Battery Mode

HID Compliant USB Port : Yes

LCD : Multifunction LCD

LED Indicators : Power On

Management Cable : USB Cable

Software (Free Download) : PowerPanel® Personal

Color : Black

Form Factor : Compact

Keyhole Mounting Slots : Yes

Material of Construction : Plastic

Operating Elevation : 0 - 10000 ft (0 - 3048 m)

Operating Relative Humidity : 0 - 90 % (non-condensing)

Operating Temperature : 32 - 95 °F (0 - 35 °C)

Storage Elevation : 0 - 50000 ft (0 - 15239 m)

Storage Temperature : 5 - 113 °F (-15 - 45 °C)

Environmental : RoHS Compliant

Safety : UL1778

CEG Amount : $125000

Connected Equipment Guarantee : Lifetime

Extended Warranty Option : WEXT5YR-U1B

Product Warranty : 3 Year Limited Warranty
