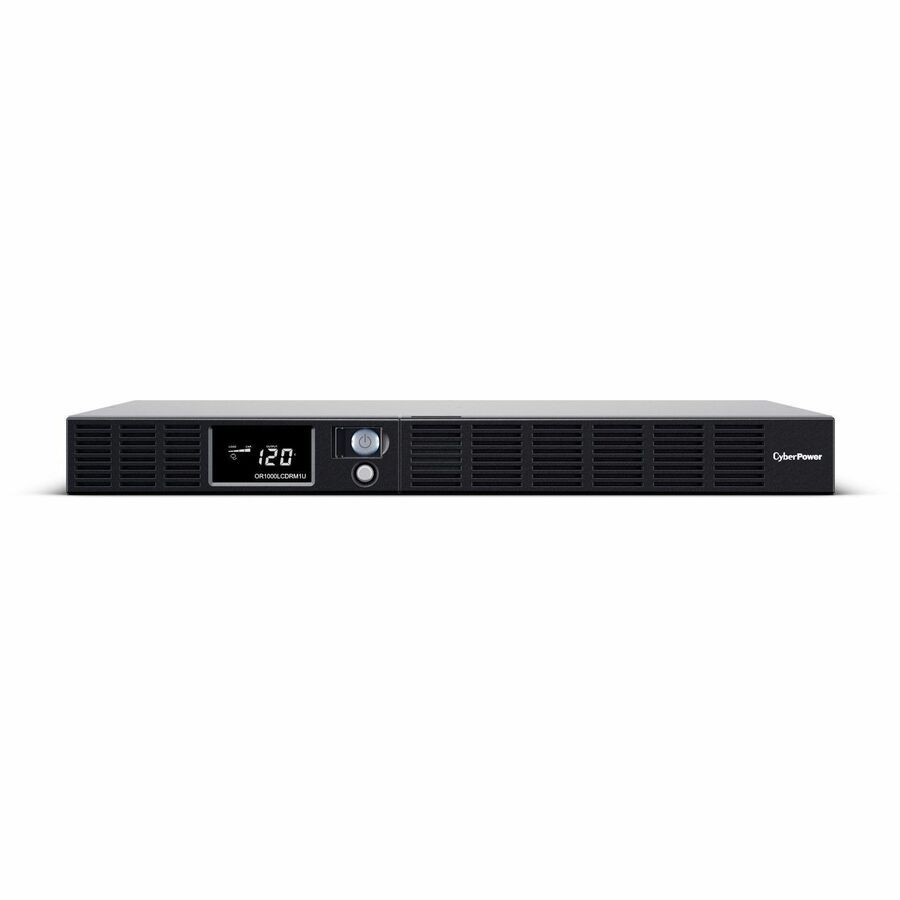

CyberPower OR1000LCDRM1U 1000VA 6-Outlet Smart App LCD UPS Systems Brand: Cyberpower UPC: 0649532715053 Mfr Part #: OR1000LCDRM1U
General Information
A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1000LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1000LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1000LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
- 1000VA/600W Smart App LCD Uninterruptible Power Supply (UPS) System uses simulated sine wave output to protect department and workgroup servers, network devices, and telecom installations without Active PFC power supplies
- EIGHT NEMA 5-15R OUTLETS: Four battery backup & surge protected outlets; two surge protected outlets; INPUT: 15A, NEMA 5-15P straight plug with 10 foot power cord
- MULTIFUNCTION LCD PANEL: Provides runtime in minutes, battery status, power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime; REMOTE MANAGEMENT: Requires optional RMCARD205
- AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the battery.
- 3-YEAR WARRANTY - INCLUDING BATTERIES; dollar 300,000 Connected Equipment Guarantee and FREE PowerPanel Business Edition Management Software (Download)
Technical Information AVR: Yes Plug/Connector Type: NEMA 5-15P Receptacle Type: NEMA 5-15R Receptacle Detail: 6 x NEMA 5-15R Number of Battery & Surge Outlets: 4 Number of Surge-only Outlets: 2 Dataline Protection: RJ-45 Protection Type: Dataline Surge Protection Type: Black Out Protection Type: AC Surge Protection Type: Sag Overload Protection: Yes Bypass Switch: Not Provided Emergency Power OFF: No Transfer Time: 8 ms EMI/RFI Noise Filter: Yes Energy Saving: GreenPower UPS? Bypass Technology Application/Usage: Workstation Application/Usage: Server Application/Usage: Network Device Application/Usage: Telecommunication
?
Power Description Load Capacity (VA): 1000 VA Load Capacity (Watt): 600 W Input Voltage: 120 V AC Input Voltage Range: 90 V AC - 140 V AC Input Frequency: 63 Hz Output Frequency: 60 Hz Waveform Type: Simulated Sine Wave Surge Energy Rating: 1150 J
?
Management Network Management: SNMP Manageable Alarm: Low Battery Alarm: Fault Alarm: Overload Alarm: Battery Mode
On Unit:
LCD Panel:
- Input Voltage
- Output Voltage
- Battery Capacity
- Load Level
- Runtime
- On Battery
- Overload
- Silent Mode
?
Battery Information Number of Batteries: 4 Battery Characteristics: Maintenance-free Battery Chemistry: Lead Acid Battery Size: 6V Battery Capacity: 7000 mAh Backup/Run Time (Full Load): 3 Minute Backup/Run Time (Half Load): 13 Minute Battery Life: 6 Year Typical Battery Recharge Time: 8 Hour Hot Swappable: Yes Replaceable Battery: Yes
?
Physical Characteristics Color Family: Black Product Color: Black Width: 17.1" Depth: 15.3" Rack Height: 1U Form Factor: Rack-mountable Weight (Approximate): 30.20 lb
Smart App Intelligent LCD OR1000LCDRM1U 1000VA UPS User's Manual Rackmount Brackets USB A+B Type Cable Additional Information:
- Energy Saving : GreenPower UPS? Bypass Technology
- Energy Star Certified : Yes
- UPS Topology : Line Interactive
- Battery Quantity : 4
- Battery Size : 6 V / 7 Ah
- Battery Type : Sealed Lead-Acid Battery
- Hot Swappable : Yes
- Replacement Battery Cartridge : RB0670X4
- Replacement Battery Cartridge Quantity : 1
- Runtime at Full Load : 3 min
- Runtime at Half Load : 13 min
- Typical Recharge Time : 8 Hours
- User Replaceable Battery : Yes
- Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 38.86 (cm)
- Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 15.30 (in)
- Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 389 (mm)
- Weight (kg) : 13.7
- Weight (lb) : 30.2
- Shipping Dimensions - (WxHxD) (cm) : 51.44 x 15.88 x 53.98 (cm)
- Shipping - Dimensions (WxHxD, in) : 20.25 x 6.25 x 21.25 (in)
- Shipping - Dimensions (WxHxD, mm) : 514.35 x 158.75 x 539.75 (mm)
- Shipping - Weight (kg) : 17.24
- Shipping - Weight (lb) : 38
- Adjustable Voltage Range : 88 - 144 VAC
- Circuit Breaker : 15 A
- Cord Length : 10 ft (3.0 m)
- Input Frequency Range : 57 Hz - 63 Hz
- Input Plug Type : NEMA 5-15P
- Input Voltage Range : 90 VAC - 140 VAC
- Nominal Input Voltage : 120 VAC
- Plug Style : Right Angle - 45? Offset
- Automatic Voltage Regulation : Single Boost
- On AC WaveForm : Sine Wave
- On Battery Frequency : 60 Hz ? 1%
- On Battery Voltage : 120 VAC ? 10%
- On Battery Waveform : Simulated Sine Wave
- Outlets - Battery & Surge Protected : 4
- Outlets - Surge-Only Protected : 2
- Outlets - Total : 6
- Outlet Type COMPUTED : 6 - NEMA 5-15R
- Output Power Factor : 0.6
- Overload Protection : Internal Circuitry Limiting
- Typical Transfer Time : 8 ms
- USB Charge Port : No
- VA : 1000 VA
- Watts : 600 W
- EMI/RFI Filtration COMPUTED : Yes
- Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
- Surge Suppression (Joules) : 1150 J
- EMI/RFI Filtration COMPUTED : Yes
- Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
- Surge Suppression (Joules) : 1150 J
- Audible Alarms : Battery Mode
- HID Compliant USB Port : Yes
- LCD : Multifunction LCD
- LED Indicators : Power On
- Management Cable : USB Cable
- Serial Port : 1 Dry Contact
- SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205
- Software (Free Download) : PowerPanel? Business
- Form Factor : Rackmount
- Material of Construction : Metal
- Rack Height : 1U
- Operating Elevation : 0 - 10000 ft (0 - 3048 m)
- Operating Relative Humidity : 0 - 95 % (non-condensing)
- Operating Temperature : 32 - 104 ?F (0 - 40 ?C)
- Storage Elevation : 0 - 50000 ft (0 - 15239 m)
- Storage Relative Humidity : 0 - 95% (non-condensing)
- Storage Temperature : 5 - 113 ?F (-15 - 45 ?C)
- Environmental : RoHS Compliant
- Safety : UL1778
- CEG Amount : $300000
- Connected Equipment Guarantee : Lifetime
- Extended Warranty Option : WEXT5YR-U2A
- Product Warranty : 3 Year Limited Warranty
Certifications & Standards:
- FCC Class B certified
- cUL
- UL 1778
Software Included: PowerPanel Business Edition Software Energy Star: Yes Country of Origin: China Environmentally Friendly: Yes Environmental Compliance: Restriction of Hazardous Substances (RoHS)
?
Warranty Limited Warranty: 3 Year Additional Warranty Information: CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge. Directly Connected Equipment Guarantee: $300000 Store Policies
