Manufacturer: CyberPower
Model: CyberPower PFC Sinewave UPS 1500VA, 15A, 120V
Condition: New batteries, refurbished UPS
Part Number: OR1500PFCRT2U
Maximum output: 1050W / 1500VA
Typical backup time at half load: 17 minutes (525 Watts)
Typical backup time at full load: 7.7 minutes (1050 Watts)
Warranty: 1 year full replacement warranty

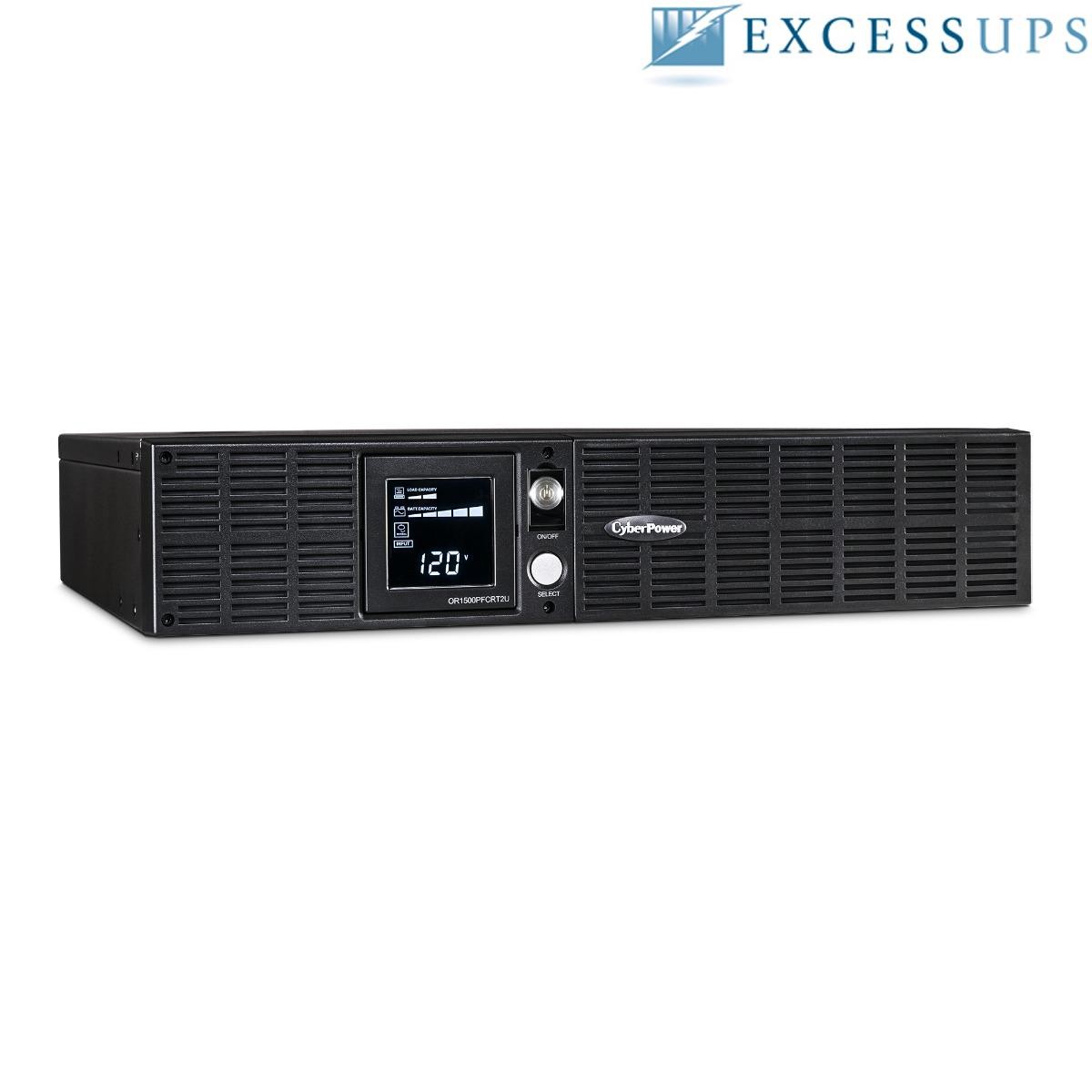

Description: CyberPower OR1500PFCRT2U is a 1500VA / 1050W line-interactive UPS designed for reliable power protection in IT, networking, and workstation environments, featuring pure sine wave output compatible with active PFC power supplies, 120V input via NEMA 5-15P and (8) NEMA 5-15R outlets for full battery backup and surge protection, equipped with Automatic Voltage Regulation (AVR) to correct voltage fluctuations without using battery power, providing up to 17 minutes of runtime at half load and 7.7 minutes at full load, includes hot-swappable and user-replaceable batteries, multifunction LCD display for real-time monitoring, USB and serial connectivity with PowerPanel Business Edition software, RJ11/RJ45 surge protection, and EPO port, built in a compact 2U rack/tower convertible form factor, ideal for small business and server applications, refurbished with new batteries and backed by a 1-year full replacement warranty.
CyberPower PFC Sinewave UPS 1500VA 1050W OR1500PFCRT2U - User Manual
UPS Topology
Line Interactive
Input:
Voltage
120 VAC
Input Voltage Range
88 – 139 VAC
Adjustable Voltage Range
86 – 142 VAC
Frequency Range
60 Hz ± 3 Hz
Plug Type
NEMA 5-15P
Plug Style
Right Angle, 45° Offset Right
Cord Length
10 ft (3 m)
Output:
VA
1500VA
Watts
1050W
On Battery Voltage
120 VAC ± 5%
On Battery Frequency
60 Hz ± 1%
On Battery Waveform
Sine Wave
Output Power Factor
0.7
Automatic Voltage Regulation (AVR)
Yes, +14%
Outlet Type
NEMA 5-15R
Outlets – Total
8
Outlets – Battery & Surge Protected
8
Overload Protection
Internal Circuitry Limiting
Transfer Time
4 ms
Battery:
Runtime at Half Load
17 minutes
Runtime at Full Load
7.7 minutes
Battery Type
Sealed Lead-Acid
Battery Size
12V/7Ah
Battery Quantity
4
Battery Voltage
24V
Hot-Swappable
Yes
User Replaceable
Yes
Typical Recharge Time
10 hours
Replacement Battery Cartridge
RB1270X4G (With serial numbers beginning with ‘GX8’)
RB1270X4C (With serial numbers beginning with ‘GAN’ or ‘GAS’)
Replacement Battery Cartridge Quantity
1
Surge Protection & Filtering:
Surge Suppression
1,470 J
Phone RJ11 / Ethernet RJ45
1-In, 1-Out (10/100)
EMI/RFI Filtration
Yes
Management & Communications:
Multifunction LCD Panel
Yes
HID Compliant USB Port
Yes
Serial Port
Yes
Emergency Power Off (EPO) Port
Yes
Cables Included
USB Cable
LED Indicators
Power On
Wiring Fault
Audible Alarms
On Battery
Low Battery
Overload
Software
PowerPanel® Business Edition
Remote Management Card
None
Physical:
Form Factor
Rack/Tower (Not Included)
Rack Size
2U (Not Included)
Dimensions – W×H×D (in)
17.01 × 3.5 × 15.32 inches
Weight (lbs)
50.6 lbs
Environmental:
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Humidity
0 – 90% (non-condensing)
Maximum Operating Elevation
0 – 10000 feet (0 – 3000 meters)
Storage Temperature
5 – 113 °F (-15 – 45 °C)
Storage Humidity
0 – 95% (non-condensing)
Maximum Storage Elevation
0 – 50000 feet (0 – 15000 meters)
Audible Noise @ 1.5m
48.7 dBA
On Line Thermal Dissipation
95.6 BTU/hr
On Battery Thermal Dissipation
647.4 BTU/hr
