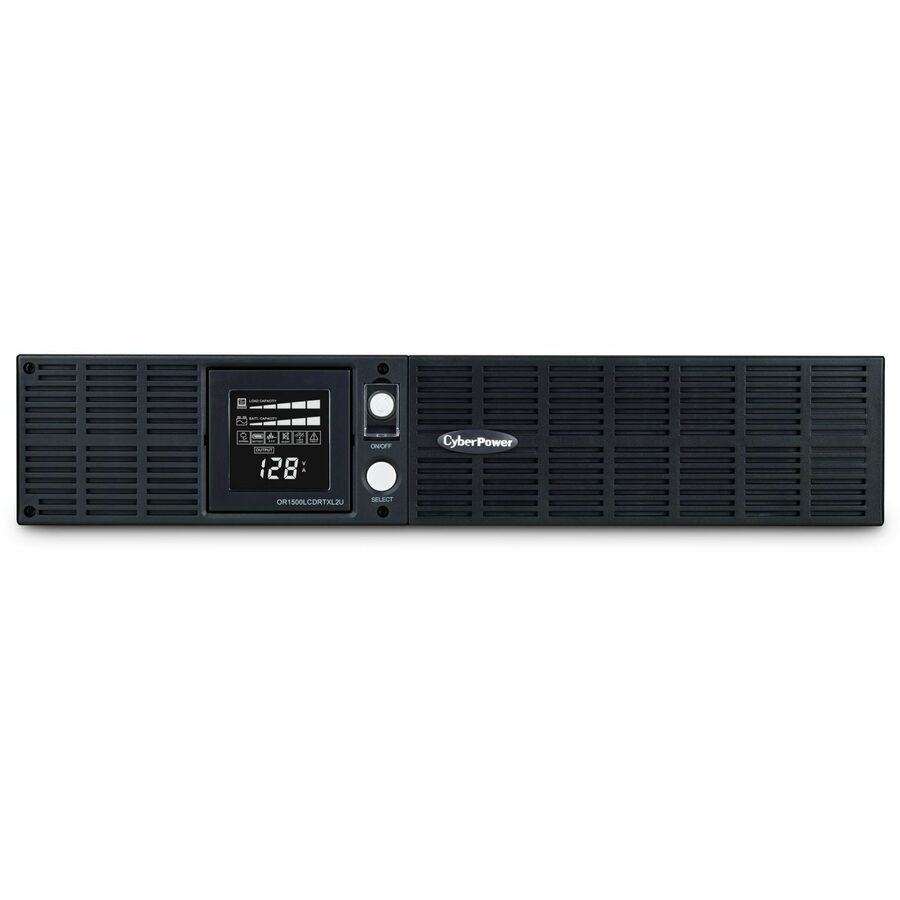

CyberPower Smart App Intelligent LCD 1500VA / 1125W Simulated Sine Wave UPS Brand: Cyberpower UPC: 0649532015023 Mfr Part #: OR1500LCDRTXL2U

General Information

A rack/tower UPS with line interactive topology, the CyberPower Smart LCD OR1500LCDRTXL2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRTXL2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1500LCDRTXL2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

More from the Manufacturer

Technical InformationAVR:YesPlug/Connector Type:NEMA 5-15PReceptacle Type:NEMA 5-15RReceptacle Detail:8 x NEMA 5-15RDataline Protection:RG-6Dataline Protection:RJ-45Dataline Protection:RJ-11

Power DescriptionLoad Capacity (VA):1500 VAInput Voltage:120 V ACOutput Voltage:120 V AC

Battery InformationNumber of Batteries:4Battery Characteristics:Maintenance-freeBattery Chemistry:Lead AcidBackup/Run Time (Full Load):7 MinuteBackup/Run Time (Half Load):18 MinuteTypical Battery Recharge Time:8 Hour

Physical CharacteristicsForm Factor:Rack/TowerRack (Approximate):59.50 lb

Smart App Intelligent LCD OR1500LCDRTXL2U 1500 VA Tower/Rack-mountable UPS

PowerPanel Business Edition Software CD-ROM

Certifications & Standards:

• UL1778
• cUL 107.3
• FCC DOC Class B

Software Included:PowerPanel Business Edition SoftwareEnergy Star:NoCountry of Origin:ChinaEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)

Energy Saving : GreenPower UPS™ Bypass Technology

UPS Topology : Line Interactive

Battery Quantity : 4

Battery Size : 12 V / 7 Ah

Battery Type : Sealed Lead-Acid Battery

Extended Battery Module : BP48VP2U02

Replacement Battery Cartridge : RB1270X4B

Replacement Battery Cartridge Quantity : 1

Runtime at Full Load : 7 min

Runtime at Half Load : 18 min

Typical Recharge Time : 8 Hours

User Replaceable Battery : Yes

Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.89 x 47.75 (cm)

Physical Dimensions - (WxHxD) (in) : 17 x 3.5 x 18.8 (in)

Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 478 (mm)

Weight (kg) : 26.99

Weight (lb) : 59.5

Shipping Dimensions - (WxHxD) (cm) : 55.25 x 26.67 x 60.33 (cm)

Shipping - Dimensions (WxHxD, in) : 21.75 x 10.5 x 23.75 (in)

Shipping - Dimensions (WxHxD, mm) : 552.45 x 266.7 x 603.25 (mm)

Shipping - Weight (kg) : 35.38

Shipping - Weight (lb) : 78.00

Circuit Breaker : 15 A

Cord Length : 10 ft (3.0 m)

Input Frequency Range : 47 Hz - 63 Hz

Input Plug Type : NEMA 5-15P

Nominal Input Voltage : 120 VAC

Plug Style : Straight

Automatic Voltage Regulation : Single Boost

On AC WaveForm : Sine Wave

On Battery Frequency : 60 Hz ± 1%

On Battery Voltage : 120 VAC ± 5%

On Battery Waveform : Simulated Sine Wave

Outlets - Battery & Surge Protected : 8

Outlets - Total : 8

Outlet Type COMPUTED : 8 - NEMA 5-15R

Output Power Factor : 0.8

Overload Protection : Internal Circuitry Limiting

Typical Transfer Time : 4 ms

USB Charge Port : No

VA : 1500 VA

Watts : 1125 W

Coax Protection RG6 COMPUTED : 1 in

EMI/RFI Filtration COMPUTED : Yes

Network Protection RJ45 : 1-in / 1-Out (10/100/1000)

Surge Suppression (Joules) : 1840 J

Coax Protection RG6 COMPUTED : 1 in

EMI/RFI Filtration COMPUTED : Yes

Network Protection RJ45 : 1-in / 1-Out (10/100/1000)

Surge Suppression (Joules) : 1840 J

Audible Alarms : Battery Mode

HID Compliant USB Port : Yes

LCD : Multifunction LCD

LED Indicators : Power On

Management Cable : USB Cable

Serial Port : 1 Serial

SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205

Software (Free Download) : PowerPanel® Business

Color : Black

Form Factor : Rack / Tower

Material of Construction : Metal

Rack Height : 2U

Operating Relative Humidity : 0 - 90 % (non-condensing)

Operating Temperature : 32 - 104 °F (0 - 40 °C)

Storage Temperature : 5 - 113 °F (-15 - 45 °C)

Environmental : RoHS Compliant

Safety : UL1778

CEG Amount : $300000

Connected Equipment Guarantee : Lifetime

Extended Warranty Option : WEXT5YR-U4A

Product Warranty : 3 Year Limited Warranty
