CyberPower UPS Systems BP36V60ART2U Extended Battery Modules
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

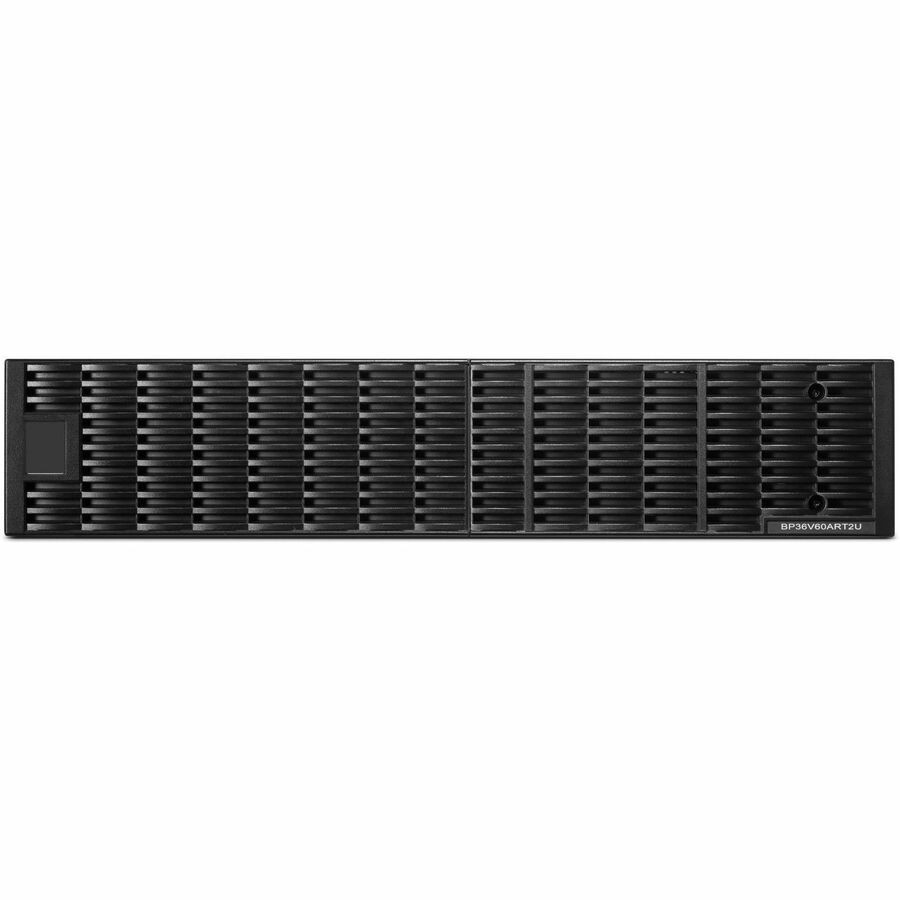

CyberPower UPS Systems BP36V60ART2U Extended Battery Modules
Price: US $950.30
UPS SMART APP XL BATTERY MODULE 1-1.5 KVA ONLINE UPS 20 12V-9AH 2U
  • About Us
  • Payment Info
  • Shipping Info
  • Customer Support
  • response
CyberPower UPS Systems BP36V60ART2U Extended Battery Modules Brand: Cyberpower UPC: 0649532604951 Mfr Part #: BP36V60ART2U

General Information

The CyberPower BP36V60ART2U rack/tower convertible Extended Battery Module (EBM), which extends battery runtimes during power outages, is designed for Smart App Online UPS systems OL1000RTXL2U, OL1000RTXL2UN, OL1500RTXL2U and OL1500RTXL2UN. This EBM takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity.

Technical InformationBattery Characteristics:User ReplaceableBattery Chemistry:Lead AcidHot Swappable:YesMaximum Battery Recharge Time:4 HourBattery Capacity:9000 mAhOutput Voltage:36 V DC

Physical CharacteristicsColor Family:BlackProduct Color:BlackForm Factor:Tower/Rack MountableRack (Approximate):50.60 lb

  • BP36V60ART2U Battery Unit
  • User's manual
  • Registration card
  • Rackmount left rail
  • Rackmount right rail
  • Left hanging bracket
  • Right hanging bracket
  • IEC320 C14 to NEMA 5-15P Power cord
  • 2 x Rackmount ears (Stands)
  • Tie plate
  • 8 x M5X8L black pan head screws
  • 12 x M5X12L black pan head screws
  • 6 x M5X6L silver pan head screws
  • 8 x Plastic washers
  • 10 x Screw hole dust covers
  • 12 x Rubber feet
    • Additional Information:
  • Amperage : 60 A
  • DC Voltage : 36 VDC
  • Battery Quantity : 6
  • Battery Size : 12 V / 9 Ah
  • Battery Type : Sealed Lead-Acid Battery
  • Built-in Charger : Yes
  • Expansion Ready (Daisy-Chain) : Yes
  • Hot Swappable : Yes
  • Replacement Battery Cartridge : (1) RB1290X3R and (1) RB1290X3L
  • Replacement Battery Cartridge Quantity : 1
  • Typical Recharge Time : 4 Hours (0% to 90% charged)
  • User Replaceable Battery : Yes
  • Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.89 x 42.93 (cm)
  • Physical Dimensions - (WxHxD) (in) : 17 x 3.5 x 16.9 (in)
  • Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 429 (mm)
  • Weight (kg) : 22.95
  • Weight (lb) : 50.6
  • Shipping Dimensions - (WxHxD) (cm) : 54.61 x 24.77 x 57.15 (cm)
  • Shipping - Dimensions (WxHxD, in) : 21.5 x 9.75 x 22.5 (in)
  • Shipping - Dimensions (WxHxD, mm) : 546.1 x 247.65 x 571.5 (mm)
  • Shipping - Weight (kg) : 29.71
  • Shipping - Weight (lb) : 65.5
  • Circuit Breaker : 60 A
  • Nominal Input Voltage : 36 VAC
  • USB Charge Port : No
  • Color : Black
  • Material of Construction : Metal
  • Mounting Hardware : Yes
  • Rack Height : 2U
  • Operating Elevation : 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity : 0 - 90 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
  • Storage Elevation : 0 - 50000 ft (0 - 15239 m)
  • Storage Relative Humidity : 0 - 95% (non-condensing)
  • Storage Temperature : 5 - 113 °F (-15 - 45 °C)
  • Models : OL1000RTXL2U, OL1000RTXL2UN, OL1500RTXL2U, OL1500RTXL2UN
  • UPS Models : OL1000RTXL2U, OL1000RTXL2UN, OL1500RTXL2U, OL1500RTXL2UN
  • Environmental : RoHS Compliant
  • Safety : UL1778
  • Extended Warranty Option : WEXT5YR-BP1
  • Product Warranty : 3 Year Limited UPS:

    • OL1000RTXL2U
    • OL1000RTXL2UN
    • OL1500RTXL2U
    • OL1500RTXL2UN

    Certifications & Standards:
    • UL1778
    • CSA C22.2 NO.107.3-05
    • FCC DOC Class A
    Environmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
