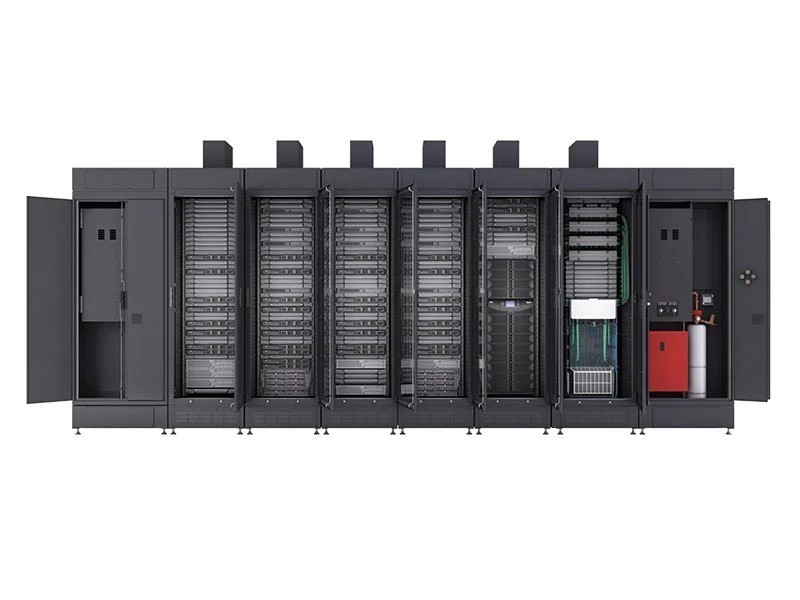

Vertiv SmartRow ,Data Center with Integrated Fire Suppression System 40KW
Description:This is a cancelled Project of complete 10 Cabinet DATA Center systemto include the itemsbelow , Power , Cooling, Cables , PDU , Fire suppressionand more.Items are New in original packaging.
We have more than one sets of (10 cabinets ) contactus if you need more than 10 cabinets(10x) VERTIV 42 Cabinet (10) IT cabinets with two
(2x) 20amp, 3phase , Rack mount PDU per cabinetHeight 42U / 2000mm, Width 800mm, Depth 1200mm• Includes two factory installed Vertical Cable management Fingers.
(2x) 40kW UPS systems.
(2 per DCR System) 40kVA/kW Liebert EXM UPS, model 47SA040EACM, with the following features:
System Input Voltage of 208/120V, 3 Phase, 4 wire plus ground
System Output Voltage of 208/120V, 3 Phase, 4 wire plus ground
Single Input Configuration
One (1) lntelliSlot Unity Dual Protocol Card; P/N: IS-UNITY-DP; Monitoring and configuration of Vertiv
products and environmental sensors through stand-alone Web UI or integration with TrellisTM, Liebert Nform,
LIFETM Services. Supports third-party management systems using SNMP, Modbus or BACnet.
One (1) IS-RELAY Relay Contact Card
Unity Power Factor Rating
Load Power Factor Support - Supports loads 0.5 lagging to unity without derating
Energy Optimization Mode (Eco-Mode)
65kAIC Rating - Provides interrupting rating and labeling of 65kA
Active Power Factor Corrected IGBT Input Converter
PWM transistorized (IGBT) inverter
Continuous Duty Static Bypass Switch
Input Contacts - Dry contacts are available for functions including monitoring external breakers, on-generator
signal, and other functions
Output Contacts - Dry contacts are available for functions including a permissive signal to maintenance
bypass SKRU, to trip external breakers, and other functions
Generator Load Control - Suppresses battery charging reducing power demand by an external signal. Shifts
unit from Eco Mode to double conversion (if applicable), and synchronizes the inverter output with the bypass
Automatic retransfer - Provides return to inverter power after an overload
DSP based controls - Provides digital control of power conversion and system operation
Backlit LCD display - Monitors power conversion, UPS operation and utility conditions. Deviations are logged
for Charging/Battery Load Test
Top-and-bottom-entry cable access
Front only service access
Local Emergency Power Off (EPO)
IP 20 enclosure
Casters and leveling feet
UL and cUL Listed to UL Standard 1778 4th Edition
Liebert EXM Factory Services Certified Test Report
9 min runtime @40 kVA, 1 x Internal String of ENERSYS HX205-FR Batteries(2x) Maintenance Bypass Cabinet(s), model 47MBE32CC0R with the following features:
• 3 Switching Devices (BIB,MBB,MIB)
• 175 Amp Breaker Trip Rating
• Key Interlock (SKRU)
• Cabinet Mounted Right Attached to Module with connecting cables factory supplied
• 200 MM - 7.9 inches Frame Size
• Front Access service desig(20 per DCR System (10 per Distribution Panel)) 3 Pole, 20Amp SqD Bolt On Breakers
**(2) Liebert PDX environmental control system
• 208V / 3ph/ 60Hz, nominal 5 ton down flow, water/glycol
cooled unit with top electrical and piping connection.
• The indoor cooling unit utilizes high energy efficiency fan
& compressor technology to deliver the industry's leading
net capacity per square foot.
• Real time optimized cooling unit performance, using the
industry leading Liebert iCOM microprocessor with large
graphic display.AIR FLOW PLENUMS*(12 per DCR System) DCR air flow management plenumsPre -engineered to provide both acoustic and thermal
insulation for the system.
Fire suppression Cabinet
(1) Cabinet Fike ECARO Control UL Listed Fire Detection and Suppression
System comes furnished with the following features:
o SHP Control Panel for the fire detection & suppression
controls
o One Relay Module, Battery Assembly (12) AH
o Duct Detectors and Duct Detector Sample Tubes to
actuate the detection & suppression system in the case of
combustion.
o One Horn and strobe
o Manual release
o System abort switch
o Caution sign, flashing light sign, manual discharge sign,
and system abort sign
o 35 lb. agent storage container with mounting bracket and
solenoid
o 1" Nozzle with associated pipe, fittings and mounting
assemblies
o 30 lbs. of ECAR0-25 clean agent manufactured by DuPont
to suppress a fire without damaging your equipment or
making a mess after dispersion
Load Distribution Center(s)
Load Distribution Center(s)(2) 3PH; 225A, 208/120VAC, SWire, 42 Pole,
Primary & Redundant load distribution centers with 225A local main
shunt trip breaker
