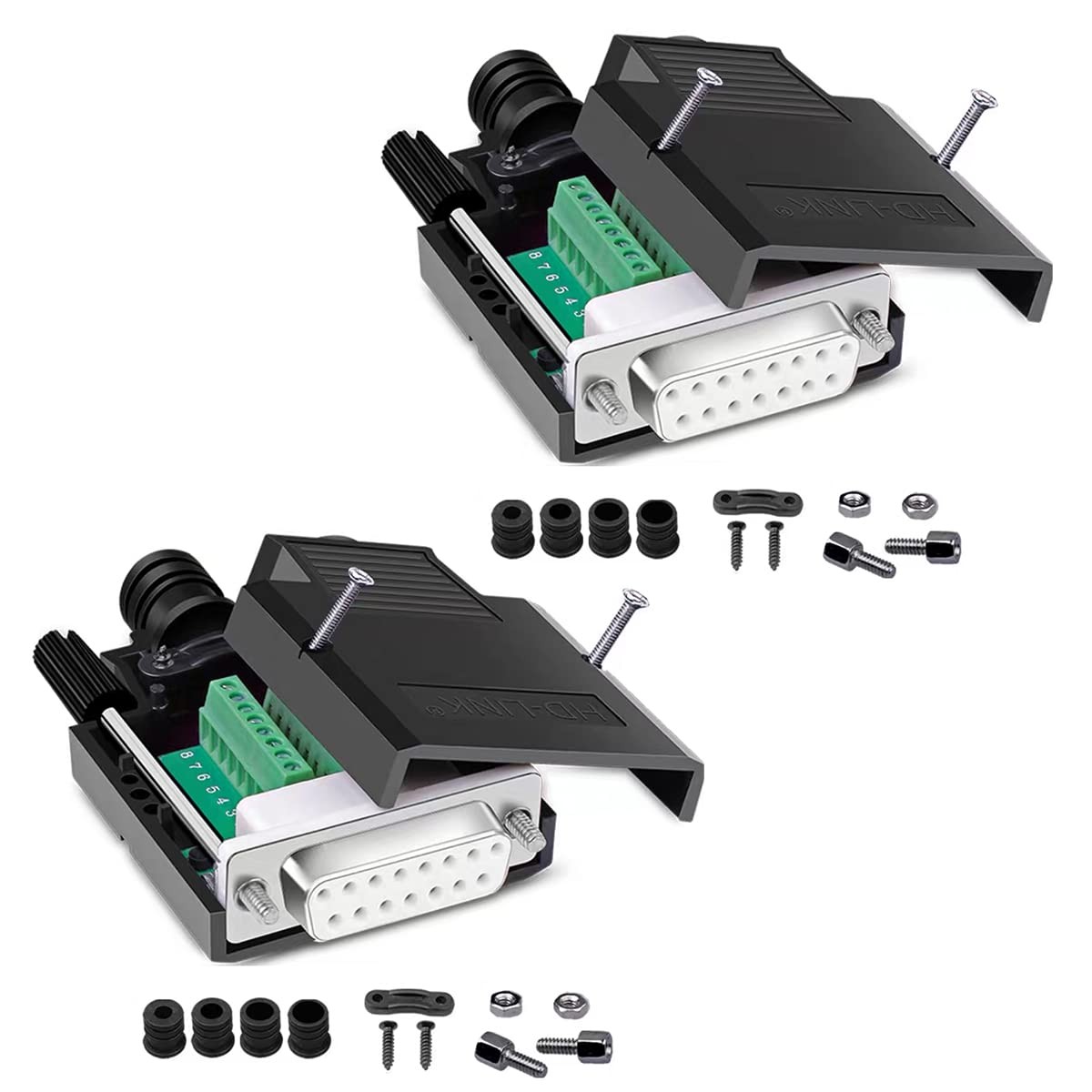

2Pcs DB15 Solderless Female RS232 D-SUB Serial Adapters, 16mm thinner 15 Pin Port Terminal Solderfree Breakout Board Connector with Case Accessories🛍 Product Details

This DB15 Solderless Female Adapter Connector to facilitate commissioning equipment of project. The wire range of the 15 Positions Screw Terminal Block is 26-16AWG. All-copper gold-plated DB15 joints, anti-oxidation, better. Terminal pitch is 2.54mm, screw hole diameter is 2mm. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications.
Technical Specifications:
Name: Thinner DB15 solderless module
Plug Type: Female
Connector Material: Pure copper gold plated joint
Material: Copper
Housing Material: Environmentally friendly PP engineering materials
Shell Type: Folding snap-on
Cable Specification: 26-16 AWG
Rated Voltage: 24V
Rated Current: 2A
Resistance: 30mΩ
Torque: 0.2Nm (1.7Lb-In.)
Opening Size (cable port): 10.5mm/0.41inch
Thickness: 16mm/0.63inch
Size: 55 mm×43 mm×16 mm/ 2.17inch×1.69inch×0.63inch
Package Includes:
2 PACK DB15 Female Solderless Connector
2 PACK 5mm,6mm,7.5mm,8.5mm tail pipe

🌟 Key Features

• 【Thinner Design】Only 16mm. You can use it in smaller and narrower spaces without worrying won’t fit.
• 【Durable】Copper cored gold-plated joints are used for durability, plugging resistance and good . It adopts all-copper environmental protection copper terminal, which has good transmission.
• 【Reliable】Each product is equipped with a crimping ring, 5mm, 6mm, 7.5mm, 8.5mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor .
• 【Easy to Use】No soldering required. Only needs a small screwdriver and a wire stripper to install. The signal ports are clearly labeled on both sides of the board for quick wiring.
• 【Wildly Applications】The adapter can connect all kinds of serial devices, such as PLC controllers, touch screens, programmers, data converters, servo motors, automatic control equipment, industrial control equipment, cash register, tax control machine, computer, etc.
