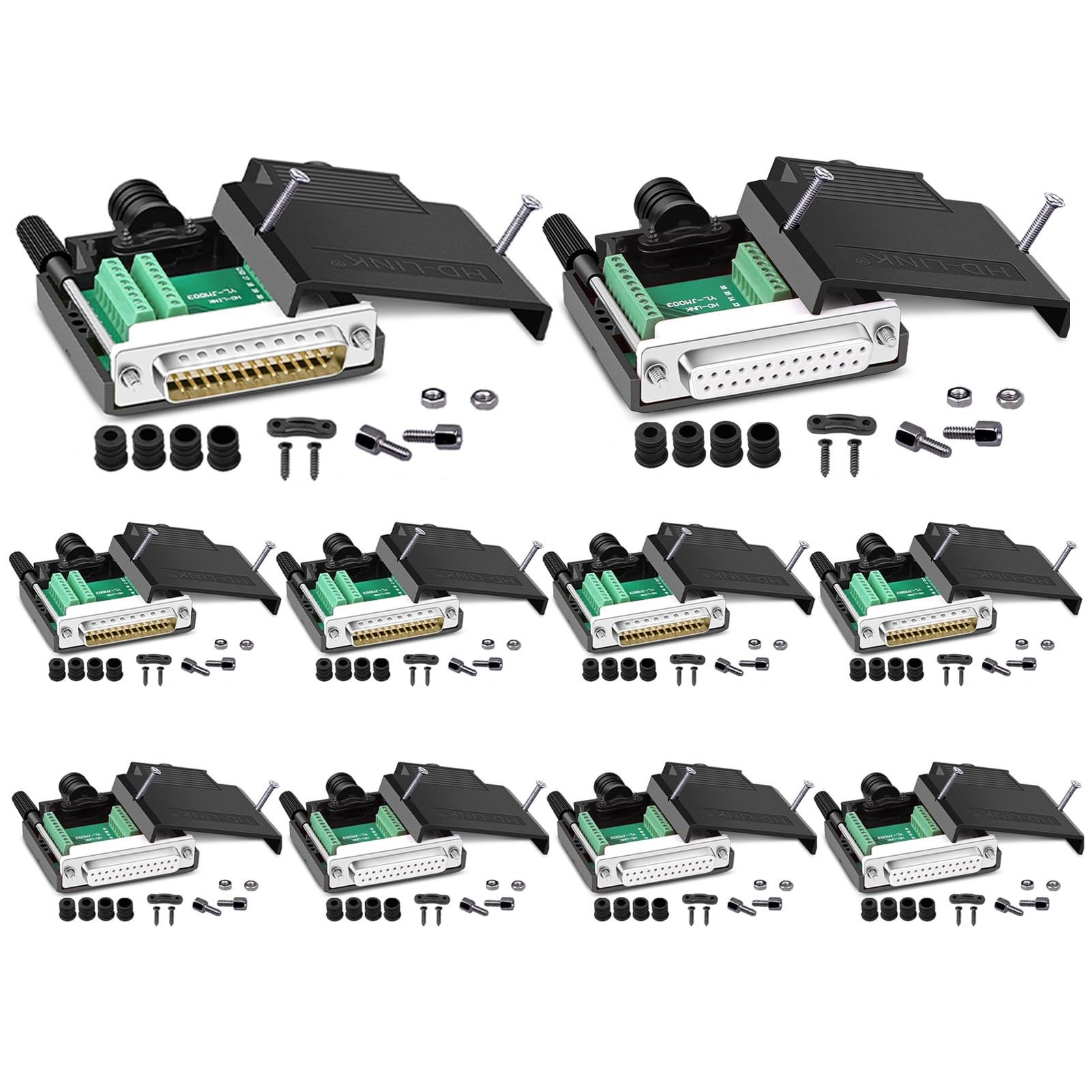

Brand New DB25 Solderless Connector, 10PCS Set, Includes 5 Male & 5 Female, 16mm Thin, RS232 Serial Port Adapter Breakout Board, for Tax Control Machine, Digital Camera, PLC etc.
Manufacturer model: ANMBEST_MD538

• SOLDERLESS: No welding required, 128 type environmental protection copper terminal design, no need for soldering iron and cumbersome tools, easy wiring.

• SCREW LOCK: The shell is locked with screws and nuts, which can avoid the disadvantages of not closing the shell tightly or large gaps.

• REDUCE ERRORS: The terminal block area is clearly marked making proper termination virtually foolproof.

• WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.

Description

These DB25 Male Female Solderless Connectors are used to terminate the connection type of a cable and facilitate commissioning equipment of project. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical Specifications:
Name: 16mm Thin DB25 solderless module
Plug type: male, female
Accessories: housing, screw, card line buckle
Connector material: pure copper plated joint
Contact Material: Copper
Housing material: environmentally friendly PP engineering materials
Shell type: Screw lock
Pin Pitch: 3.81mm/0.15in
Cable Specification: 28-16 AWG/0.15-1.5mm2
Torque: 0.2Nm (1.7Lb-In.)
Opening size (cable port): 10.5mm/0.41″
Thickness: 16mm/0.63″
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 60 mm×57 mm×16 mm/ Package includes:
5 x DB25 16mm Male Solderless Connectors
5 x DB25 16mm Female Solderless Connectors
10x cable pressing plate
20x Lock screws
20x Long bolts
10x 5mm tail pipe
10x 6mm tail pipe
10x 7.5mm tail pipe
10x 8.5mm tail pipe

•
