Product name : DB9 Male adapter;
Total Size : 46 x 34 x 20mm/1. 8" x 1. 2" x 0. 71"(L*w*h)
Fixing Hole diameter : 3mm; fixing Hole center distance : 6mm/0. 24 inch
Material : metal Nickel plated copper needle, electric part; color : black, Green
Weight : 27G
DB9 male / female connector to screw terminals. High quality RoHS compliant assembly.
Wire range: 26-16AWG
Connect type: male with Case
Material:
Base: copper base and plastic part
Torque: 0.2Nm (1.7Lb-In.)
Pin header and cage: Brass
Case: ABS + PC

Package included:

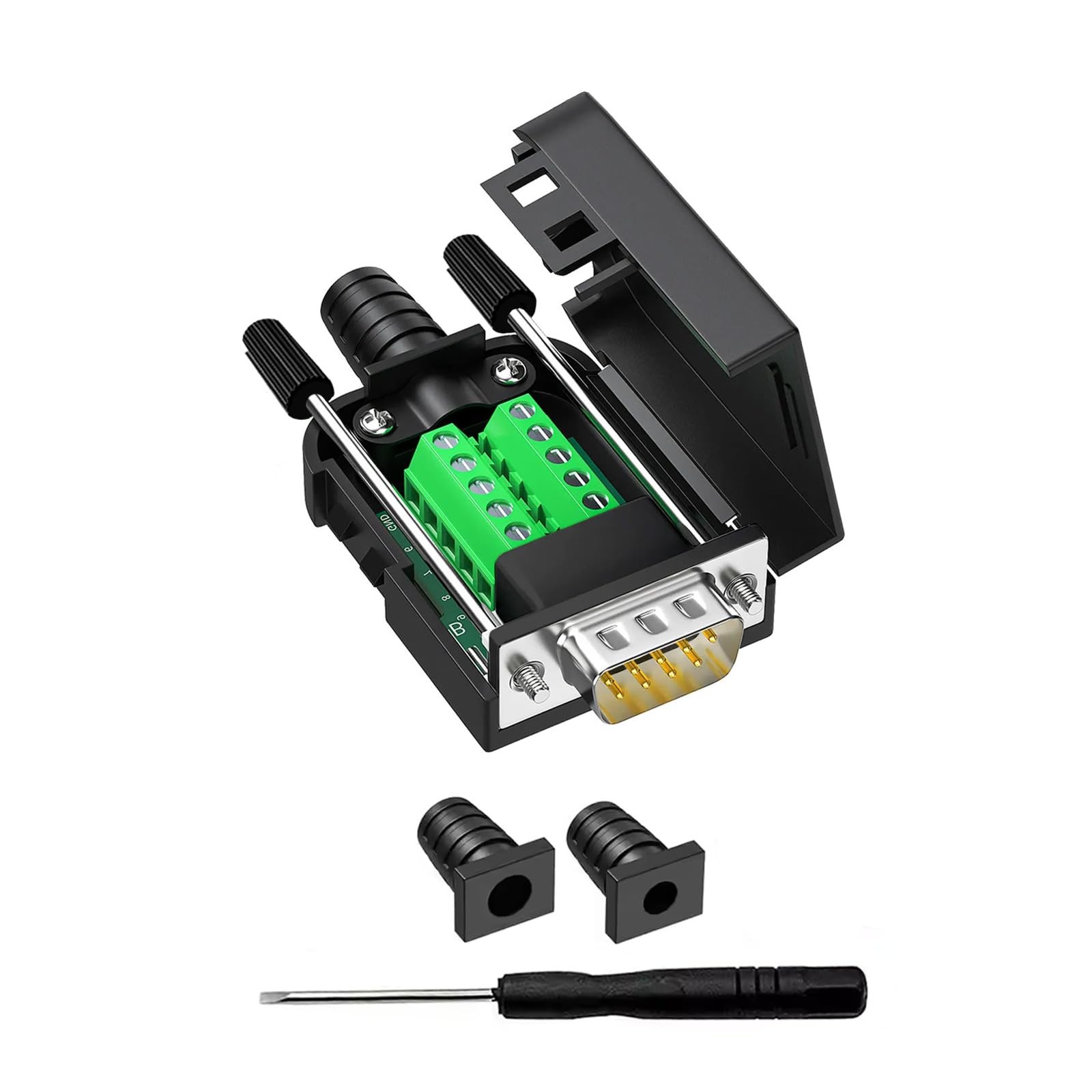

1 x DB9 breakout board male adapter with case
2x Metal cable pressing plate
2x Screws
2x Long bolts
3x Wire cover

Connector DB9 RS232 D-SUB Serial Adapters
The DB9 connector Pure copper plated joints, fine solder joints, resistance to plug, and good to ensure high-quality, durability and a long life. The outer casing is made of environmentally friendly PP engineering material, which is soft and durable.
No welding required, no need for soldering iron and cumbersome tools, easy wiring. The housing is designed with a folding buckle for easy assembly and disassembly without tools, Case can be prevent short circuits
Male DB9 breakout connector signal pins are Clearly Labeled on Both Sides of PCB board for quick connection and easy troubleshooting
It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera,PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
Using 9pin male and female connectors, you can DB9 cable or USB to RS232 / RS485 cable by yourself. The cable length and wiring sequence can be customized
