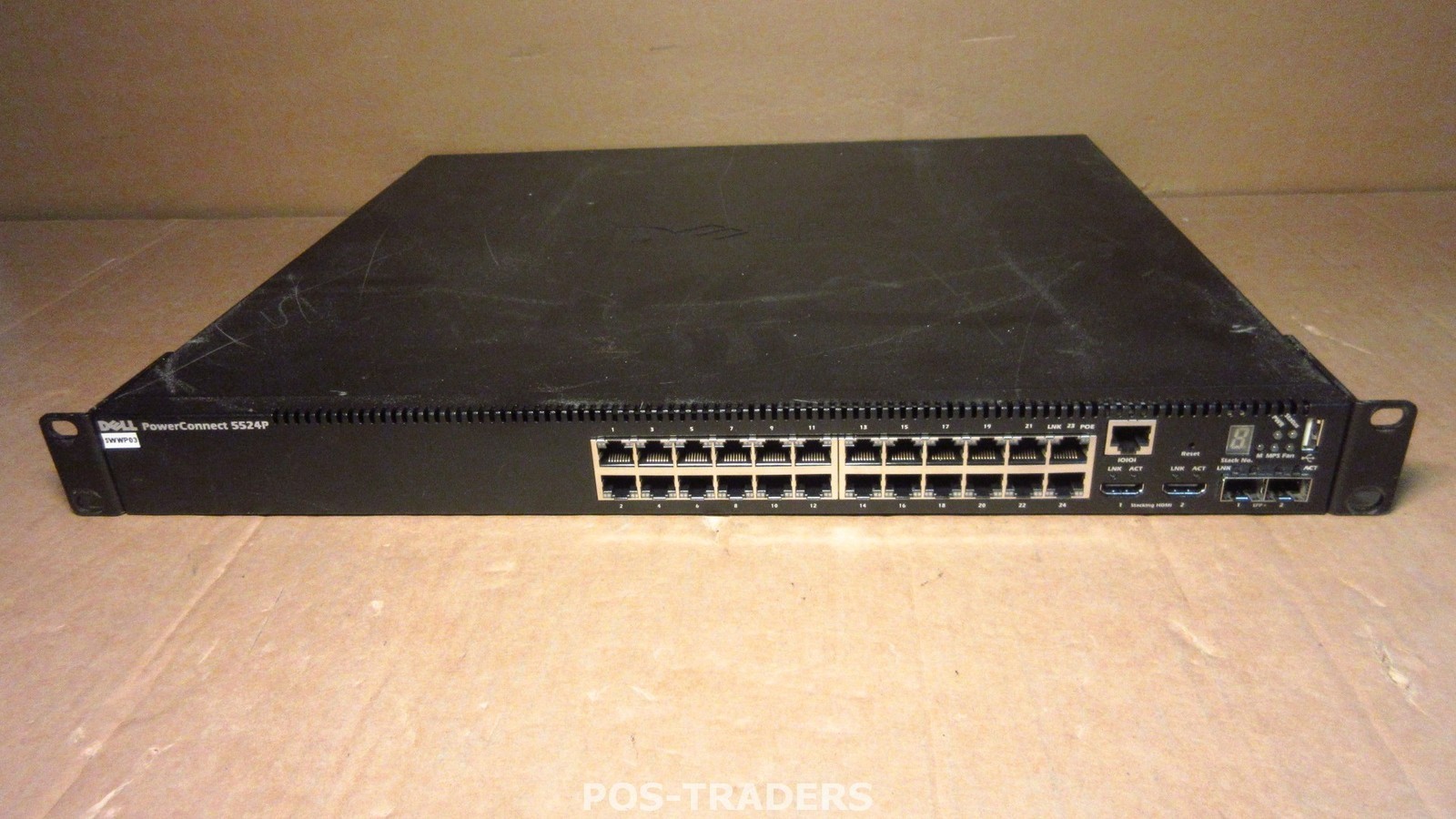

DELL 5524P PowerConnect 5524P 24-Port 10/100/1000 Gigabit PoE Network Switch Dear customer, When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding. EXCLUDING NETWORK CABLES See photos for actual item! Price isfor 1 item. Port Attributes - 24 10/100/1000BASE-T auto-sensing Gigabit Ethernet switching ports
2 SFP+ (10Gb/1Gb) ports
2 Stacking Ports (HDMI) – 10Gb per port, full duplex, 40Gb total per switch
USB Port – Allows for file import/export locally
Auto-negotiation for speed, duplex mode and flow control
Auto MDI/MDIX
Port mirroring
Broadcast storm control
Port Profile Fabric Capacity 128.0 Gbps
Forwarding Rate65.47 Mpps
Up to 16,000 MAC Tree (IEEE 802.1D) Multiple Spanning Tree (MSTP) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support
Dual Image Support
External redundant power support with PowerConnect RPS-720 (sold separately)
Cable diagnostics via Virtual Cable Tester
VLAN - VLAN support for tagging and port-based as per IEEE 802.1Q; protocol-based VLANs
Up to 4000 VLANs supported
Dynamic VLAN with GVRP support
Protocol based VLANs
802.1x Auto VLAN
Quality of Service - Layer 2 Trusted Mode (IEEE 802.1p tagging)
Layer 3 Trusted Mode (DSCP)
8 Priority Queues per Port
RED/WRED
Adjustable Weighted-Round-Robin (WRR) and Strict Queue Multicast Support – up to 256 Multicast groups supported in IGMP Snooping or static Multicast
IGMP Snooping v1/v2
IGMP Snooping Querier
Security - Up to 3,000 ACLs and up to 3,000 ACEs
Time Controlled ACLs
ACL Logging
Switch access password protection
Optional strong password enforcement
User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access
Port-based MAC Address alert and lock-down
IP Address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP
RADIUS and TACACS+ remote authentication for switch management access
SSLv3 and SSHv2 encryption for switch management traffic
DHCP Snooping
Management access filtering via Management Access Profiles
IEEE 802.1x based edge authentication, 802.1x Monitor Mode (logging without enforcement)
Other Switching - iSCSI optimization and monitoring
Link Aggregation with support for up to 8 aggregated links per switch and up to 8 member ports per aggregated link (IEEE 802.3ad)
LACP support (IEEE 802.3ad)
Supports jumbo frames up to 10K bytes
IPv6 Support
IPv4 Only Mode – maximizes tables for IPv4 CLI accessible via Telnet, SSH, or local console (RJ45 Yost)
Robust HTTP GUI Management
sflow
Management IP Address Conflict Notification
SNMPv1 and SNMP v2c supported
4 RMON groups supported (history, statistics, alarms and events)
HTTP and TFTP transfers of firmware and configuration files
Dual Firmware images on-board
Multiple Configuration file upload/download supported
Statistics for error monitoring and performance optimization including port summary tables
BootP/DHCP IP address management supported
SNTP Support
Layer 3 Traceroute
Telnet Client
Syslog remote logging x 381 x 432 mm (W x D x H)
17.32 x 15 x 1.7 in (W x D x H)
Approximate weight: 6.1 kg / 13.45 lb
|
|
