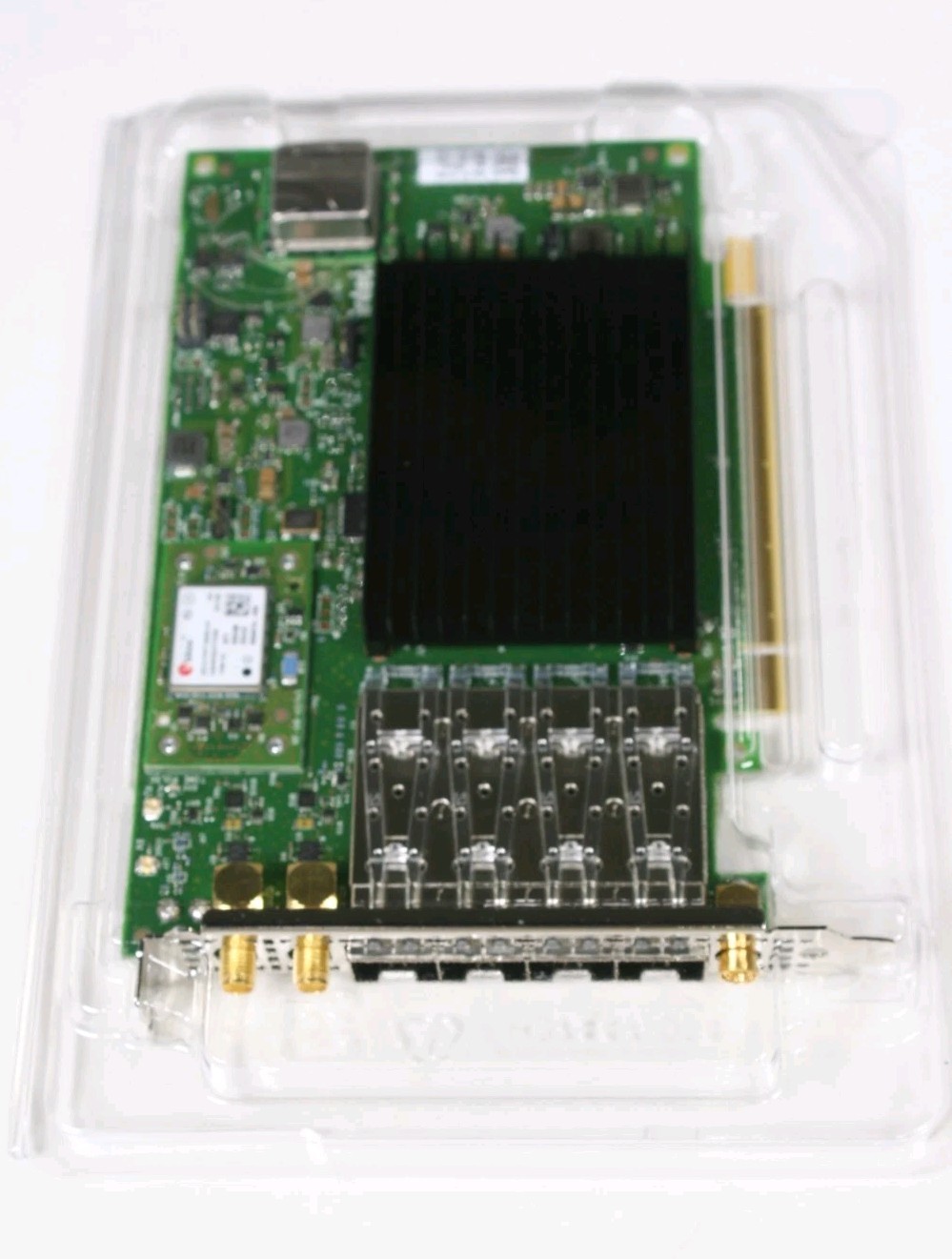

DELL Intel E810-XXVDA4T Quad Port 25GbE SFP28 PCIe Ethernet Adapter w/GNSS WK9RR For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Dell Intel E810-XXVDA4T Quad Port 25GbE SFP28 EthernetAdapterw/ GNSS
Manufacturer: Intel (Dell OEM)
Model: E810-XXVDA4T
Intel Product Code: E810XXVDA4TGG1
Dell P/N: WK9RR
Dell description: 4 x SFP28
Data rate per port: 1/10/25GbE per port
Host Interface: PCI Express x16 (Gen4.0)
Form Factor: Full-Height Half-Length (FHHL)
Bracket: Full Height Installed
Controller: Intel E810-CAM1
Timing Support: GNSS, IEEE 1588 PTP, SyncE
GNSS mezzanine enables integrated support for frequency, phase, and time-of-day synchronization with Global Navigation Satellite Systems, including GPS, Galileo, GLONASS, BeiDou, and QZSS. Subminiature version B (SMB) coaxial connector allows connection to an external active GNSS antenna (antenna not included)
Dual external SubMiniature version A (SMA) coaxial connectors allow connection to external 1PPS timing sources, such as GNSS signaling, devices and to timing recipients, enabling the network adapter to act as a grandmaster and as a timing source for other equipment. The output capability provides a way toaudit the phase accuracy of each node.
Dual, internal U.FL coaxial connectorsare embedded on the adapter andallow 1PPS signal connectivity between the adapterand motherboard or another adapter. Dedicated send and receive U.FL ports.
Onboard high-precision oscillator maintains high accuracy during holdover (when the synchronization source is not available), providing up to four hours withless than +/- 1.5 microsecond of phase error.
Dimensions 6.58 in x 4.37 in (167 mm x 111 mm)(Full-height, half-length)
Package Includes
One (1) Dell Intel E810-XXVDA4T Quad-Port 25GbE SFP28 PCIe Adapter
