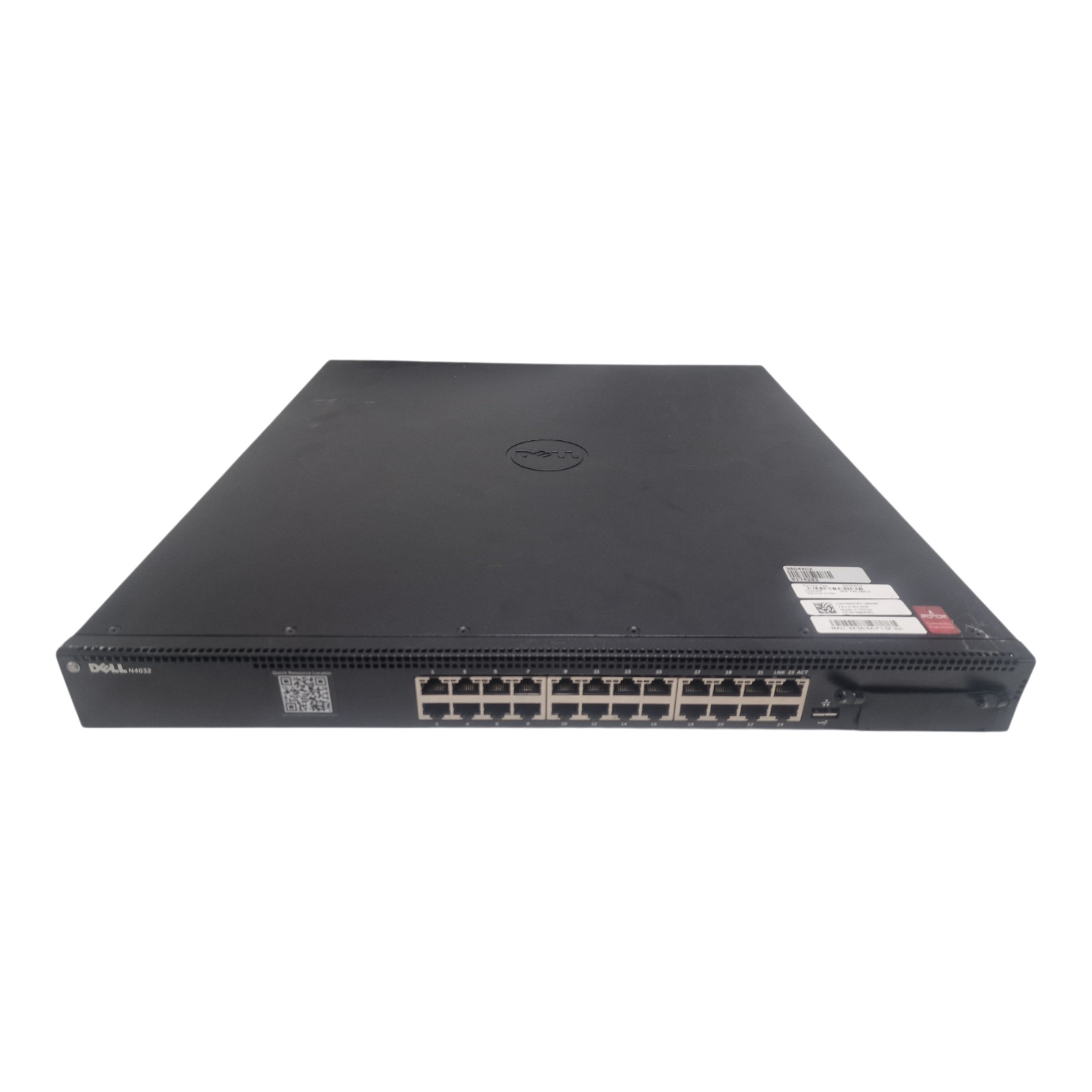

2 Year Warranty Fast Worldwide Delivery Trusted Seller In Stock & Ready to Ship DELL N4032 Network Switch 24x 10GbE RJ45 Port 2x PSU OS6 Damaged Expansion Slot What's Included 1 xDELL N4032 Network Switch 24x 10GbE RJ45 Port 2x PSU OS6 Damaged Expansion Slot - Used
Specification Delivery Returns VAT Description:
- 24 x 10Gb RJ45 Ports
- 1 x USB Port for Configuration via USB Flash Drive
- 2 x Redundant 460W PSU
- 1 x Hot-Swap expansion module bay (Damaged See Photos)
- Part Number: N4032
The Dell PowerSwitch N4032 provides speeds 10GbE connections across it's 24 primary RJ45 ports, allowing for fast communication within your network.
Standard Traffic-Port Attributes
- Standard Port Attributes: 24x 10GbE 10GBASE-T RJ45 auto-sensing (10Gb/1Gb/100Mb) fixed ports
Modular Traffic-Port Attributes
- Hot swappable expansion module bay: Front
- Module support for 10GbE: Standard
- Module support for 40GbE: Standard
- Support for 40GbE to 4x 10GbE breakout: Option Available
Traffic-Port Features
- Auto-negotiation for speed and flow control: Standard
- Auto MDI/MDIX: Standard
- Port mirroring: Standard
- Flow-based port mirroring: Standard
- Broadcast storm control: Standard
- Energy Efficient Ethernet per port settings: Standard
- Port Profile support including Admin profiles: Standard
Management- & Configuration-Port Attributes
- 1 RJ45 console/management port with RS232 signaling: Rear
- 1 Out-of-Band (OOB) Management Port (10/100/1000BASE-T): Rear
- 1 USB (Type A) port for configuration: Front
Stacking Attributes
- User port stacking: 10Gbps or 40Gbps
- Maximum stacking distance (meters): 100
- Maximum stacking speed (full-duplex): 160Gbps
Switch Attributes
- Switch Fabric Capacity (full duplex): 640Gbps
- Forwarding Rate: 476Mpps
- Line-rate Layer 2 switching: Standard
- Line-rate Layer 3 routing: Standard
- CPU Memory: 2GB
- Flash Memory: 256MB
- Packet Buffer Memory: 9MB
- Dual firmware images on-board: Standard
- Temperature sensors for environmental monitoring: Standard
- Cable diagnostics: Standard
- Optical transceiver (SFP/SFP+) diagnostics: Standard
- Switch auditing support: Standard
- UDLD: in inches (H x W x D): 1.71 x 17.08 x 18.11
- Dimensions in cm (H x W x D): 4.34 x 43.4 x 46.0
- Rack Height: 1U
- Approximate Weight in pounds (without modules): 21.14
- Approximate Weight in kilograms (without modules): 9.59
Power & Cooling Hardware
- Internal hot swappable power supply bays: 2
- Hot swappable power supplies: 2
- Power supply redundancy: Standard
- Removable fans: Standard
- Redundant fans: Standard
- Variable speed fans: Standard
- Air flow: IO to PSU (Front to Back)
Environmental Operating Conditions
- Operating Temperature in Celsius: 0° to 45° C
- Operating Temperature in Fahrenheit: 32° to 113° F
- Storage Temperature in Celsius: -20° to 70° C
- Storage Temperature in Fahrenheit: -4° to 158° F
- Operating Relative Humidity: 90%
- Storage Relative Humidity: 95%
Power
- Power Supply (Watts): 460
- Max Thermal Output (BTU/hr): 603.86
- Power Consumption Max (Watts): 176
- Power Supply Efficiency: 80% or better in all operating modes
VAT @ 20% INCLUDED IN PRICE -£200 EXCLUDING VAT -NOT PAYABLE BY PURCHASERS OUTSIDE THE UK Visit Our Store | Thank you for shopping with ITinStock | View Our response MJM0P6C-OS6/USED -3
