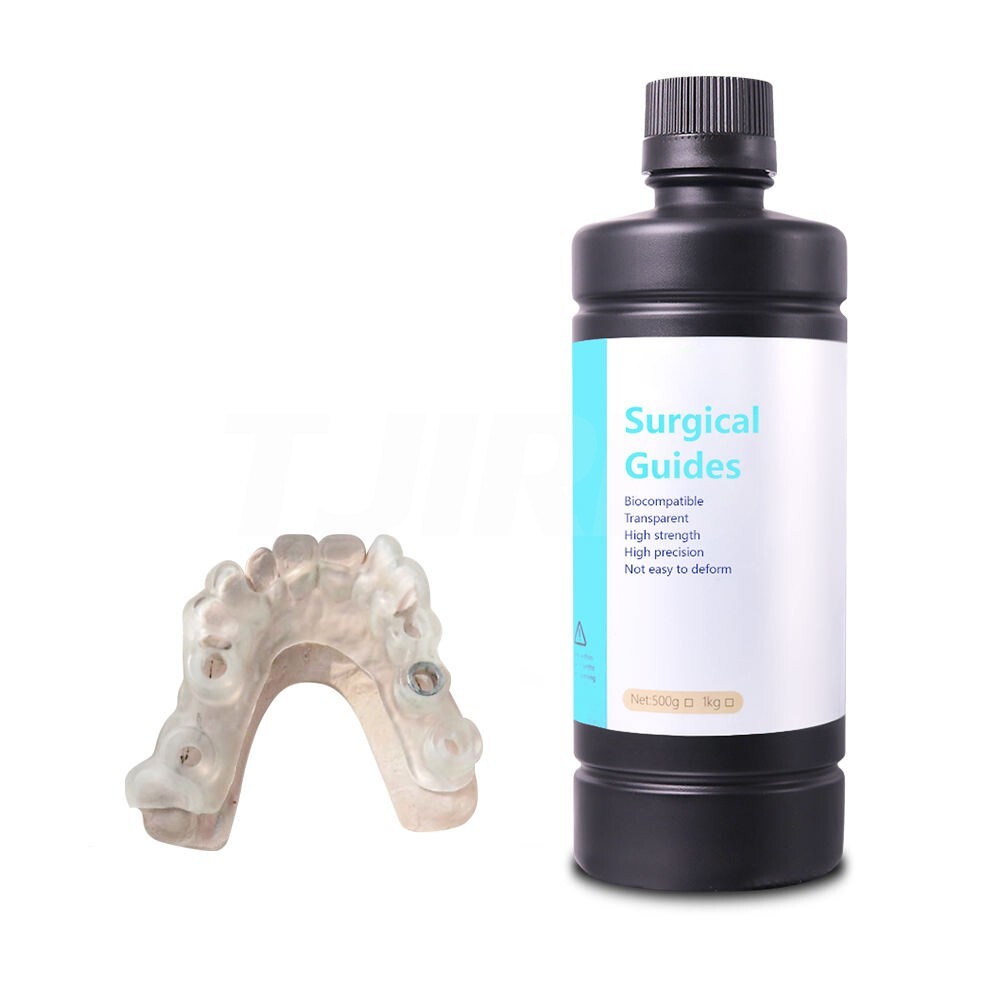

Surgical Guide Resin
- Easy to peel off the support by hand
- Low shrinkage, stable storage, no deformation and shrinkage after curing
- High hardness with some toughness
- UV curing wavelength: 405nm
Safe for surgical guide
The surgical guide resin is a biocompatible resin for applications such as 3D printing dental surgical guides for implants. It has undergone rigorous testing and fully meets the dental requirements for part quality, precision and performance.
Stable and not deformed
Combine strength and toughness. Strength can withstand force without deforming, while toughness can withstand force without fracturing.
Precise fit to the teeth
The guide plate printed with 3165 resin has accurate hole position, high hardness and toughness; it can easily install the guide ring and withstand the mechanical impact of surgery.
Low water absorption
Water absorption rate is less than 0.5%. For post-sterilization, the surgical guide is soaked in water containing iodophor for 30 minutes and will not absorb water and become soft or damaged.
Specifications of Surgical Guide Resin
ContentData valueTesting methodViscosity330-350cps(25℃)ASTM D1084-1997Density1.15ASM D1875-69(1980)Shrinkage＜0.5%Capillary methodHardness78DASTM D2240-05(2010)Water absorption0.50%ASTM D570Bending strength65MPaASTM D747BiocompatibilityTEST PASSISO10993-1/ISO10993-10
Six steps:
Part removal, rinsing, drying, post-curing, support removal, and polishing.
Alert:
1. Post-curing time and temperature can lead to suboptimal mechanical and biocompatibility. Please find the right curing time.
2. Disinfection method for the guide plate: Firstly, disinfection by soaking in iodophor solution for 30 minutes, then deiodination by rinsing with medical alcohol or physiological saline.
3. In the data layout, the hole position of the guide ring is kept as vertical as possible to ensure the accuracy of the size.
4. If the hole collapses, It can be reamed by using a drill bit later.
5. Minimum wall-thickness:2mm
Package included
1 x 3D printer guide resin（1kg）
