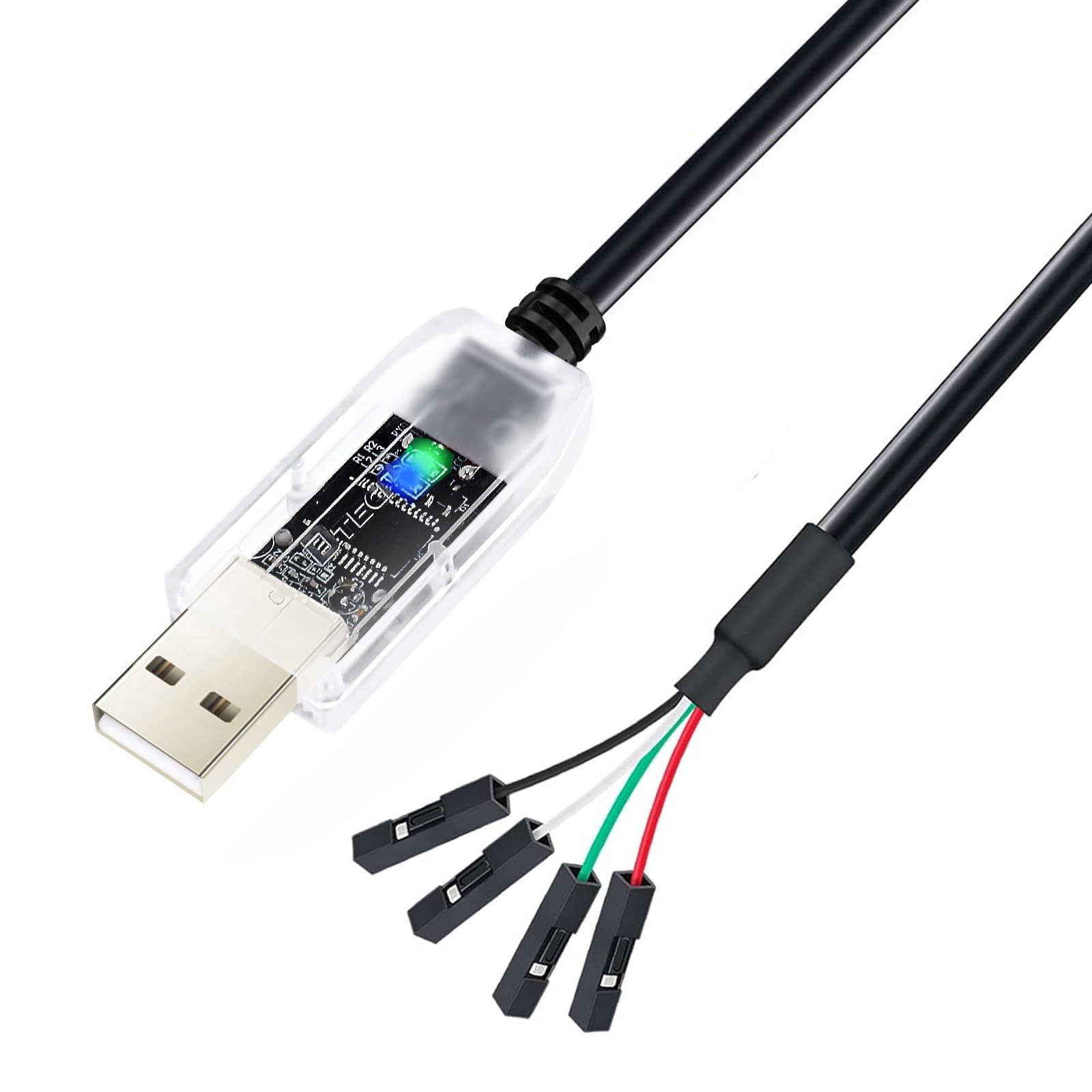

3ft USB to TTL serial adapter built with Prolific chip for 3.3V logic level serial communication (RX TX VCC GND) USB-A end is built with original PL2303GC chip that allows for communication as a standard COM port application programming interface. 4 way 0.1” header connector flying leads with GND (ground), VCC, 3V3 logic level signaling at RX and TX pin, provides TTL outputs onto a circuit board without the bulking DB9 adapter. Clear plastic shell and LED Indicators for Easy Monitoring Rx Tx lines: No more guesswork! Watch the LED lights flash to confirm connection status and data flow is transferring properly. A serial to USB adapter meets with your needs of debugging, programming, boot-loading, IoT project, developing custom electronics or interfacing with legacy systems, etc. No need for messy jumpers, just plug it in and it shows up in Putty. USB to TTL Converter Applications: Upgrading Legacy Peripherals Access to Ubiquiti router without external console access Build a Casio calculator com cable to change firmware Interface Microcontroller UART or I/O, MCU, PCM, FPGA / PLD Replace MAX232 type level shifters allowing for direct connection of products to PC Industrial control, hardware encryption dongle, printer, video display terminals, Oscilloscope, microprocessor, arduinoboard, raspberryPi, esp32 development ESP8266, mini computers DEC VAX, serial monitor, power amplifier, Ham radio,bluetooth module, light cube, etc. Interfaces: USB 2.0 type A input; 4 pin output Breakout board pinout: TXD (white), RXD (green), VCC (red), GND (black) The I/O pins of operate at 3V3 logic level VC pin supports 5V supply output Data transfer rates up to 3M baud rate Internal EEPROM with users writable area What’s Included 1x USB to TTL Adapter 3.3v 4 Pin 1x Manual
3.3v USB to TTL serial uart adapter male to female cord features flashing LED indicators for easy monitoring on TX RX data flow of 3.3 V logic level signal interface, VCC output is 5V
Prolific PL2303 USB to TTL serial cable with PL2303gc IC module is compatible with Windows 11, 10, 8, 7, 2008, XP, Mac OS, Linux for reliable TTL level communication and efficient data transfer
4 way plug rx tx TTL to USB adapter cable 3.3v logic has 4 pin TTL connector to provide serial access to UART (transmit) TxD, (receive) RxD, VCC (5V) and GND between computer and embedded system
3ft UART to USB computer cord supports EEPROM, vendor ID re-write, repairs a bricked router, update transmitter, serial monitor, GPS, calculator, set top box, programs ESP8266 module, arduinomicro controller, adafruit microcontroller, mini computer, raspberrypi, console, flash firmware on hard drive, etc
A handy laptop debug tool USB to TTL cable 3v3 conversion for IoT project programmer, hardware engineer and DIY user to interface USB to serial port legacy systems, dsd debugging UART signals, developing industrial custom electronics
USB type A plug, 4pin TTL outputs dupont end is terminated with 4 pin 2.54mm pitch female header socket; if driver not auto installed, VCP driver can be downloaded on the prolific official website or you may contact us directly
