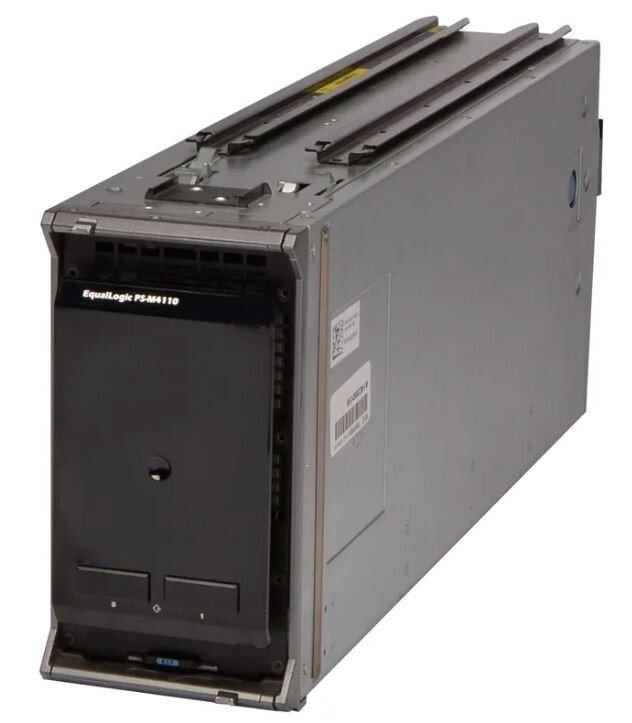

Dell Equallogic PS-M4110 14x SFF Bay SAN Blade Storage Array +2x CM13 For M1000e
In Good Condition, Full Working OrderTested1 Year Warranty
Includes:

• 1 xDell Equallogic PS-M4110 14x SFF Bay SAN Blade Storage Array with:
• 2 x Dell EqualLogic Type 13 Controller Module CM13 1x 10GbE iSCSI1KWXY

Description:PS Series Blade Array Features

• Storage controllers: Dual controllers with 2GB of non-volatile memory per controller
• Network interfaces: Redundant 10Gb connections available through Fabric A or B
• Hard disk drives: 14 hot-plug 2.5” SAS drives

Technical highlights:

• Host protocol: Any standards-compliant iSCSI initiators
• OS supported:
• Microsoft Windows Server including Hyper-V
• VMware ESX Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Enterprise Linux (SLES)
• Oracle Linux
• Citrix XenServer
• RAID supported: RAID 5, RAID 6, RAID 10, and RAID 50
• TCP network support: IPv4, IPv6 compliant. USGv6 certified.
• Expansion option: Can be combined with other PS Series arrays in the same SAN group online. A maximum of 2 PS-M4110 blade arrays can be in a group, up to 4 blade arrays per blade chassis. Additionally, the PS-M4110 can scale outside blade chassis to rack-mounted PS Series arrays for up to 16 in a SAN group. Additionally, Dell Storage Manager (DSM) offers common management and crossplatform replication capabilities between SC Series and PS Series arrays, providing PS Series customers the flexibility to add SC Series arrays to their environment, if and when they choose.
• Reliability: Redundant hot-plug controllers and hot-plug disks; redundant network path with internal fabric wiring in M1000e chassis; redundant fans and power supplies provided by M1000e chassis
• Enclosure Monitoring system: Automatic spare configuration and utilization; SMART; automatic bad block replacement; auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
• Management interfaces: Dell Chassis Management Console (CMC) integration; DSM for day-to-day tasks across SC Series and PS Series arrays from a single management interface; PS Series Group Manager; PS Series SAN Headquarters multi-group performance and event monitoring tool; Serial console; ability to configure a separate management network; SNMP, telnet, SSH, HTTP, Web (SSL), host scripting; multi-administrator support
• Security: CHAP authentication; access control for iSCSI; access control for management interfaces including RADIUS support; IPSEC and SED
• Notification methods: SNMP traps, email, syslog
• Physical:
• Half-height, double-wide storage blade
• Height: 189 mm (7.44 inches), Width: 102 mm (4.015 inches), Depth: 515 mm (20.275 inches)
• Power:
• Wattage: 450W
• Voltage: 12VDC
• Max power input: 450W
• Input current: 37.5A
• Heat Dissipation: 700W (maximum total), +5V up to 155W; +12V up to 624W; +5Vsb up to 10W
• Frequency Frequency: 50/60 Hz

Dependencies and other components

• Blade enclosure: PowerEdge M1000e
• Blade I/O modules: Dell Networking MXL 10/40GbE blade switch, M8024-k and M8428-k switches, and 10Gb Ethernet Pass-Through-k modules with external switches
• Power supplies and fans: Supplied by Dell PowerEdge M1000e Blade Enclosure

CM13 Control Module
The Type 13 control module includes:

• Ethernet port - A 10Gb/s iSCSI Ethernet port (Ethernet 0) for communication on one of two redundant fabrics.
• Management port - Ethernet port 1 can optionally be set up as a management port.
• Status and Power LEDs - Indicate status of the control module. ACT LED for activity and PWR LED for power.
• Serial port - The serial port on the front of the array connects to the control module so you can connect a computer directly to the array, without network access.
• microSD card - A field-replaceable microSD card containing the PS Series firmware.
• Release button and latch - Releases the control module from the array for replacement.

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£4000 excluding VAT

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK

CSPS-M4110-NC/REF
LJMC0P1F/REF -1
