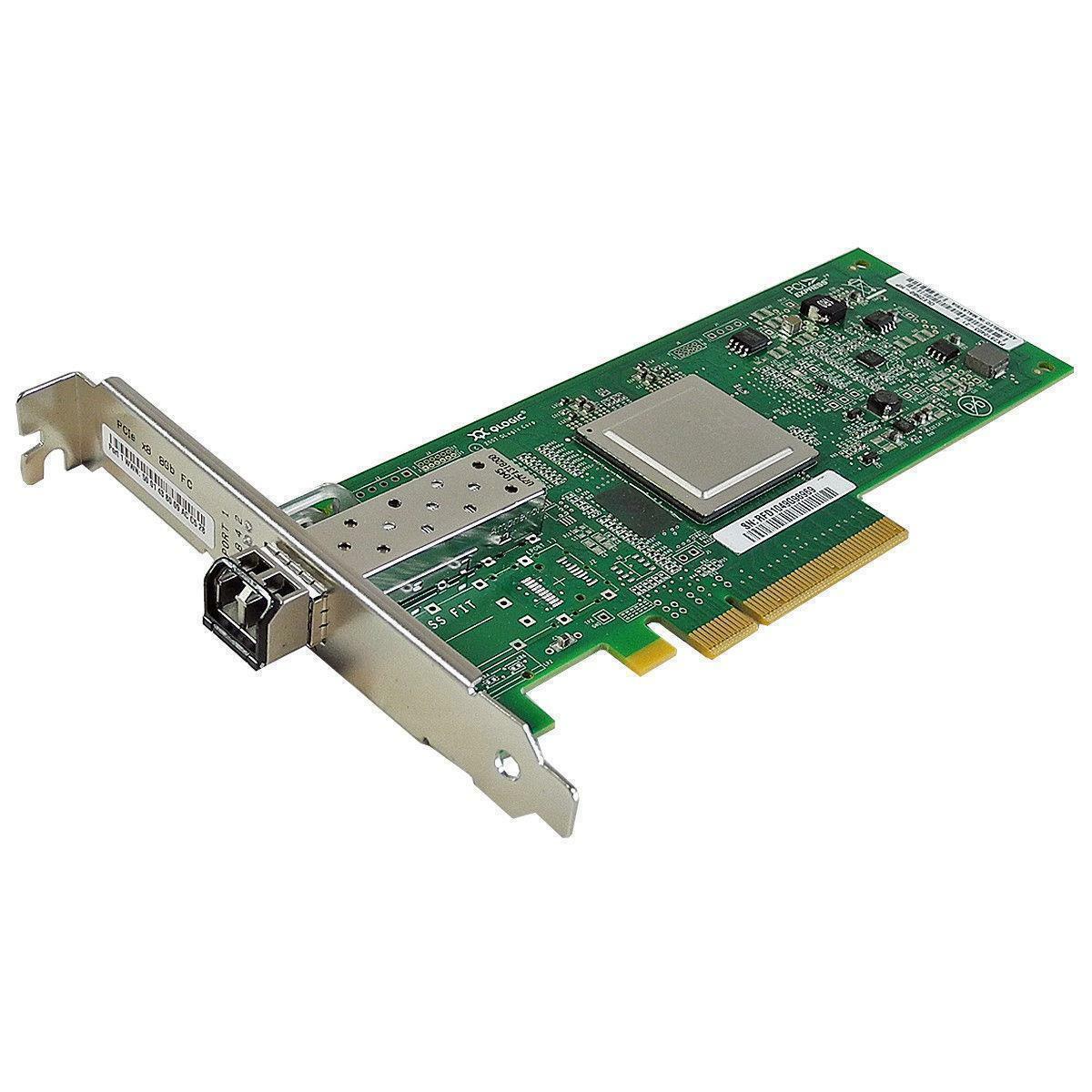

Dell FC Single Port 8Gb PCIe x8 Network Adapter 0R1N53 QLogic QLE2560 FP Description
Dell
QLE2560 FC Single-Port 8Gb PCI-E x8 Network Adapter Model: QLE2560 PN:0R1N53
Technical data / Specifications
Manufacturer / Manufacturer
Dell / QLogic Inc.
Type / Device Type
Fibre Channel Network Adapter
Form Factor
FULL-profile, full-bracket
Fibre Channel Protocol
FC-AL, FC-AL2, FCP-3-SCSI, FC-Tape, FC-IP
Fibre Channel Class of Service
2 and 3
Interfaces / Interfaces
1 x 8 GB FC SFP + port (1 x 8 GB transceivers included)
Bus Iinterface
PCI-Express x8 2.0
Data Transfer Rate / Data Transfer Rate
8/4/2 Gbps
OS / Operating Systems
Microsoft Windows Server™ 2008, 2008R2, 2012, 2012R2
Red Hat Enterprise Linux 5, 6, 7
SUSE Linux Enterprise Server 10, 11, 12
VMware ESX 4.1, ESXi 4.1
VMware vSphere (ESXi) 5.0, 5.1, 5.5, 6.0
Compatibility / Compatibility
System R330, R620, R630, R720, R730, R730xd, R820, T630, R430, R530, FC430, FC830, R640, R740xd, R940
Standards
EN60950, EN60825, CE Mark, EN55022, CISPR22, EN55024, EN61000, FCC Part 15 Class A, VCCI, UL, BSMI, MIC, RoHS,
Delivery / Scope of delivery
1 x Dell / QLogic QLE2560 Network Adapter
1 x 8Gb SFP+ Transceiver
More information and details can be found on the pages of the manufacturer.
Please refer to the manufacturer's website for more information and details.
All parts are used but 100% OK!!!
All parts are used but 100% fine!!!
