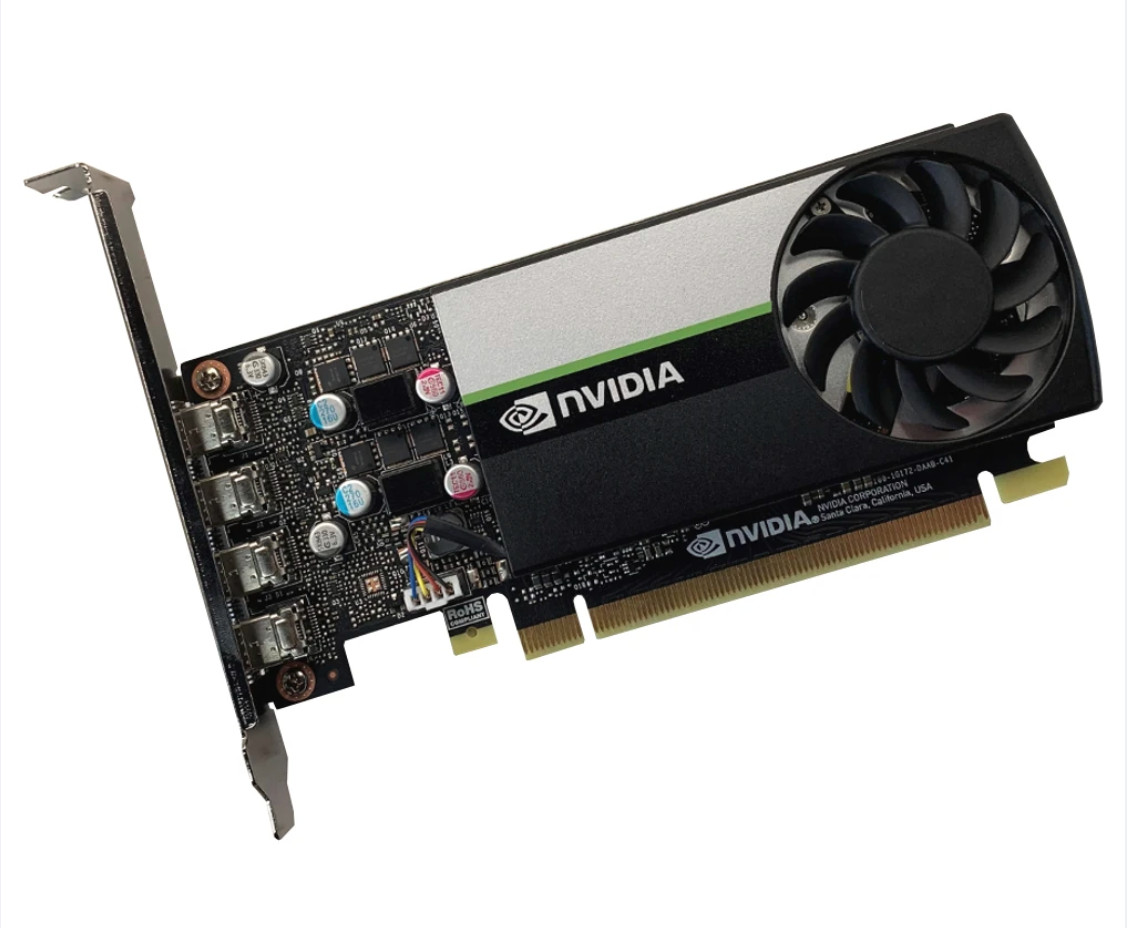

Dell NVIDIA T1000 8GB GDDR6 Workstation Graphics Card 0D408X Professional Workstation GPU • Upgraded 8GB Model Dell NVIDIA T1000 8GB GDDR6 Graphics Card
Part Number: 0D408X / D408X | Turing Architecture | Single-Slot
896 CUDA Cores | 8GB GDDR6 (160 GB/s) | 4x Mini-DisplayPort 1.4a | 50W Low Power (No 6-Pin Required)
Compact Form Factor, Enterprise Reliability & Quad-Display Power
The Dell OEM NVIDIA T1000 8GB (D408X / 0D408X) brings full Turing workstation performance to space-constrained Small Form Factor (SFF) and standard desktop workstations. Featuring 8GB of ultra-fast GDDR6 memory—double the buffer size of standard 4GB T1000 cards—this GPU easily handles complex 2D/3D CAD models, multi-layer graphic design, financial trading multi-monitor arrays, and accelerated video editing. With 896 CUDA cores and support for up to four 5K displays, it delivers exceptional productivity in a whisper-quiet 50W envelope.
⚠️ Connection & System Compatibility Notice
- Display Connectors (Mini-DP): This card features 4x Mini-DisplayPort (mDP 1.4a) outputs. Connecting to standard full-size DisplayPort, HDMI, or DVI monitors requires Mini-DP adapters or Mini-DP to DP/HDMI cables (not included).
- Zero Auxiliary Power Required: Rated at just 50 Watts maximum power, the T1000 draws 100% of its power directly through the motherboard's PCIe x16 slot. No supplementary 6-pin or 8-pin power cables are needed, making it compatible with low-wattage OEM proprietary power supplies.
- 8GB GDDR6 Model: Please note this is the enhanced 8GB GDDR6 VRAM edition (Part: 0D408X), providing significantly greater headroom for large assemblies, Adobe creative software, and multi-monitor desktop environments than the base 4GB model.
- Universal OEM & Custom Compatibility: While manufactured under Dell OEM specifications, this standard PCIe graphics card works across Dell Precision, HP Z-Workstation, Lenovo ThinkStation, and standard custom-built PC motherboards running Windows or Linux.
Key Hardware Highlights Expanded 8GB GDDR6
160 GB/s bandwidth with double the frame buffer allows seamless handling of larger 3D assemblies and heavy multi-tasking without stutter.
Quad 4K/5K Display
Drives up to four independent displays up to 5120x2880 @ 60Hz or 4096x2160 @ 120Hz with HDR color support via 4x Mini-DisplayPort 1.4a.
Low-Profile Single-Slot
Ultra-compact physical footprint fits effortlessly into ultra-slim SFF desktop towers, standard mid-towers, and density-optimized rack systems.
ISV Certified Drivers
Officially tested and tuned for stability in leading professional applications from Autodesk, Dassault Systèmes, Adobe, Siemens, and PTC.
Comprehensive Technical Specifications Feature / Parameter Specification Details GPU Model Dell OEM NVIDIA T1000 8GB Dell Part Number (DP/N) 0D408X / D408X / CN-0D408X GPU Architecture NVIDIA Turing™ Architecture (TU117) NVIDIA CUDA Cores 896 CUDA Cores Single-Precision (FP32) ~2.50 TFLOPS Memory Capacity 8 GB GDDR6 Memory Interface 128-Bit Memory Bandwidth Up to 160 GB/s Bus Interface PCI Express 3.0 x16 Display Connectors 4x Mini-DisplayPort 1.4a (with latching mechanism) Max Simultaneous Displays 4 Displays @ 5120 x 2880 (60Hz) / 4096 x 2160 (120Hz) Maximum Power Consumption 50 Watts (PCIe Slot Powered / No Aux Cables Required) Form Factor & Dimensions Low-Profile / Single-Slot (Approx. 6.13" Length x 2.71" Height) Cooling Solution Active Single Blower Fan Heatsink (Quiet Operation) Graphics APIs DirectX 12, OpenGL 4.68, Vulkan 1.2, OpenCL, NVIDIA CUDA ✓ What Is Included
- Dell NVIDIA T1000 8GB GDDR6 Graphics Card (0D408X)
- Installed Mounting Bracket (as pictured in listing)
- Protective Anti-Static ESD Packaging
✕ What Is NOT Included
- Mini-DisplayPort to DP / HDMI Adapters
- Monitor Cables / Display Monitors
- Original Retail Box & Paper Manuals
- Software Driver CD (Download latest from NVIDIA)
🛡️ 30-Day Functionality Guarantee
Every graphics card is bench-tested in an enterprise workstation. We run 3D graphics stress benchmarks, verify all four Mini-DP video outputs, and confirm quiet fan operation before inventorying. Backed by our 30-day warranty.
📦 Fast, Insured Shipping
Ships within 1 business day with tracking information provided immediately. Graphics cards are packed securely inside anti-static ESD shielding and heavily bubble-cushioned in a sturdy shipping box to ensure safe transit.
Enterprise Workstation Hardware • Rigorously Tested • Fast & Professional Service
