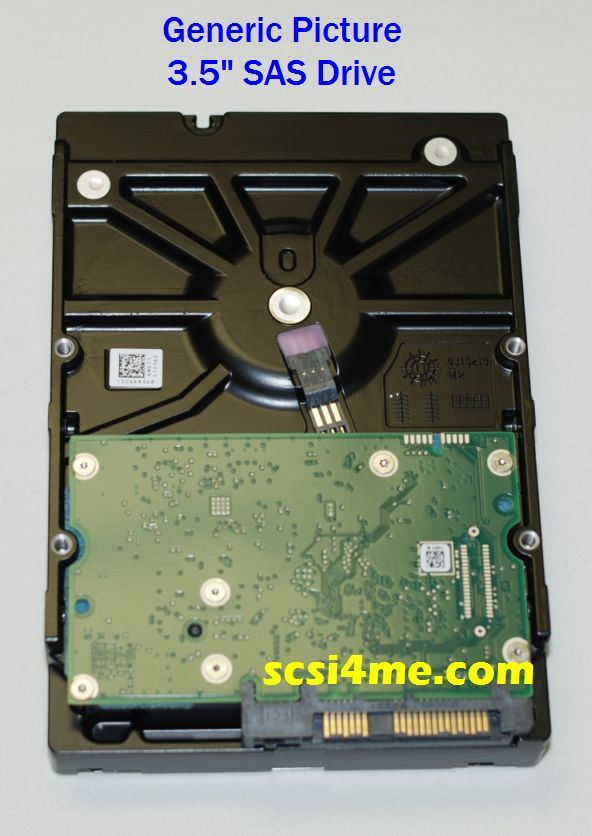

Dell OEM Fujitsu MBA3073RC 73GB 15K RPM 3.5-inch SAS Hard Drive.

Overview

State-of-the-art hard disk drives for demanding enterprise applications.

• 15K RPM spindle speed and storage capacities up to 300GB
• Maximum internal data-transfer rate of 179MB/sec
• 3Gb/sec SAS interface. Also offered with 4Gb/sec Fibre Channel and Ultra320 SCSI interfaces
• 1.4M hours MTBF for high reliability
• Ideal for high-performance and high-bandwidth applications.

Fujitsu 3.5-inch 15K RPM enterprise hard disk drives feature a host of innovations. The 300GB, 4-platter configuration provides low power consumption, high reliability, and faster internal data rates. Interface options include 3Gb/sec SAS, 68/80-pin U320 SCSI and 4Gb/sec Fibre Channel.

These qualities make Fujitsu hard disk drives ideal for today�s most demanding storage environments. A variety of product offerings with industry leading performance provide systems engineers with greater flexibility when designing rack and tower servers, storage arrays, RAID systems and digital video SpecificationsStorage Capacity (formatted)(1)73.5 GB147.0 GB300.0 GBDisks124Heads (read/write)248Bytes/Sector512Seek TimeTrack to trackRead: 0.2 ms (typ) / Write: 0.4 ms (typ)AverageRead: 3.4 ms (typ) / Write: 3.9 ms (typ)Full trackRead: 8.0 ms (typ) / Write: 9.0 ms (typ)Average latency time2.00 msRotational speed (RPM)15,000Areal density112.8 Gbits/sq. in.Data Transfer RateTo/from media179 MB/secTo/from hostSAS: 3Gb/sec, SCSI: 320MB/sec, FCAL: 4Gb/secRecording code60/62 MEEPRMLInterfaceDual Port SAS (RC Series), SCA-2 80Pin (NC Series), 68Pin Wide (NP Series), Dual Port FCAL (FC series)Head positioning methodRotary VCMStart Time30 s (typ)Stop Time30 s (typ)Buffer Size(2)SCSI8 MBSAS, FC16 MBPhysical SpecificationsPower RequirementsVoltage5 V � 5%, 12 V � 5%Spin-up12V � 5% @ 2.5A (peak)
3.0 A (peak < 100 us)
5V � 5% @ 0.8 A Idle (typ.)SAS12.8 WSCSI12.4 WFC13.4 WDimensions (HxWxD)25.4 mm x 101.6 mm x 146.0 mmWeight (HxWxD)800 gAmbient TemperatureOperating5�C to 55�C (HDD surface 60�C max)Non-operating-40�C to (max)Relative HumidityOperating5% to 95% (non-condensing)Non-operating5% to 95% (non-condensing)Max. wet bulb29�C (operating)VibrationOperating0.6 mm (5 to 20 Hz) / 1.0 G (20 to 300 Hz)Non-operating3.1 mm (5 to 20 Hz) / 5.0 G (20 to 300 Hz)ShockOperating65 G max. (2 ms)Non-operating250 G max. (2 ms)Altitude (operation)Operating3,048 m (max.)Non-operating12,192 m (max.)Acoustic Noise (idle sound power) (typ.)</= 3.6 bels (idle)Reliability SpecificationsMean time between failures (MTBF)1,400,000 hoursError RatesUnrecoverable errors1 per 1015 bits read Seek errors10 per 108 seeks

Models

SAS Models: MBA3073RC, MBA3147RC, MBA3300RC

SCSI 68pin Models: MBA3073NP, MBA3147NP, MBA3300NPSCSI 80pin Models: MBA3073NP, MBA3147NP, MBA3300NPFibre Channel Models: MBA3073FD, MBA3147FD, MBA3300FD
