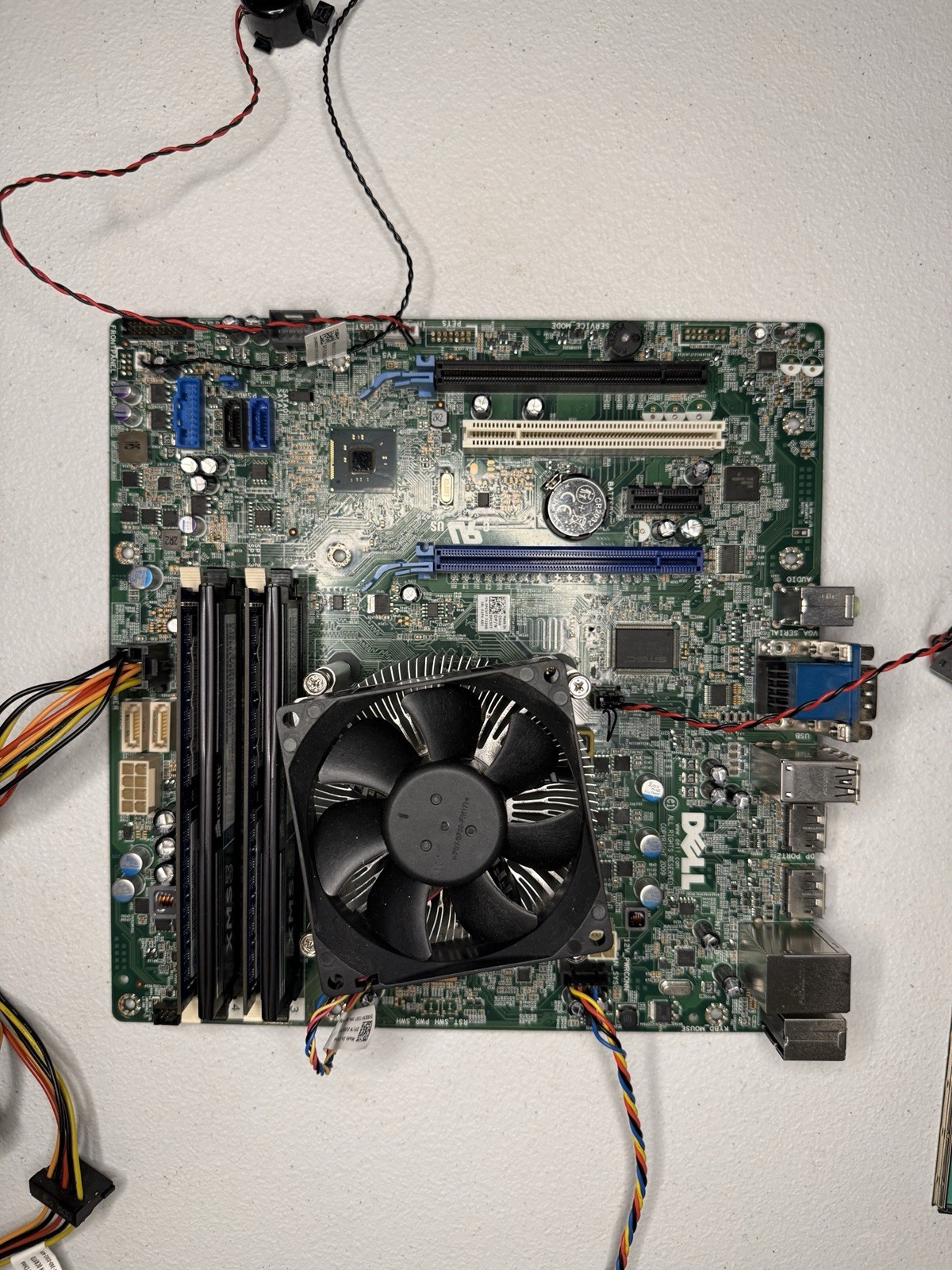

Complete working Mini Tower system board pull from a Dell OptiPlex 9020 MT. Board posted and showed full memory in BIOS. Service Tag D2TV9Z1, BIOS A25, manufactured 11/14/2013.
What’s included
• Dell OptiPlex 9020 MT motherboard (Intel Q87 / LGA 1150)
• Intel 4th Gen Core i5 CPU (installed under stock cooler)
• Stock Dell CPU cooler and heatsink
• 16GB DDR3 RAM — 4x 4GB DIMMs, dual channel (BIOS: 16384 MB installed @ 1333 MHz)
• Rear chassis exhaust fan
• Internal chassis speaker
• Chassis intrusion sensor
• Matching rear I/O shield
• Front-panel / fan / speaker cables as shown
Board / I/O
• Chipset: Intel Q87 Express
• Socket: LGA 1150 (4th gen Haswell i3 / i5 / i7)
• Memory: 4x DIMM DDR3, up to 32GB, dual channel
• Slots: PCIe x16, PCIe x16 (wired x4), PCIe x1, PCI
• Rear ports (matches included I/O shield): 2x DisplayPort, VGA, serial, 2x PS/2, USB 3.0, USB 2.0, RJ-45 Gigabit (Intel I217-LM), audio
• SATA ports on board for HDD/SSD/ODD
• Internal USB, speaker, intrusion, and fan headers present
Condition Pulled from a working system. Board posted to BIOS — System Information and Memory Information screens photographed. Cooler, RAM, fans, speaker, and intrusion switch included as shown. Cosmetic wear consistent with used OEM parts (dust on cooler/fan, light marks on I/O shield). No case, PSU, storage, or OS included.
Notes for buyers
• This is the Mini Tower (MT) 9020 board, not SFF/USFF/Micro.
• RAM is 4x 4GB DDR3 as shown in BIOS. Speed reported at 1333 MHz.
• Exact i5 model not printed in the BIOS screenshot; it is a 4th gen LGA 1150 Core i5.
• Test in your chassis before final install. You will need a compatible 9020 MT power supply and case wiring.
• Service Tag D2TV9Z1 / Express Service Code 28469270845 for reference.
What you see is what you get. Photos are of the actual board and accessories being sold.
Ships carefully packed. Message with questions before offerding/buying.
