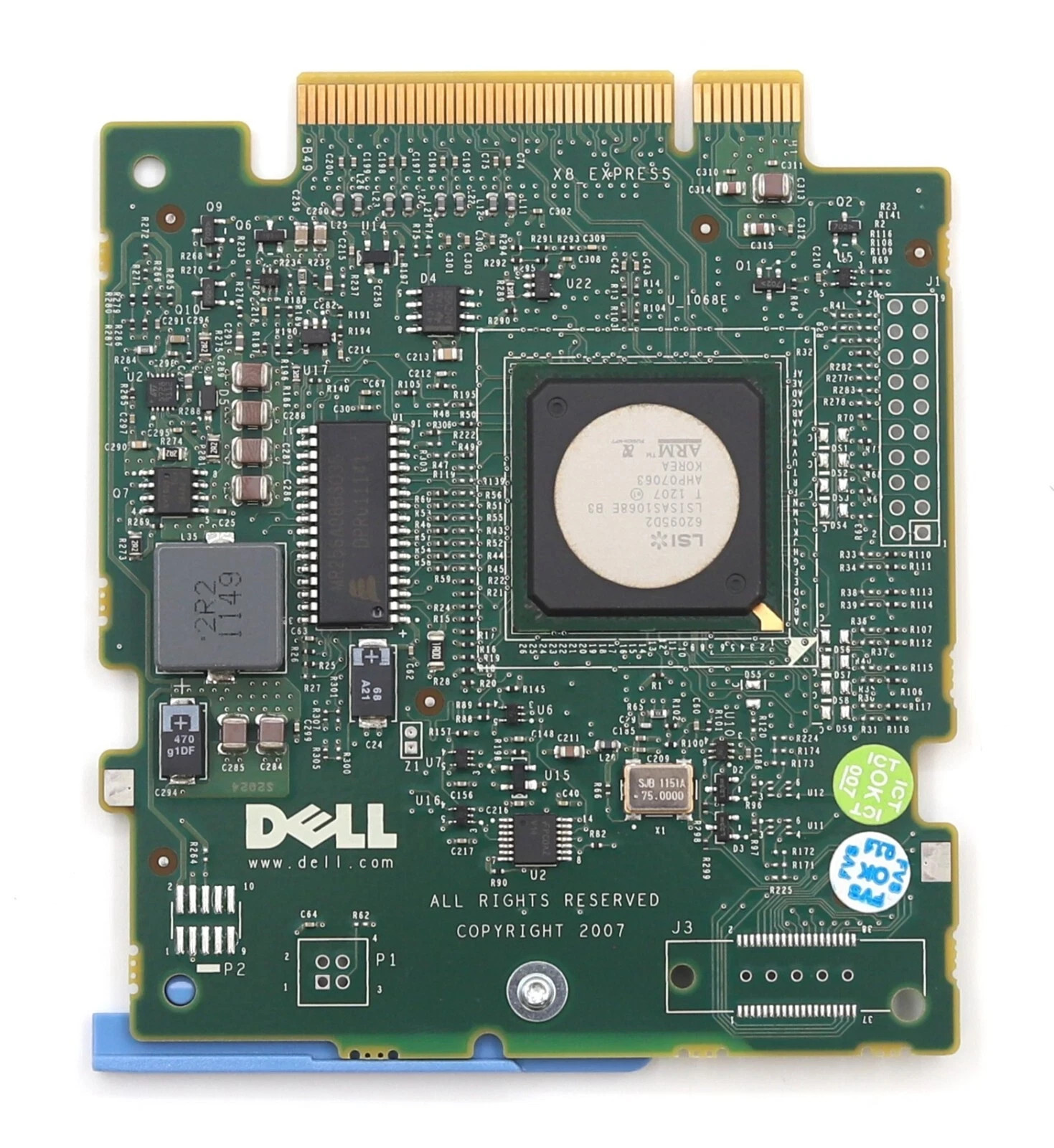

0HM030 Dell PERC 6/iR SAS/SATA RAID
Description:
Dell PERC 6/iR SAS/SATA
PCIe Modular RAID Controller CardFor Dell PowerEdge R210 R310 R410 R415 ServersFor Dell PowerEdge M600 M605 M610 M805
M905 Blade ServersPart Number(s)
Dell Part# 0HM030
Dell Part# HM030
Overview:The SAS 6/iR Integrated SAS Controller Card from Dell is designed to connect internal physical drives in servers. It supports two internal x4 SAS connectors - each containing four ports for a total bandwidth of 12 Gbps - per connector. This card supports RAID levels 0 (Integrated Striping) and 1 (Integrated Mirror). It has enhanced OMSS (Open Manage Server Administration Storage Management Services) support for select Poweredge (Non-SC) Servers. It provides a maximum speed of 3Gb/s half-duplex for each port and a maximum speed of 6Gb/s for full-duplex.Specifications:CategoryDell Number0HM030
Device TypeStorage Controller (RAID) - Plug-in CardInterface TypePCI ExpressController Interface TypeSAS RAID ControllerTotal Bandwidth12Gb/s per ConnectorSupported DevicesDisk Array (RAID)Connectors2 Internal x4 SAS ConnectorsRAID LevelRAID 0 1
