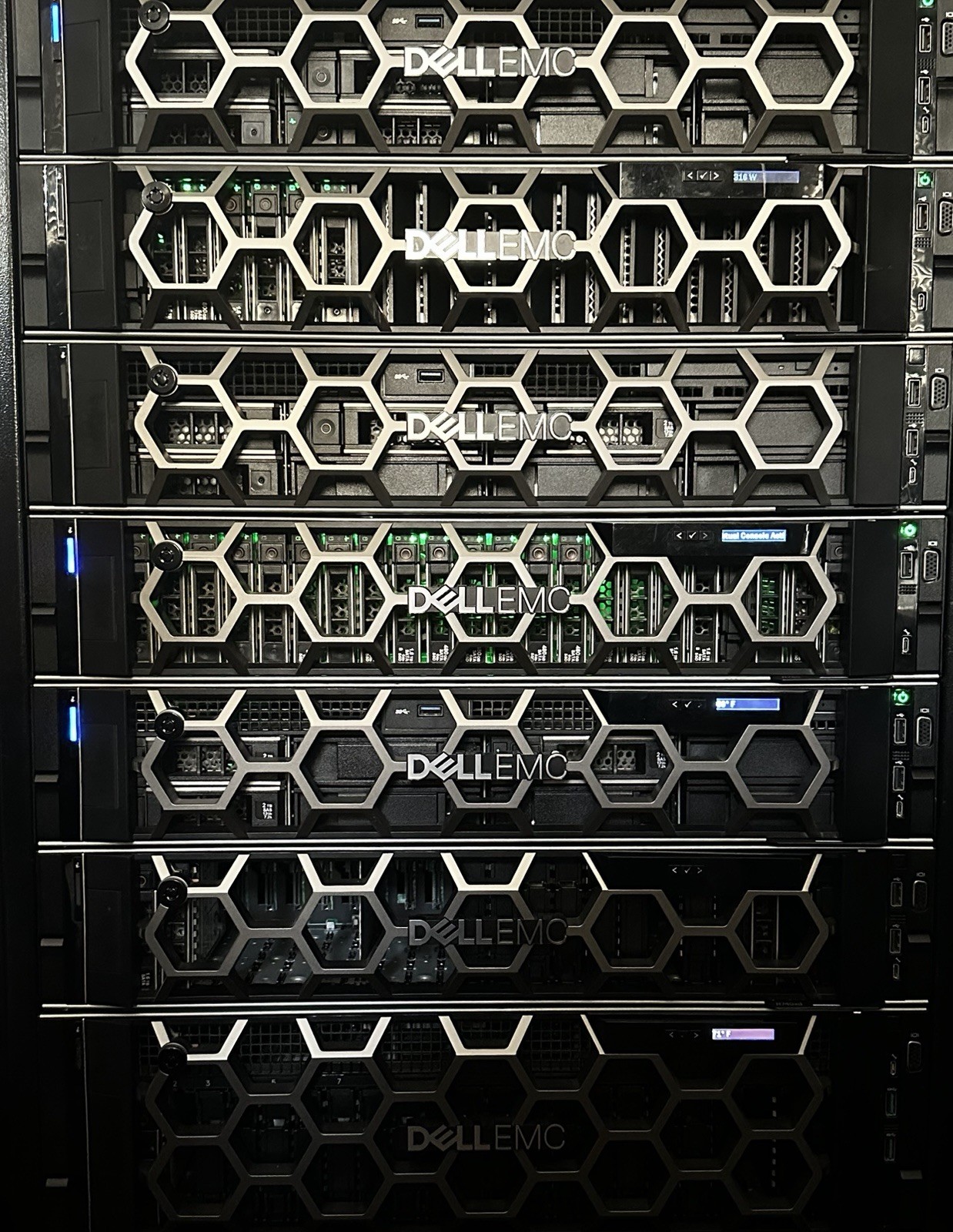

Dell PowerEdge R740xd 24-Bay SFF — Dual Xeon Gold 6152 — 12-NVMe Ready
This listing is for one Dell PowerEdge R740xd 2U rackmount server configured with dual Intel Xeon Gold 6152 processors, providing a total of 44 physical cores and 88 threads.
This premium 24-bay SFF configuration includes the Dell hardware required to support up to 12 front-accessible U.2 NVMe drives, including three Dell 235NK PCIe NVMe adapter cards, a Dell GHGTP Riser 1D, Dell 7M5Y6 12-NVMe backplane hardware, and the required Dell NVMe cabling.
The included NVMe hardware will be installed and configured for the supported 12-drive NVMe layout before shipment.
Server Configuration
* Model: Dell PowerEdge R740xd
* Form factor: 2U rackmount
* Front drive bays: 24 x 2.5-inch SFF
* NVMe support: Up to 12 front U.2 NVMe drives
* Processors: 2 x Intel Xeon Gold 6152
* Processor speed: 2.10 GHz base frequency
* Cores per processor: 22
* Total physical cores: 44
* Total threads: 88
* Memory: No RAM included
* RAID controller: Dell PERC H740P
* Boot controller: Dell BOSS-S1 dual M.2 SATA controller
* M.2 SSDs: Not included
* Remote management: Dell iDRAC9
* Power supplies: 2 x 1100W hot-plug redundant PSUs
* Cooling: Dell high-performance fan configuration
* Front bezel: Included
* Rack rails: Not included
* Operating system: Not included
12-NVMe Hardware Included
* 3 x Dell 235NK PCIe NVMe adapter cards
* 1 x Dell GHGTP Riser 1D
* Dell 7M5Y6 12-NVMe backplane hardware
* Required Dell NVMe cables
* Dell high-performance cooling components
No additional Dell conversion hardware should be required for the supported 12-drive NVMe configuration. NVMe drives are not included.
Networking
Includes the buyer’s choice of an available Dell/Broadcom rNDC network daughter card configured with:
* 2 x 10GbE RJ45 ports
* 2 x 1GbE RJ45 ports
Please message immediately after purchase to confirm the preferred available network-card option. Selection is subject to available inventory.
Included With Purchase
* 1 x Dell PowerEdge R740xd 24-bay SFF server
* 2 x Intel Xeon Gold 6152 processors
* Dell PERC H740P RAID controller
* Dell BOSS-S1 dual M.2 SATA controller
* 3 x Dell 235NK PCIe NVMe adapter cards
* Dell GHGTP Riser 1D
* Dell 7M5Y6 12-NVMe backplane hardware
* Required Dell NVMe cables
* Dell high-performance fans
* Buyer-selected available Dell/Broadcom rNDC
* 2 x 1100W power supplies
* Dell front bezel
* 2 x power cables
* USB keyboard
* USB mouse
Not Included
* RAM
* Hard drives
* SATA or SAS SSDs
* U.2 NVMe SSDs
* M.2 SATA SSDs
* Rack rails
* Operating system
* Drive caddies, unless specifically shown in the photographs
Condition and Testing
This is used enterprise equipment and may show normal cosmetic wear from prior rack installation, operation, removal, and storage.
The server powers on and completes POST. Hardware inventory and included components will be verified before shipment. Compatible memory must be installed before the server can be placed into service.
Service tags and serial numbers may be recorded for inventory control, warranty verification, and return verification.
Ideal Applications
This server is well suited for:
* VMware ESXi
* Proxmox VE
* Microsoft Hyper-V
* TrueNAS
* Ceph
* All-flash storage
* Virtualization clusters
* Database workloads
* Enterprise lab environments
* High-speed NVMe storage deployments
Enterprise Fleet Background
These servers were purchased together, operated in the same professional data-center environment, maintained as part of the same enterprise fleet, and later decommissioned together.
Multiple systems are available with different processor configurations, including:
* Intel Xeon Gold 6132
* Intel Xeon Gold 6140
* Intel Xeon Gold 6152
* Intel Xeon Platinum 8160
Please refer to the listing title and configuration details for the exact processors included with this purchase.
Available Service Tags
* 3GV7343
* 3GVZ243
* 3GY1343
* 3GXY243
* 3GV3343
* 3GW0343
* 3GW1343
* 3GXZ243
* 3GTZ243
* 3GT4343
* 3GT7343
* 3GY2343
This listing is for one server. The specific Service Tag shipped will correspond to the selected configuration and available inventory.
Buyers seeking a particular Service Tag or multiple matching systems should contact the seller before purchase.
Service Tags are provided so buyers may review Dell’s original factory configuration and available support history. Components may have been upgraded, replaced, or reconfigured since the servers were originally manufactured. The specifications in this listing describe the server as configured at the time of sale.
Shipping
The server will be carefully packed using protective materials appropriate for enterprise rackmount equipment.
Shipping cost may vary based on the buyer’s destination due to the server’s size and weight. Local pickup may also be available.
Only the components specifically listed in this description and shown in the listing photographs are included.
Additional high-resolution photographs, BIOS screenshots, iDRAC screenshots, and a Dell TSR Technical Support Report are available upon request.
