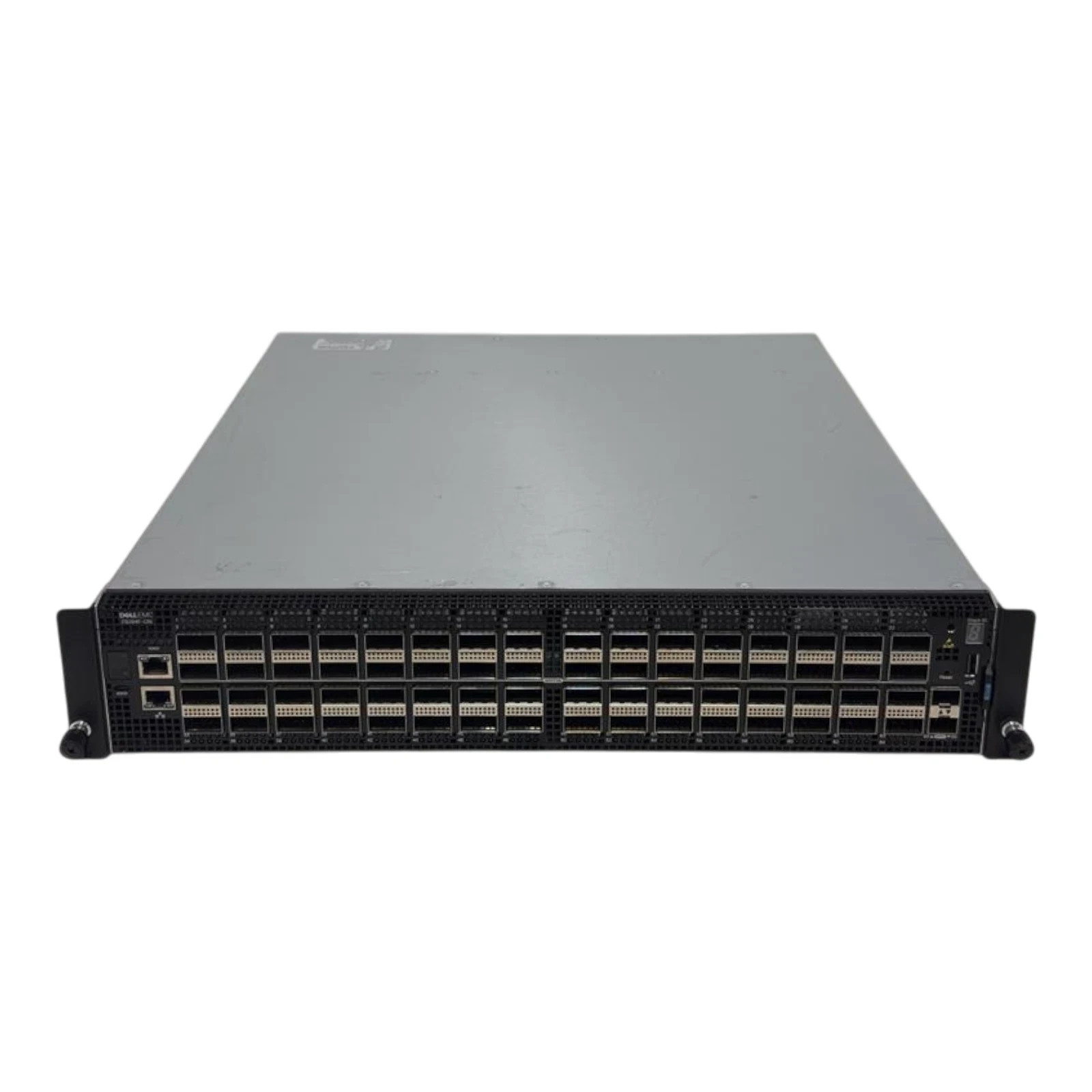

2 Year Warranty Fast Worldwide Delivery Trusted Seller In Stock & Ready to Ship Dell PowerSwitch Z9264F-ON RA 64x 100G QSFP28 + 2x 10G SFP+ 2U Switch OS10 What's Included 1 x Dell PowerSwitch Z9264F-ON RA 64x 100G QSFP28 + 2x 10G SFP+ 2U Switch OS10- Refurbished

Specification Delivery ReturnsPhysical

• 1 RJ45 console/management port with RS232 signalling
• 64x100GE QSFP28 ports + 2xSFP+ 10GE

Chassis

• Size: 2 RU, 337” (h) x 17.04” (w) x 20.08” (d) (8.56h x 44.2w x 51.0 cm d)
• Weight: 44lbs supply: 100–240 VAC 50/60 Hz
• Max Power consumption: 1104 Watts
• Typ. Power consumption: 340 Watts
• Max Operating specifications:
• AC Max. Operating specifications:
• Operating temperature: 32° to 113°F (0° to 45°C)
• Operating humidity: 10 to 90% (RH), non-condensing
• Max. Non-operating specifications:
• Storage temperature: –40° to 158°F (–40° to 70°C)
• Storage humidity: 5 to 95% (RH), non-condensing
• Fresh air Compliant to 45°C

Redundancy

• Hot swappable redundant power
• Hot swappable redundant fans

Performance

• Switch fabric capacity: 12.8Tbps (full-duplex)
• Forwarding capacity: 2900Mpps for 64<250 bytes, 4200Mpps when average packet size >250 bytes
• Latency: sub 500ns
• Packet buffer memory: 42MB
• CPU memory: 16GB
• MAC addresses: 160K
• ARP table: 128K
• IPv4 routes: 128K
• IPv6 routes: 64K
• Multicast hosts: 32K
• Link aggregation: 64 links per group, 128 groups
• Layer 2 VLANs: 4K
• MSTP: 64 instances
• LAG load balancing: Based on layer 2, IPv4 or IPv6 headers

IEEE compliance

• 802.1AB LLDP
• TIA-1057 LLDP-MED
• 802.3ad Link Aggregation
• 802.1D Bridging, STP
• 802.1p L2 Prioritization
• 802.1Q VLAN Tagging
• 802.1Qbb PFC
• 802.1Qaz ETS
• 802.1X Network Access Control
• 802.3ac Frame Extensions for VLAN Tagging
• 802.3x Flow Control

Layer2 Protocols

• 802.1D Compatible
• 802.1p L2 Prioritization
• 802.1Q VLAN Tagging
• 802.1s MSTP
• 802.1w RSTP
• 802.1t RPVST+
• VLT (Virtual Link Trunking)
• VRRP Active/Active
• RSTP & RPVST+
• Port Mirroring on VLT ports
• DCB, iSCSI, FSB on VLT
• RPM/ERPM over VLT
• VLT Minloss upgrade

RFC Compliance

• 768 UDP
• 793 TCP
• 854 Telnet
• 959 FTP
• 1321 MD5
• 1350 TFTP
• 2474 Differentiated Services
• 2698 Two Rate Three Color Marker
• 3164 Syslog
• 4254 SSHv2

General IPv4 Protocols

• 791 IPv4
• 792 ICMP
• 826 ARP
• 1027 Proxy ARP
• 1035 DNS (client)
• 1042 Ethernet Transmission
• 1191 Path MTU Discovery
• 1305 NTPv4
• 1519 CIDR
• 1588v2 PTP support
• 1812 Routers, Static Routes
• 1858 IP Fragment Filtering
• 2131 DHCPv4 (server and relay)
• 5798 VRRPv3
• 3021 31-bit Prefixes
• 1812 Requirements for IPv4 Routers
• 1918 Address Allocation for Private Internets
• 2474 Diffserv Field in IPv4 and Ipv6 Headers
• 2597 Assured Forwarding PHB Group
• 3195 Reliable Delivery for Syslog
• 3246 Expedited Forwarding PHB Group
• VRF (BGPv4/v6)

General IPv6 Protocols

• 1981 Path MTU for IPv6
• 2372 IPv6 Addressing
• 2460 IPv6 Protocol Specification
• 2461 Neighbor Discovery
• 2462 Stateless Address AutoConfig
• 2711 IPv6 Router alert
• 2463 ICMPv6
• 2464 Ethernet Transmission
• 2675 IPv6 Jumbograms
• 3484 Default Address Selection
• 3493 Basic Socket Interface
• 4291 Addressing Architecture
• 3542 Advanced Sockets API
• 3587 Global Unicast Address Format
• 4291 IPv6 Addressing
• 2464 Transmission of IPv6 Packets over Ethernet Networks
• 2711 IPv6 Router Alert Option
• 4007 IPv6 Scoped Address Architecture
• 4213 Transition Mechanisms for IPv6 Hosts and Routers
• 3633 DHCPv6 Relay
• IPv6 Static Routes

OSPF

• 1745 OSPF/BGP interaction
• 1765 OSPF Database overflow
• 2154 OSPF with DigitalSignatures
• 2328 OSPFv2
• 5340 OSPF for IPv6 (OSPFv3)
• 2370 Opaque LSA
• 3101 OSPF NSSA
• 4552 OSPFv3 IGMPv2 Snooping
• 3810 MLDv2 Snooping

Security

• 2865 RADIUS
• 3162 Radius and IPv6
• 3579 Radius support for EAP
• 3580 802.1X with RADIUS
• 3826 AES Cipher in SNMP
• 1492 TACACS (Authentication, Accounting)
• Control Plane, VTY & SNMP ACLs IP Access Control Lists
• IP Access Control Lists


Bootlog:OS10# show version
Dell EMC Networking OS10 Enterprise
Copyright (c) 1999-2021 by Dell Inc. All Rights Reserved.
OS Version: 10.5.0.6C1
Build Version: 10.5.0.6C1.7
Build Time: 2021-03-10T04:40:14+0000
System Type: Z9264F-ON
Architecture: x86_64
Up Time: 00:01:27
OS10# show inventory
Product : Z9264F-ON
Description : Z9264F-ON 64x100G, 2x10GbE SFP+ Interface Module
Software version : 10.5.0.6C1
Product Base :
Product Serial Number :
Product Part Number :Unit Type Part Number Rev Piece Part ID Svc Tag Exprs Svc 1 Z9264F-ON 0X6G06 A02 TW-0X6G06-DNT00-185-0058 3JGJV43 770 700 499 5
1 Z9264F-ON-PWR-1-AC-R 0VJ7DK A01 CN-0VJ7DK-DED00-04H-028T
1 Z9264F-ON-PWR-2-AC-R 0VJ7DK A01 CN-0VJ7DK-DED00-04H-028ROS10# show environmentUnit State up 48Thermal sensors
Unit Sensor-Id Sensor-name 1 PT_Mid_temp 34
1 2 NPU Near temp 33
1 3 PT Left temp 30
1 4 PT Right temp 30
1 5 ILET AF temp 29
1 6 CPU Near temp 31
1 7 PSU1 AF temp 30
1 8 PSU2 AF temp 29
1 9 TC Near temp 31
1 10 CPU temp 34
1 11 NPU temp sensor 48OS10# show license statusSystem Name : Dell EMC
Product Name : Z9264F-ON
Hardware Version : A02
Platform Name : x86_64-dellemc_z9264f_c3538-r0
PPID : TW0X6G06DNT001850058
Service Tag : 3JGJV43
Product Base :
Product Serial Number:
Product Part Number :
License Details
----------------
Software : OS10-Enterprise
Version : 10.5.0.6C1
License Type : PERPETUAL
License Duration: Unlimited
License Status : Active
License location:
