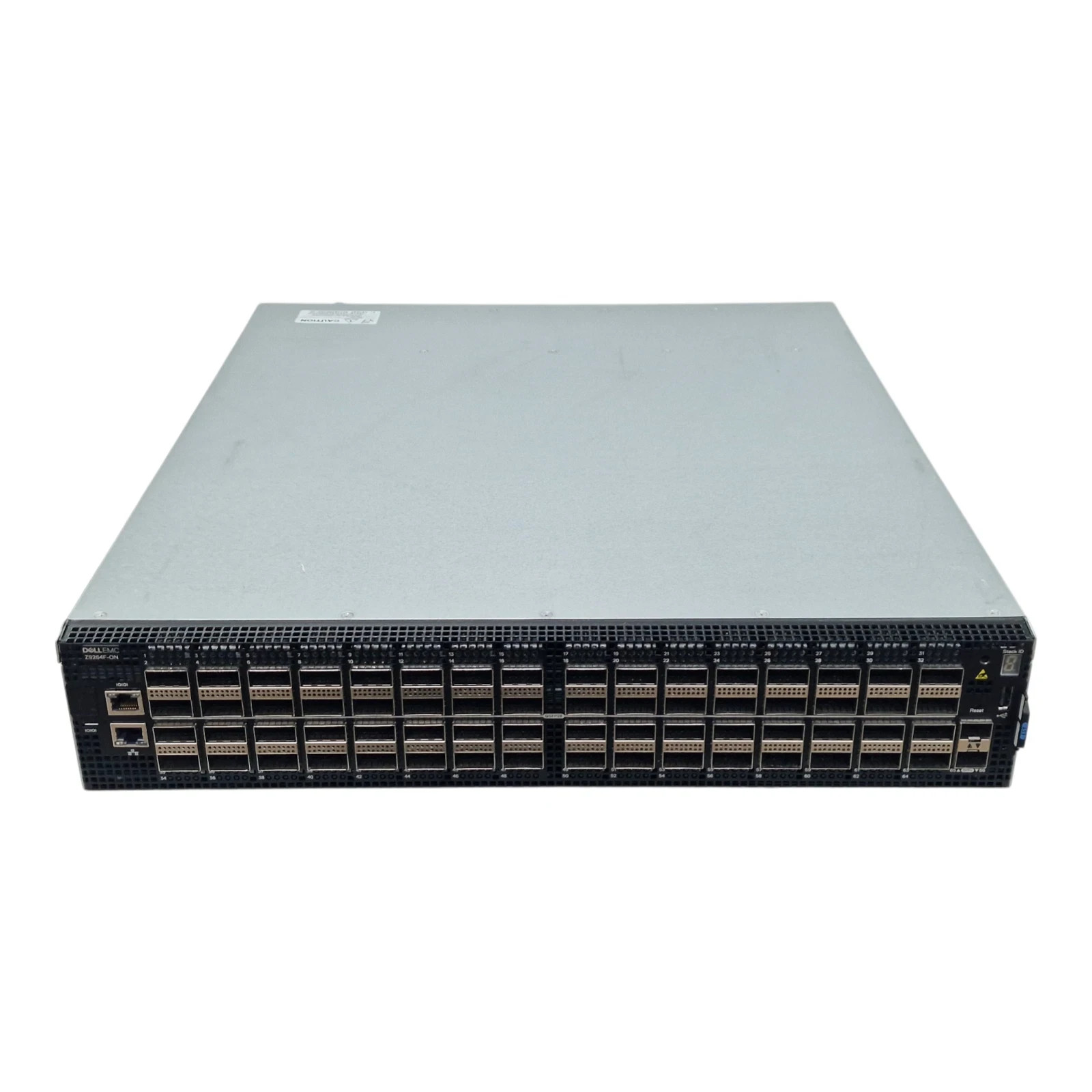

Dell PowerSwitch Z9264F-ON RA 64x 100G QSFP28 + 2x 10G SFP+ Port 2U Switch OPX
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Dell PowerSwitch Z9264F-ON RA 64x 100G QSFP28 + 2x 10G SFP+ Port 2U Switch OPX
Price: GB $1400.00
Dell PowerSwitch Z9264F-ON RA 64x 100G QSFP28 + 2x 10G SFP+ Port 2U Switch OPX
Model:Z9264F-ON
In Good Condition, Full Working OrderTestedReverse Airflow (Back to Front)
2 Year WarrantyOPX 3.2.0 InstalledIncluded
  • 1 xDell PowerSwitch Z9264F-ON RA 64x 100G QSFP28 + 2x 10G SFP+ Port 2U Switch OPX
    • 2 x 1600W Power SupplyVJ7DK
    • 4 x Fan RJ45 console/management port with RS232 signalling
    • 64x100GE QSFP28 ports + 2xSFP+ 10GE
    Chassis
    • Size: 2 RU, 337” (h) x 17.04” (w) x 20.08” (d) (8.56h x 44.2w x 51.0 cm d)
    • Weight: 44lbs supply: 100–240 VAC 50/60 Hz
    • Max Power consumption: 1104 Watts
    • Typ. Power consumption: 340 Watts
    • Max Operating specifications:
    • AC Max. Operating specifications:
      • Operating temperature: 32° to 113°F (0° to 45°C)
      • Operating humidity: 10 to 90% (RH), non-condensing
    • Max. Non-operating specifications:
      • Storage temperature: –40° to 158°F (–40° to 70°C)
      • Storage humidity: 5 to 95% (RH), non-condensing
    • Fresh air Compliant to 45°C
    Redundancy
    • Hot swappable redundant power
    • Hot swappable redundant fans
    Performance
    • Switch fabric capacity: 12.8Tbps (full-duplex)
    • Forwarding capacity: 2900Mpps for 64<250 bytes, 4200Mpps when average packet size >250 bytes
    • Latency: sub 500ns
    • Packet buffer memory: 42MB
    • CPU memory: 16GB
    • MAC addresses: 160K
    • ARP table: 128K
    • IPv4 routes: 128K
    • IPv6 routes: 64K
    • Multicast hosts: 32K
    • Link aggregation: 64 links per group, 128 groups
    • Layer 2 VLANs: 4K
    • MSTP: 64 instances
    • LAG load balancing: Based on layer 2, IPv4 or IPv6 headers
    IEEE compliance
    • 802.1AB LLDP
    • TIA-1057 LLDP-MED
    • 802.3ad Link Aggregation
    • 802.1D Bridging, STP
    • 802.1p L2 Prioritization
    • 802.1Q VLAN Tagging
    • 802.1Qbb PFC
    • 802.1Qaz ETS
    • 802.1X Network Access Control
    • 802.3ac Frame Extensions for VLAN Tagging
    • 802.3x Flow Control
    Layer2 Protocols
    • 802.1D Compatible
    • 802.1p L2 Prioritization
    • 802.1Q VLAN Tagging
    • 802.1s MSTP
    • 802.1w RSTP
    • 802.1t RPVST+
    • VLT (Virtual Link Trunking)
    • VRRP Active/Active
    • RSTP & RPVST+
    • Port Mirroring on VLT ports
    • DCB, iSCSI, FSB on VLT
    • RPM/ERPM over VLT
    • VLT Minloss upgrade
    RFC Compliance
    • 768 UDP
    • 793 TCP
    • 854 Telnet
    • 959 FTP
    • 1321 MD5
    • 1350 TFTP
    • 2474 Differentiated Services
    • 2698 Two Rate Three Color Marker
    • 3164 Syslog
    • 4254 SSHv2
    General IPv4 Protocols
    • 791 IPv4
    • 792 ICMP
    • 826 ARP
    • 1027 Proxy ARP
    • 1035 DNS (client)
    • 1042 Ethernet Transmission
    • 1191 Path MTU Discovery
    • 1305 NTPv4
    • 1519 CIDR
    • 1588v2 PTP support
    • 1812 Routers, Static Routes
    • 1858 IP Fragment Filtering
    • 2131 DHCPv4 (server and relay)
    • 5798 VRRPv3
    • 3021 31-bit Prefixes
    • 1812 Requirements for IPv4 Routers
    • 1918 Address Allocation for Private Internets
    • 2474 Diffserv Field in IPv4 and Ipv6 Headers
    • 2597 Assured Forwarding PHB Group
    • 3195 Reliable Delivery for Syslog
    • 3246 Expedited Forwarding PHB Group
    • VRF (BGPv4/v6)
    General IPv6 Protocols
    • 1981 Path MTU for IPv6
    • 2372 IPv6 Addressing
    • 2460 IPv6 Protocol Specification
    • 2461 Neighbor Discovery
    • 2462 Stateless Address AutoConfig
    • 2711 IPv6 Router alert
    • 2463 ICMPv6
    • 2464 Ethernet Transmission
    • 2675 IPv6 Jumbograms
    • 3484 Default Address Selection
    • 3493 Basic Socket Interface
    • 4291 Addressing Architecture
    • 3542 Advanced Sockets API
    • 3587 Global Unicast Address Format
    • 4291 IPv6 Addressing
    • 2464 Transmission of IPv6 Packets over Ethernet Networks
    • 2711 IPv6 Router Alert Option
    • 4007 IPv6 Scoped Address Architecture
    • 4213 Transition Mechanisms for IPv6 Hosts and Routers
    • 3633 DHCPv6 Relay
    • IPv6 Static Routes
    OSPF
    • 1745 OSPF/BGP interaction
    • 1765 OSPF Database overflow
    • 2154 OSPF with DigitalSignatures
    • 2328 OSPFv2
    • 5340 OSPF for IPv6 (OSPFv3)
    • 2370 Opaque LSA
    • 3101 OSPF NSSA
    • 4552 OSPFv3 IGMPv2 Snooping
    • 3810 MLDv2 Snooping
    Security
    • 2865 RADIUS
    • 3162 Radius and IPv6
    • 3579 Radius support for EAP
    • 3580 802.1X with RADIUS
    • 3826 AES Cipher in SNMP
    • 1492 TACACS (Authentication, Accounting)
    • Control Plane, VTY & SNMP ACLs IP Access Control Lists
    • IP Access Control Lists
    BGP
    • 1997 Communities
    • 2385 MD5
    • 2439 Route Flap Damping
    • 2796 Route Reflection
    • 2918 Route Refresh
    • 3065 Confederations
    • 4271 BGP-4
    • 2545 BGP-4 Multiprotocol Extensions for IPv6 Inter-Domain Routing
    • 2858 Multiprotocol Extensions
    • 4360 Extended Communities
    • 4893 4-byte ASN
    • 5396 4-byte ASN Representation
    • 5492 Capabilities ADD PATH
    Linux Distribution
    • Debian Linux version 8
    • Linux Kernel 3.16
    Network Management and Management support (Telnet, FTP, TACACS, RADIUS, SSH, NTP)
  • Syslog
  • Port Mirroring
  • RPM/ERPM
  • 3176 SFlow
  • Support Assist (Phone Home)
  • RestConf APIs (Layer 2 features)
  • XML Schema
  • CLI Commit (Scratchpad)
  • Uplink Failure Detection
  • Object Tracking
  • offerirectional Forwarding Detection Plane Services APIs
  • Linux Utilities and Scripting Tools
  • CLI Automation (Multiline Alias)
  • Zero Touch Deployment (ZTD)
  • Ansible, Puppet, Chef, SaltStack
Quality of Service
  • Prefix List
  • Route-Map
  • Rate Shaping (Egress)
  • Rate Policing (Ingress)
  • Scheduling Algorithms
    • Round Robin
    • Weighted Round Robin
    • Deficit Round Robin
    • Strict Priority
  • Weighted Random Early Detect
Data center bridging
  • 802.1Qbb Priority-Based Flow Control
  • 802.1Qaz Enhanced Transmission Selection (ETS)
  • Explicit Congestion Notification
  • Data Center Bridging eXchange (DCBx)
  • DCBx Application TLV (iSCSI, FCoE)
  • RoCEv2
Software Defined Networking
  • OpenFlow 1.3 (Native)
MIBS
  • IP MIB
  • IP Forward MIB
  • Host Resources MIB
  • IF MIB
  • LLDP EXT1/3 MIB
  • Entity MIB
  • LAG MIB
  • Dell-Vendor MIB
  • TCP MIB
  • UDP MIB
  • SNMPv2 60950-1, Second Edition
  • EN 60950-1, Second Edition
  • IEC 60950-1, Second Edition Including All National Deviations and Group Differences
  • EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
  • EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
  • FDA Regulation 21 CFR 1040.10 and Zealand: AS/NZS CISPR 22: 2006, Class A
  • Canada: ICES-003, Issue-4, Class A
  • Europe: EN 55022: 2006+A1:2007 (CISPR 22: 2006), Class A
  • Japan: VCCI V3/2009 Class A
  • USA: FCC CFR 47 Part 15, Subpart B: 2011, Class A
  • Immunity
    • EN 300 386 V1.4.1:2008 for Network Equipment
    • EN 55024: 1998 + A1: 2001 + A2: 2003
    • EN 61000-3-2: Harmonic Current Emissions
    • EN 61000-3-3: Voltage Fluctuations and Flicker
    • EN 61000-4-2: ESD
    • EN 61000-4-3: Radiated Immunity
    • EN 61000-4-4: EFT
    • EN 61000-4-5: Surge
    • EN 61000-4-6: Low Frequency Conducted S Series components are EU RoHS with US Trade Agreements Act (TAA) compliance
    • USGv6 Host and Router Certified on Dell Networking OS 9.5 and greater
    • IPv6 Ready for both Host and Router
    • UCR DoD APL (core and distribution ALSAN switch
    Boot Log:
