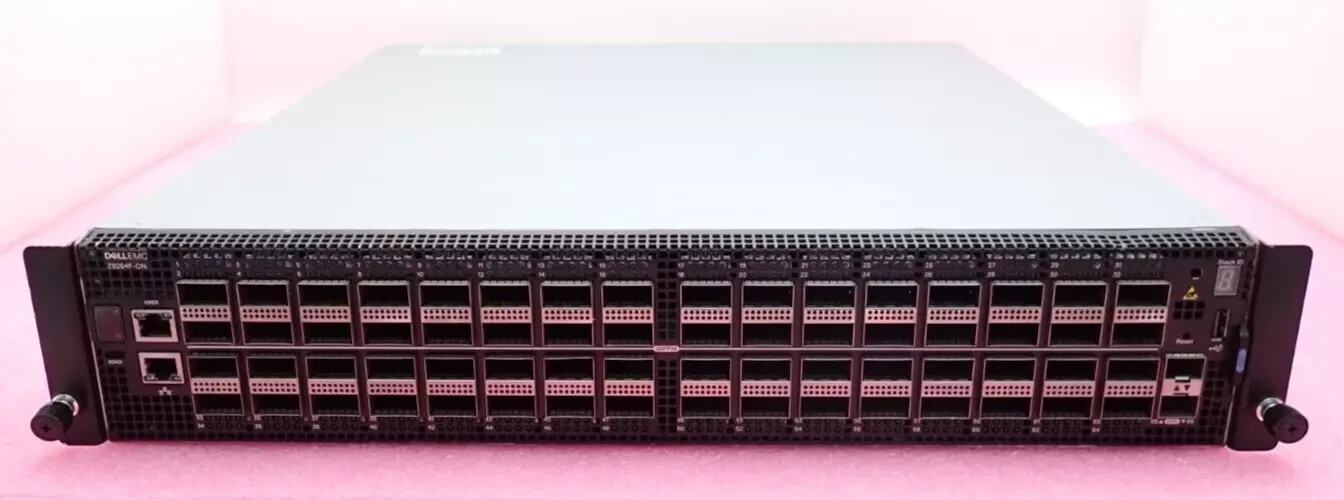

Dell PowerSwitch Z9264F-ON RA 64x 100G QSFP28 + 2x 10G SFP+ Port 2U Switch OS10
Model:Z9264F-ON
In Good Condition, Full Working OrderTestedReverse Airflow (Back to Front)
2 Year Warranty
OS10 Perpetual Permanent License InstalledIncluded

• 1 xDell PowerSwitch Z9264F-ON RA 64x 100G QSFP28 + 2x 10G SFP+ Port 2U Switch OS10
• 2 x 1600W Power SupplyVJ7DK

• 4 x Fan RJ45 console/management port with RS232 signaling
• 64x100GE QSFP28 ports + 2xSFP+ 10GE
Chassis
• Size: 2 RU, 337” (h) x 17.04” (w) x 20.08” (d) (8.56h x 44.2w x 51.0 cm d)
• Weight: 44lbs supply: 100–240 VAC 50/60 Hz
• Max Power consumption: 1104 Watts
• Typ. Power consumption: 340 Watts
• Max Operating specifications:
• AC Max. Operating specifications:
• Operating temperature: 32° to 113°F (0° to 45°C)
• Operating humidity: 10 to 90% (RH), non-condensing
• Max. Non-operating specifications:
• Storage temperature: –40° to 158°F (–40° to 70°C)
• Storage humidity: 5 to 95% (RH), non-condensing
• Fresh air Compliant to 45°C
Redundancy
• Hot swappable redundant power
• Hot swappable redundant fans
Performance
• Switch fabric capacity: 12.8Tbps (full-duplex)
• Forwarding capacity: 2900Mpps for 64<250 bytes, 4200Mpps when average packet size >250 bytes
• Latency: sub 500ns
• Packet buffer memory: 42MB
• CPU memory: 16GB
• MAC addresses: 160K
• ARP table: 128K
• IPv4 routes: 128K
• IPv6 routes: 64K
• Multicast hosts: 32K
• Link aggregation: 64 links per group, 128 groups
• Layer 2 VLANs: 4K
• MSTP: 64 instances
• LAG load balancing: Based on layer 2, IPv4 or IPv6 headers
IEEE compliance
• 802.1AB LLDP
• TIA-1057 LLDP-MED
• 802.3ad Link Aggregation
• 802.1D Bridging, STP
• 802.1p L2 Prioritization
• 802.1Q VLAN Tagging
• 802.1Qbb PFC
• 802.1Qaz ETS
• 802.1X Network Access Control
• 802.3ac Frame Extensions for VLAN Tagging
• 802.3x Flow Control
Layer2 Protocols
• 802.1D Compatible
• 802.1p L2 Prioritization
• 802.1Q VLAN Tagging
• 802.1s MSTP
• 802.1w RSTP
• 802.1t RPVST+
• VLT (Virtual Link Trunking)
• VRRP Active/Active
• RSTP & RPVST+
• Port Mirroring on VLT ports
• DCB, iSCSI, FSB on VLT
• RPM/ERPM over VLT
• VLT Minloss upgrade
RFC Compliance
• 768 UDP
• 793 TCP
• 854 Telnet
• 959 FTP
• 1321 MD5
• 1350 TFTP
• 2474 Differentiated Services
• 2698 Two Rate Three Color Marker
• 3164 Syslog
• 4254 SSHv2
General IPv4 Protocols
• 791 IPv4
• 792 ICMP
• 826 ARP
• 1027 Proxy ARP
• 1035 DNS (client)
• 1042 Ethernet Transmission
• 1191 Path MTU Discovery
• 1305 NTPv4
• 1519 CIDR
• 1588v2 PTP support
• 1812 Routers, Static Routes
• 1858 IP Fragment Filtering
• 2131 DHCPv4 (server and relay)
• 5798 VRRPv3
• 3021 31-bit Prefixes
• 1812 Requirements for IPv4 Routers
• 1918 Address Allocation for Private Internets
• 2474 Diffserv Field in IPv4 and Ipv6 Headers
• 2597 Assured Forwarding PHB Group
• 3195 Reliable Delivery for Syslog
• 3246 Expedited Forwarding PHB Group
• VRF (BGPv4/v6)
General IPv6 Protocols
• 1981 Path MTU for IPv6
• 2372 IPv6 Addressing
• 2460 IPv6 Protocol Specification
• 2461 Neighbor Discovery
• 2462 Stateless Address AutoConfig
• 2711 IPv6 Router alert
• 2463 ICMPv6
• 2464 Ethernet Transmission
• 2675 IPv6 Jumbograms
• 3484 Default Address Selection
• 3493 Basic Socket Interface
• 4291 Addressing Architecture
• 3542 Advanced Sockets API
• 3587 Global Unicast Address Format
• 4291 IPv6 Addressing
• 2464 Transmission of IPv6 Packets over Ethernet Networks
• 2711 IPv6 Router Alert Option
• 4007 IPv6 Scoped Address Architecture
• 4213 Transition Mechanisms for IPv6 Hosts and Routers
• 3633 DHCPv6 Relay
• IPv6 Static Routes
OSPF
• 1745 OSPF/BGP interaction
• 1765 OSPF Database overflow
• 2154 OSPF with DigitalSignatures
• 2328 OSPFv2
• 5340 OSPF for IPv6 (OSPFv3)
• 2370 Opaque LSA
• 3101 OSPF NSSA
• 4552 OSPFv3 IGMPv2 Snooping
• 3810 MLDv2 Snooping
Security
• 2865 RADIUS
• 3162 Radius and IPv6
• 3579 Radius support for EAP
• 3580 802.1X with RADIUS
• 3826 AES Cipher in SNMP
• 1492 TACACS (Authentication, Accounting)
• Control Plane, VTY & SNMP ACLs IP Access Control Lists
• IP Access Control Lists
BGP
• 1997 Communities
• 2385 MD5
• 2439 Route Flap Damping
• 2796 Route Reflection
• 2918 Route Refresh
• 3065 Confederations
• 4271 BGP-4
• 2545 BGP-4 Multiprotocol Extensions for IPv6 Inter-Domain Routing
• 2858 Multiprotocol Extensions
• 4360 Extended Communities
• 4893 4-byte ASN
• 5396 4-byte ASN Representation
• 5492 Capabilities ADD PATH
Linux Distribution
• Debian Linux version 8
• Linux Kernel 3.16
Network Management and Management support (Telnet, FTP, TACACS, RADIUS, SSH, NTP)
• Syslog
• Port Mirroring
• RPM/ERPM
• 3176 SFlow
• Support Assist (Phone Home)
• RestConf APIs (Layer 2 features)
• XML Schema
• CLI Commit (Scratchpad)
• Uplink Failure Detection
• Object Tracking
• offerirectional Forwarding Detection Plane Services APIs
• Linux Utilities and Scripting Tools
• CLI Automation (Multiline Alias)
• Zero Touch Deployment (ZTD)
• Ansible, Puppet, Chef, SaltStack

Quality of Service

• Prefix List
• Route-Map
• Rate Shaping (Egress)
• Rate Policing (Ingress)
• Scheduling Algorithms
• Round Robin
• Weighted Round Robin
• Deficit Round Robin
• Strict Priority
• Weighted Random Early Detect

Data center bridging

• 802.1Qbb Priority-Based Flow Control
• 802.1Qaz Enhanced Transmission Selection (ETS)
• Explicit Congestion Notification
• Data Center Bridging eXchange (DCBx)
• DCBx Application TLV (iSCSI, FCoE)
• RoCEv2

Software Defined Networking

• OpenFlow 1.3 (Native)

MIBS

• IP MIB
• IP Forward MIB
• Host Resources MIB
• IF MIB
• LLDP EXT1/3 MIB
• Entity MIB
• LAG MIB
• Dell-Vendor MIB
• TCP MIB
• UDP MIB
• SNMPv2 60950-1, Second Edition
• EN 60950-1, Second Edition
• IEC 60950-1, Second Edition Including All National Deviations and Group Differences
• EN 60825-1 Safety of Laser Products Part 1: Equipment Classification Requirements and User’s Guide
• EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communication Systems
• FDA Regulation 21 CFR 1040.10 and Zealand: AS/NZS CISPR 22: 2006, Class A
• Canada: ICES-003, Issue-4, Class A
• Europe: EN 55022: 2006+A1:2007 (CISPR 22: 2006), Class A
• Japan: VCCI V3/2009 Class A
• USA: FCC CFR 47 Part 15, Subpart B: 2011, Class A

Immunity

• EN 300 386 V1.4.1:2008 for Network Equipment
• EN 55024: 1998 + A1: 2001 + A2: 2003
• EN 61000-3-2: Harmonic Current Emissions
• EN 61000-3-3: Voltage Fluctuations and Flicker
• EN 61000-4-2: ESD
• EN 61000-4-3: Radiated Immunity
• EN 61000-4-4: EFT
• EN 61000-4-5: Surge
• EN 61000-4-6: Low Frequency Conducted S Series components are EU RoHS with US Trade Agreements Act (TAA) compliance
• USGv6 Host and Router Certified on Dell Networking OS 9.5 and greater
• IPv6 Ready for both Host and Router
• UCR DoD APL (core and distribution ALSAN switch

Boot Log:

OS10#show version
Dell EMC Networking OS10 Enterprise
Copyright (c) 1999-2020 by Dell Inc. All Rights Reserved.
OS Version: 10.5.1.4
Build Version: 10.5.1.4.249
Build Time: 2020-07-22T21:29:21+0000
System Type: Z9264F-ON
Architecture: x86_64
Up Time: 00:02:55OS10#show inventory
Product: Z9264F-ON
Description: Z9264F-ON 64x100G, 2x10GbE SFP+ Interface Module
Software version: 10.5.1.4
Product Base:
Product Serial Number :
Product Part Number:Unit TypePart NumberRevPiece Part IDSvc TagExprs Svc 213 647 license statusSystem Name:Dell EMC
Product Name:Z9264F-ON
Hardware Version:A01
Platform Tag:81RRNK2
Product Base:
Product Serial Number:
Product Part Number:
License Type:PERPETUAL
License Duration:Unlimited
License Status:Active
License system briefNode Id: 1
MAC: 20:04:0f:2b:e7:42-- Unit Power Supplies Fan Status 23870up2upREVERSE13780up
23870up3upREVERSE13870up
23870up4upREVERSE13870up
23780up
OS10#show Near temp28
13PT Left temp21
14PT Right temp21
15ILET AF temp18
16CPU Near temp22
17PSU1 AF temp20
18PSU2 AF temp20
19TC Near temp22
110CPU temp24
111NPU temp sensor38
