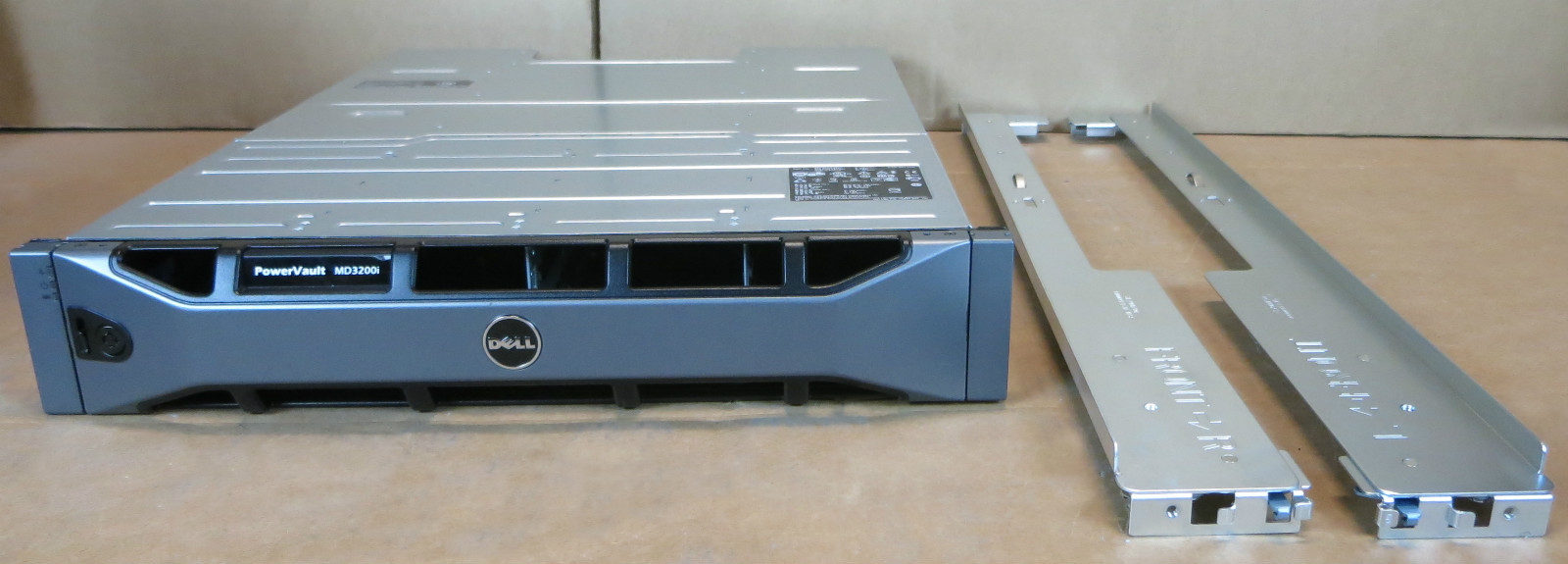

Dell PowerVault MD3200i iSCSI SAN SAS Storage Array 12 Empty Bays 2U DAS + Rails

In Good Condition, Full Working Order

2 x 770D8 Quad Port iSCSI Controllers, 2 x 600W Power Supplies

Support for RAID levels 0, 1, 10, 5, 6
Up to 192 physical disks per group in RAID 0, 1, 10
Up to 30 physical disks per group in RAID 5, 6
Up to 512 virtual disks

MD3200i

3.5"--15,000 RPM SAS drives available in 300GB, 450GB and 600GB3.5" 10,000 RPM SAS drives available in 300GB, 600GB and 900GB3.5"--7,200 RPM Near-line SAS drives available in 500GB, 1TB, 2TB 3TB and 4TBSolid State Drive (SSD) available in 200GB and 400GB (available with 3.5" HDD carriersSupports up to 64 servers when configured with 1Gigabyte iSCSIDual controllers operate in an active-active environment mirroring each other’s cache
Cache protection is provided via flash memory for permanent data protection
Dynamic Disk Pools (DDP) eliminates the need for complex RAID management while optimizing data protection, and can be used along side of existing RAID configurationsManagement

• 2nd generation multi-protocol Modular Disk Storage Manager, Java based user interface
  Multi-path graphical software provides failover management of redundant data paths between the server and storage arrayMD3200i and MD3220i Standard Features:
  Dynamic Disk Pools- Optional configuration to RAID disk management
  VAAI support- Available for customers using VMware vStorage APIs for Array Integration,
  vCenter Plugin- Available for customers using VMware vSphere
  VASA- vStorage API for Storage Awareness, available for use in conjunction with the vCenter Plugin
  SRA-Sight Recover Manager, available for use with vCenter Plugin
  ALUA-Active Active LUN Access
  Supports Self Encrypting Drives (SED) that provide an additional level of data protection
  Thin Provisioning- Allocate and consume physical storage capacity as needed
  Try and Buy licensiAg- 90 day trial license of premium feature software

Back-Panel Connectors

• Back-Panel Connectors
  Four RJ-45 1Gb Ethernet for host connectivity,
  One 6Gb SAS for drive expansion,
  One RJ-45 1Gb Ethernet for remote management;
  One PS/2 Serial W peak output

  Heat Dissipation (max)
  150 W

  Input Voltage Range
  90 to 264 VAC

  Frequency range
  47 to 63 Hz

  Maximum Input Current at Rated Power
  55 A for 10ms or less, 25 A for 10-150ms

  Available hard drive power
  3.5" drive: 25 Watts
  2.5" drive: 12 Watts

Consolidate with flexible, high-capacity storage
Simplify the challenges of large-data storage, management and access with a Dell™ PowerVault™ MD3 iSCSI array series.
Find Out MoreHigh density in a smaller footprint with PowerVault MD3260i
High performance with the high density of the 60-drive PowerVault™ MD3260i dense array, you can significantly increase your storage capacity without increasing your data center’s footprint.
Find Out MoreProtect your data with optional PowerVault capabilities
All PowerVault MD3 array series offer premium feature options, including data protection, data replication, encryption and secure data removal.
Find Out More

• Up to twelve (12) 3.5 inch SAS, Near-line SAS and SSD drives
• Supports up to 64 hosts
• Expand capacity with up to eight (8) MD1200 or MD1220 expansion enclosures

FAST FREE WW DHLDELIVERY

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£1000 Excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
