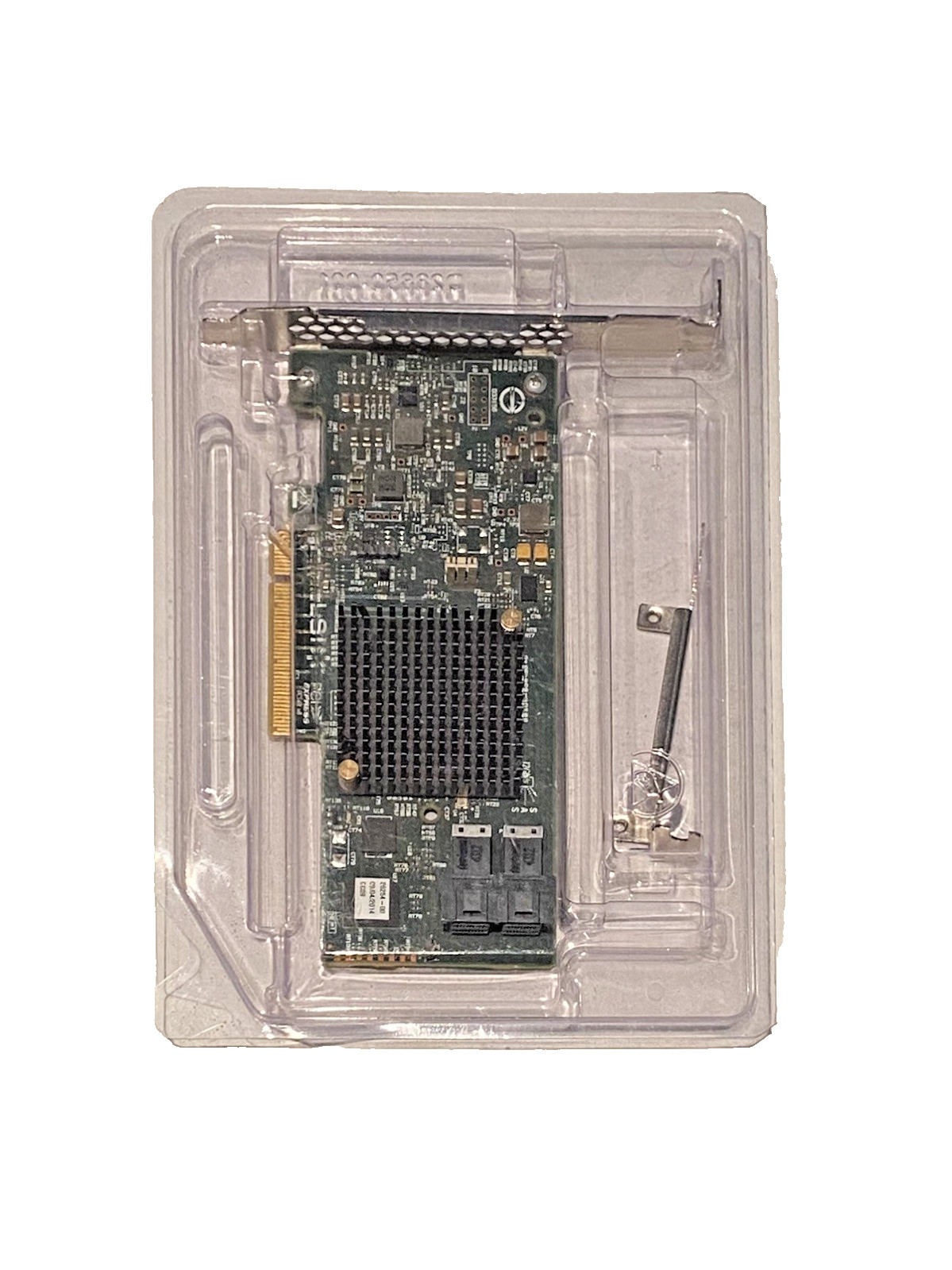

Dell DP/N 0WFN6R delivered 12Gbps SAS RAID to the Precision T5810, Precision T7810, and Precision T7910 via two x4 SFF-8643 Mini-SAS HD connectors. It has also been used in PowerEdge and Precision applications as well as other systems with an available PCIe x8 slot. Includes full height and low profile brackets.
Key Specifications:

• Interface: PCIe 3.0 ×8
• Drive Interface: 12 Gb/s SAS and 6 Gb/s SATA
• Internal Ports: 2 × SFF-8643 Mini-SAS HD
• Maximum Drive Support: Up to 8 direct-attached SAS/SATA drives
• RAID Levels: 0, 1, 5, 10, and 50
• Form Factor: PCIe add-in card
• Controller Family: LSI MegaRAID 9341
• Cache: N/A

Key Advantages:

• High performance with 12Gb/s data transfer rates
• PCI Express® 3.0 host interface drives superior system performance
• Delivers robust, yet simple RAID functionality
• Flexible SATA+SAS array architecture optimizes cost
• Includes JBOD Mode support applications
• Internal storage configurations
• 1U/2U rack servers
• File, Web, database and email servers
• High-performance workstations

Typical Uses:

• Direct-attach, internal SAS or SATA hard disk drives (HDDs) and solid state drives (SSDs)
• High volume, “warm data” access

Key Features:

• Eight internal 12Gb/s SATA+SAS ports
• x8 PCI Express 3.0 host interface
• Two x4 SFF-8643 mini-SAS HD internal connectors
• LSISAS3008 PowerPC 476 controller @ 1.2GHz
• RAID 0, 1, 5, 10, 50 and JBOD mode
• Low-profile form factor
• Supports up to 64 devices in JBOD mode
• Up to 32 physical devices in RAID mode
• Powerful device monitoring and maintenance capabilities
