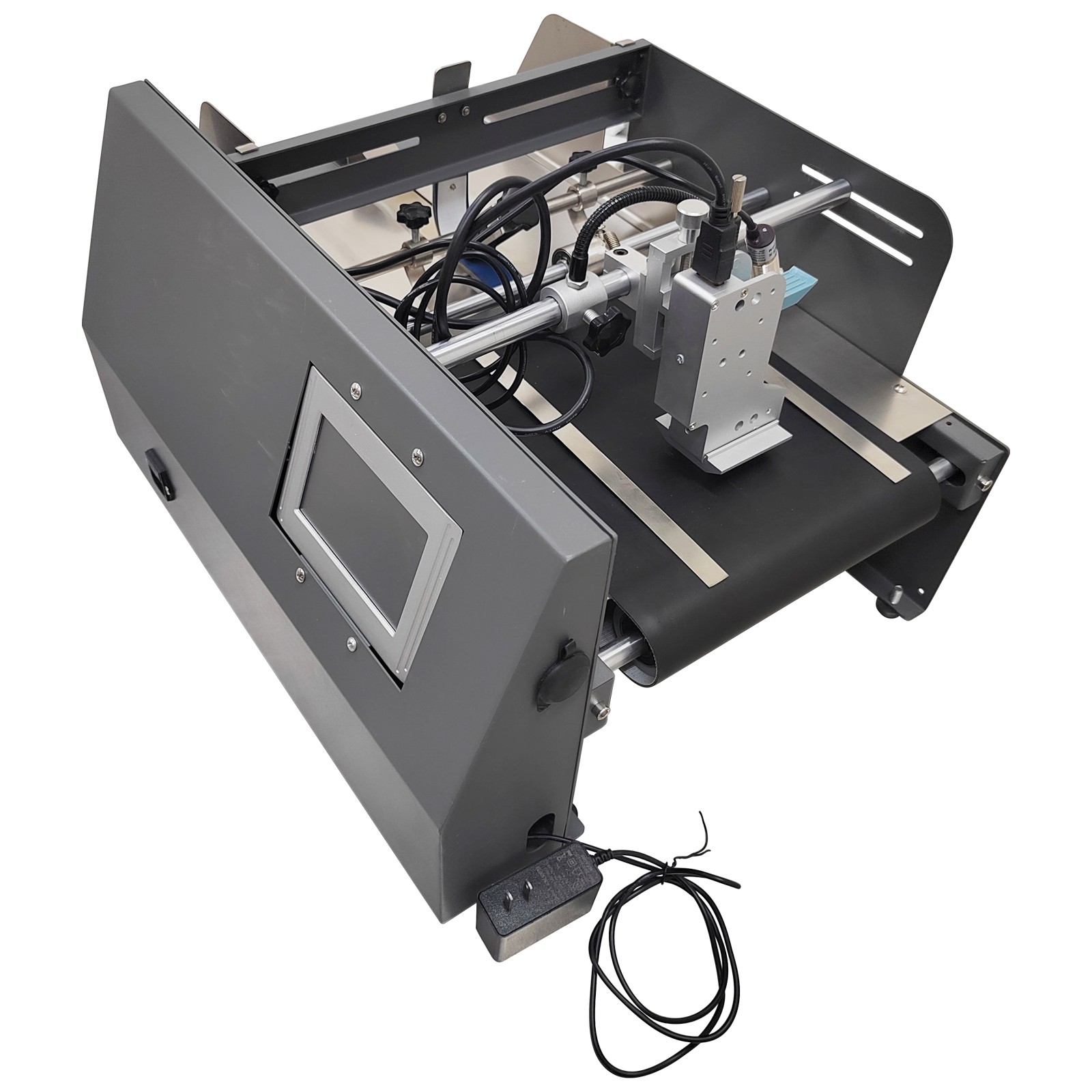

新建网页 2 Desktop Inkjet Printer and Page Splitting Automatic Paging Machine Feeder 220V

The automatic paging and inkjet printing integrated machine is a professional printing device specifically designed for automatic paging and inkjet printing. It is used to automatically separate the stacked packaging bags or cards, send each single piece or page to the conveyor belt, and then print the production date, batch number, anti-counterfeiting marks, patterns and other information through the inkjet printer, thereby reducing the complexity of manual paging, giving full play to the advantages of high-speed printing of the inkjet printer, improving the inkjet printing efficiency, and facilitating production operation and management. The automatic paging and inkjet printing integrated machine can be widely applied to the industries of packaging, printing, food processing, electronics, light manufacturing, etc. Power supply AC220V Single-phase Machine material Metal material (with surface paint) Inkjet printing distance 2-5mm (0.07-0.2 inch) Motor power 60W Belt width 235mm (9.2in) External interface Power supply port, RS232 port, USB port Paging range 50-300mm (1.9-11.8 inches) Paging speed 33m/min (108.2ft/min) Inkjet printing height 2-12.7mm (0.07-0.5 inch) Screen size 5-inch resistive touch screen Quick drying color Red, yellow, blue, green, orange, black, white, invisible Applicable environment Temperature: 0-40˚C

Humidity: 10-80%

Operating languages 29 languages such as Chinese, English, Russian, French, Spanish, Japanese, Korean and Thai Machine size 43*51*29cm (16.9*20.1*11.4 inches) Net weight 22.5kg (49.6LBs) Product Features 1. High Working Efficiency
The machine supports stepless speed regulation and adopts a high-power motor to ensure the strong power and fast paging speed.

2. Wide Application Range
The machine is suitable for paging and inkjet printing of paper packaging, plastic films, aluminum foil bags, kraft paper bags, cartons, cards, etc.

3. Adjustable Inkjet Printing Position
The horizontal distance between the guide plates can be freely adjusted according to the product dimensions, and the print head can also be moved left and right to meet customers' printing needs to the greatest extent.

4. Clear and Precise Printing Effect
The thermal foam print head provides high-definition resolution, supports up to 600 DPI inkjet printing. Inkjet printing is triggered by photoelectric induction, and the inkjet printing position is precise and free from deviation.

5. Diverse Printing Content
The machine supports printing of texts, variable dates, variable time, graphics, logos, barcodes, QR codes, counting, etc., and allows data import via USB flash drive.

6. Sturdy Machine Body
The whole machine adopts a metal machine body, is sturdy and durable, not prone to rusting or deformation, has a reasonable structural design, and makes the replacement of wearing parts easy and quick.

Speed Regulator

The speed regulator adopts the knob structural design, is convenient to adjust and use and achieves precise control over the running speed.

　

Touch Screen

The 5-inch high-definition touch screen is adopted to set and edit the printing content and parameters as needed, and is quick in response.

　

Feeding Inlet

The feeding inlet is equipped with two fixing plates to effectively limit the to-be-printed matter and prevent the material from deviation during feeding.

　

Conveyor Belt

The conveyor belt is flexible and durable, resistant to wear and long in service life, and can smoothly and continuously convey the separated materials one by one.

　

Print Head

The print head is convenient to move and good in printing effect. The ink cartridge can be conveniently clamped and released, and operation is easy and effortless.

　

Photoelectric Sensor

The photoelectric sensor can give a quick response to instructions, has high sensitivity and reliability and effectively improves the induction quality and efficiency.

Operation Method 1. Connect the machine to the 220V single-phase power supply with reliable grounding.

2. Connect the printing cable to the print head, tighten the fixing screw and move the print head and the photoelectric sensor left and right as needed.

3. Remove the clip and install the ink cartridge.

4. Adjust the inkjet printing distance through the fine adjustment device.

5. Adjust the baffles to adapt to the to-be-printed materials, and press down the battens.

6. Turn on the power switch, and test paging operation.

7. Edit the print content on the touch screen. Or connect the USB disk and import pictures to the touch screen.

8. Start the conveyor belt, feed the to-be-printed materials and start paging and printing.

9. Collect the printed materials through the collecting part.

10. After completing inkjet printing, remove the ink cartridge, turn off the power and clean the machine thoroughly.
　

Precaution

1. Check the levels of ink and solvents to ensure they are within their validity periods. Mixing consumables from different brands is strictly prohibited.

2. Clean the nozzle surface and photoelectric sensor regularly to prevent accumulated ink and dust from affecting the detection and printing quality.

3. Avoid idling the machine. Stop it promptly when there is no material, so as to reduce wear on the paging belt.

4. Do not touch the moving or precision components such as the paging roller and print head during operation.

5. Wear chemical-resistant gloves and goggles to avoid contact with skin or eyes when handling ink or solvents.6. Do not cut off the power directly, as this may cause nozzle blockage.

7. Unauthorized disassembly of the nozzle, circuit board or internal components by non-professionals is strictly prohibited. Do not bump or wipe the nozzle forcibly.

Item Number Hot Selling Automatic Paging Machine Friction Feeder Expired Date Inkjet Printer--230615
