DigitalPersona USB Fingerprint Reader Scanner U.ARE.U 5160 Used w/ Box**Tested and working as of 1/6/25**

The device was auto recognized by my Windows 10 PC as "Civil PIV Scanner". Windows 10 auto installed the generic drivers and I also installed the official drivers from the official website. I was unable to get the device to work for windows biometric login, but I was able to test the device using the SDK tools from the website. This makes sense due to this being an older model. This is an older model and there will be limited compatibility. That being said, it should work for older software or if you are a developer you can write your own solution.Software used for testing:

Free Fingerprint Verification SDK
Free Fingerprint Verification software development kit is a freeware SDK intended for adding fingerprint verification functionality into various applications. The SDK is most suitable for developing biometric logon applications, but it can be used also for any other application that do not require to store more than 10 fingerprints.
Free Fingerprint Verifications SDK supports Microsoft Windows 7, 8, 10 and 11 operating systems. The SDK does not require any registration or internet connection for using it.I havent tested all of the software on the website so there may be other software that works with it.

Discontinued model. No longer in manufacturing production.

DigitalPersona's U.are.U 5100 family of fingerprint scanners includes U.are.U 5100 Reader and U.are.U 5160 Reader for end users, and U.are.U 5100 Module for integration into various embedded and mobile devices. The devices are FIPS 201 (PIV) certified, are able to reject latent or spoof fingerprints and have low power consumption via USB port. The U.are.U 5160 Reader includes two status LEDs.

The U.are.U 5100 Reader and U.are.U 5160 Reader feature full IP64-rated ruggedized casing. The U.are.U 5100 Module's top surface is IP64 rated, making it suitable for integration into devices that designed to be sealed against dust and liquids.

USB 2.0 connection

Compatible OS:

• Microsoft Windows (32-bit and 64-bit)
• Linux x86 (32-bit and 64-bit)
• ARM Linux (32-bit and dir="ltr" style="margin-top:0; margin-bottom:0;">


  Compatible Modules:

  MegaMatcher 12.4 SDK, MegaMatcher On Card 13 SDK and VeriFinger 12.4 SDK.







  Item is sold AS IS

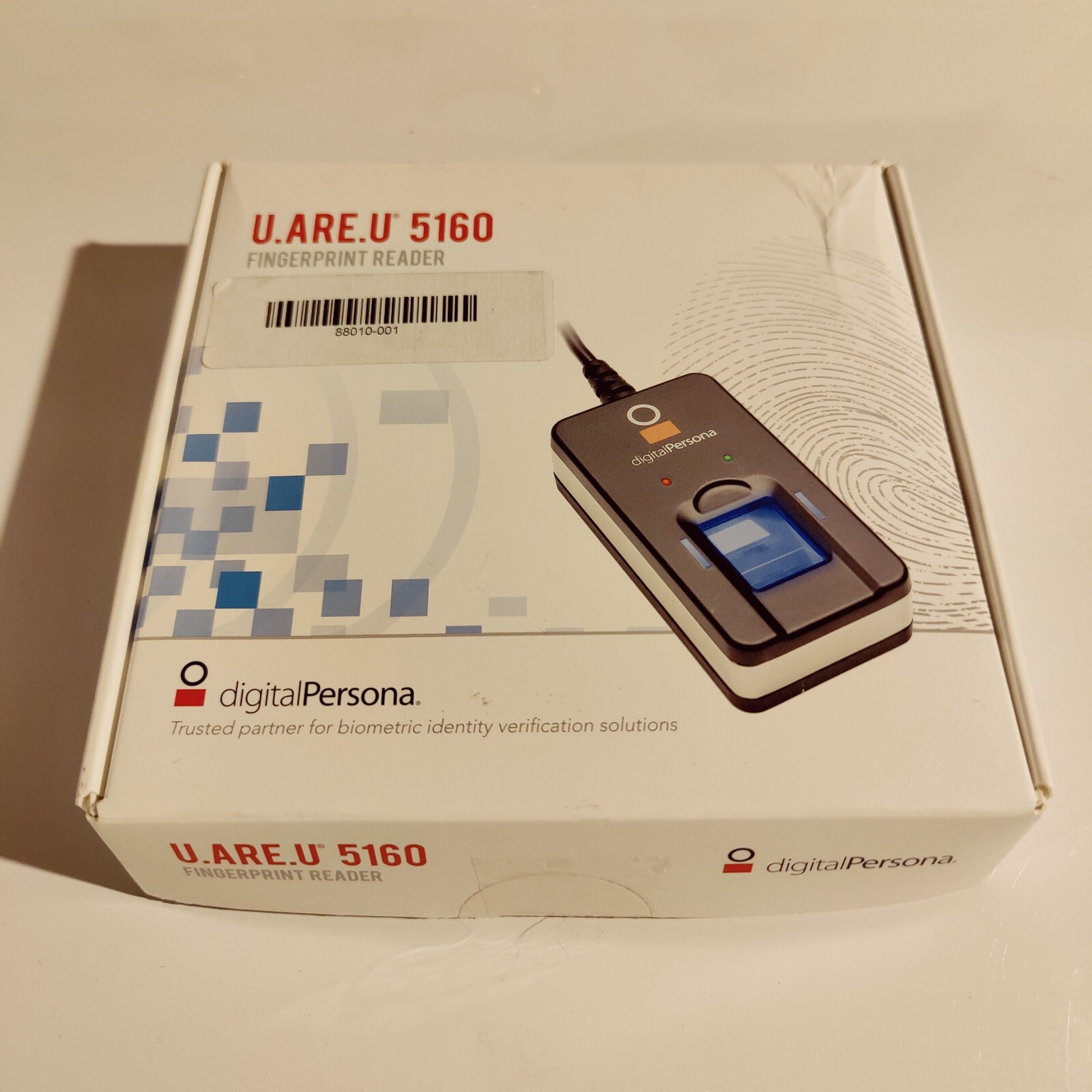

  Comes with unit and box and safety sheet insert pamphlet. Software not included.




  Item is as you see in pictures. All sales are final. No returns.




  I have two of these available. Happy Shopping!




  Item Ships from Pennsylvania.




























  Keyword/ Meta tags:

  Item desc. And specs Continued:

  DigitalPersona 88010-001

  Highlights

  FIPS 201 PIV Certified

  1000 dpi Interpolated Pixel Resolution

  USB 2.0 Interface

  8-Bit Grayscale Scan Data

  Fine-Grained Power Control

  IP64 Rated Top Surface

  High Quality Fingerprint Image

  Landing Lights for Finger Tracking

  Red/Green Status LEDs

  Blue Illumination

  Features

  The U.are.U 5160 USB Fingerprint Reader from digitalPersona is a FIPS 201/PIV-certified, touch-style optical fingerprint reader. Rated at IP64, the reader is sealed against dust and liquids and its hard glass imaging window is highly resistant to chemical and physical damage. Ergonomic blue "landing lights" help guide the user for simple, accurate fingerprint scans. Applications can also use red and green status lights built into the reader to provide immediate response without the need for a separate display screen. The U.are.U 5160 Reader can be used with any standards-compatible fingerprint templates extractor or matcher, including the digitalPersona FingerJet Biometric Engine.

  This compact sized Fingerprint Reader is designed for use with digitalPersona's full range of software including authentication solutions, digitalPersona Pro Enterprise and digitalPersona Online, as well as U.are.U Software Development kits. Whether you are an enterprise customer or a system integrator, digitalPersona's biometric identity verification solutions provide a natural extension to your security system and applications.

  Key Features

  FIPS 201 PIV certified

  Low power consumption

  Compact size

  Fine-grained power control

  Landing lights for finger tracking

  Red/green status LEDs

  Blue illumination

  500 dpi (native) images

  Highly durable glass top surface

  IP64 rated

  Counterfeit finger rejection




  Target Applications

  Desktop PC security

  Voting

  Entitlements

  Finance and banking

  Healthcare and pharmacy




  DigitalPersona 88010-001

  Model Number

  B&H #DI88010001

  Manufacturer #88010-001

  Performance

  InterfaceUSB 2.0 (high speed)

  Pixel ResolutionNative: 500 dpi

  Interpolated: 1000 dpi

  AreaScan Capture: 0.5 x 0.6" (12.8 x 16.5 mm)

  SurfaceTop: IP64 rated

  Scan Data8-bit grayscale (256 gray levels)

  Power Supply

  Voltage5.0 V ± 5%

  CurrentScanning: < 120 mA (typical)

  Idle Mode: < 120 mA (typical)

  Suspend Mode: < 0.5 mA (maximum)

  General

  Connector PointsPin 1: +5 V

  Pin 2: D -

  Pin 3: D +)

  Pin 4: Ground

  Pin 5: Shield

  OS CompatibilityWindows 7, CE, XP Professional

  Linux

  Android 4.x

  TemperatureOperating: 32 to 104°F (0 to 40°C)

  Storage: 14 to 140°F (-10 to 60°C)

  HumidityOperating: 20 to 80% (non-condensing)

  Storage: 20 to 90% (non-condensing)

  Dimensions2.8 x 1.5 x 0.9" (72.0 x 39.0 x 21.7 mm)

  Weight4.6 oz (130.0 g)

  Packaging Info

  Package Weight0.45

  Box Dimensions (HxWxD)1.5 x 6.3 x 6.8
