System requirements
-Windows 11,10, MacOS 11.x or later, Android, Chrome OS, and Ubuntu.

Package Includes:

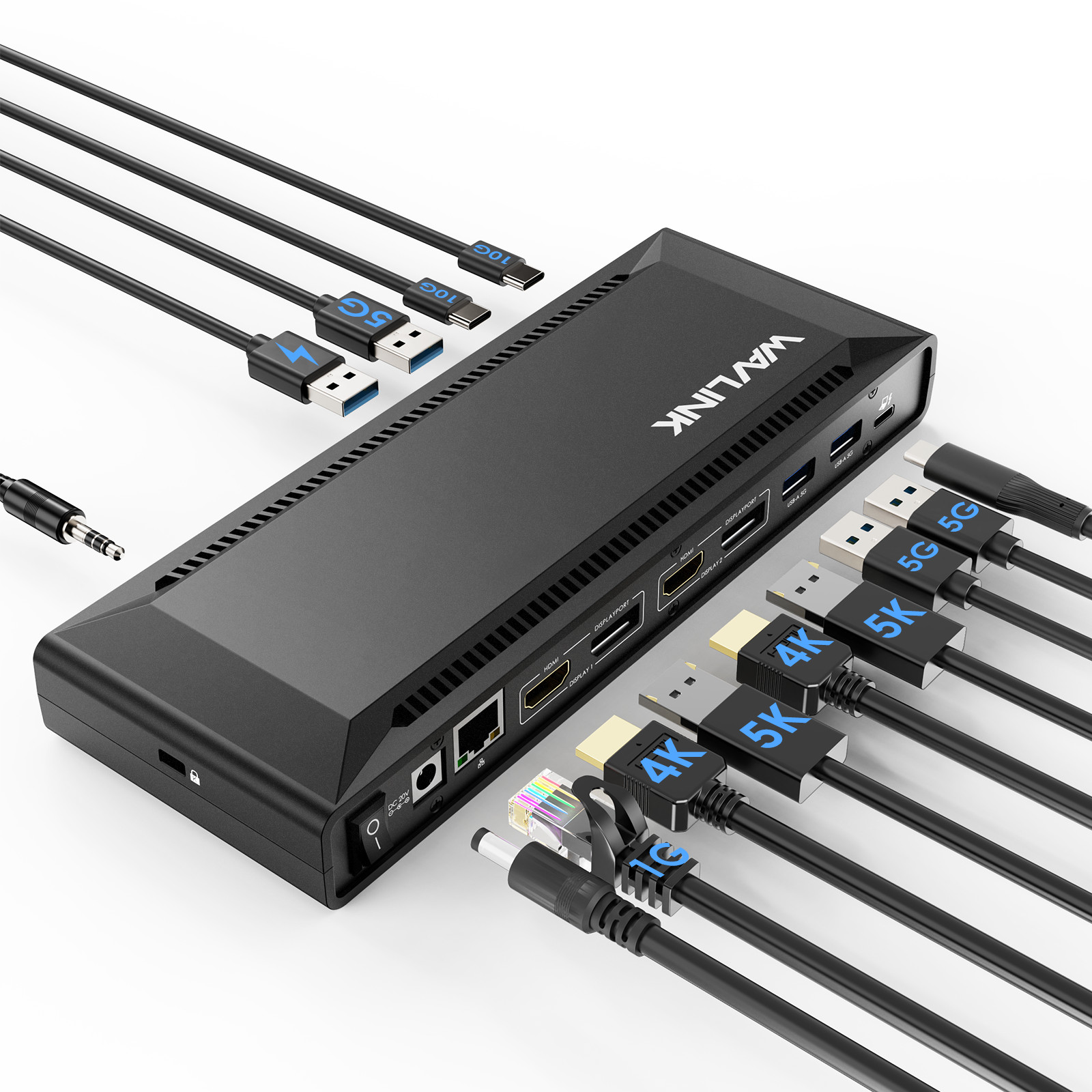

-1 x USB-C Dual 5K Universal Docking Station
-1 x USB-C to USB-C Cable with USB-A Converter(1M)
-1 x DC 20V/6.5A 130W Power Adapter
-1 x AC Power Cable(1.5M)
-1 x Quick Start Guide

Display Resolution:
Single Display: Extend/Mirror for Windows & macOS
HDMI: 4K(4096x2160)@60Hz
DP: 5K (5120x1440)@60Hz
Dual Display: Extend/Mirror for Windows & macOS
Dual HDMI: 4K(4096x2160)@60Hz
Dual DP: 5K (5120x1440)@60Hz
HDMI+DP: 4K(4096x2160)@60Hz

Notice1: Laptops without USB-C ports
You can use USB A to C cable if your laptop doesn’t own any USB-C port. (This A to C cable is not used for Power
Delivery but only for transferring data; please charge your laptop by the original power adapter.)
Notice 2: Dual 4K Display
There are two ports in each section(Display 1&2)that support one monitor at a time, thus please choose the type of port you Wavlink Brings Technology to Life
The new USB Type-C connector works seamlessly with this Ultra HD 4K Universal Docking Station.
It can connect to any host with Standard A or Type C connectors providing a fully backward-compatible and
future-proof docking station. Allow you to connect up to two additional monitors and eleven accessories through a single USB cable.
Including the latest drivers for compatibility with Windows 10/8.1/7 or Apple Mac OS
USB-C Connectivity, Better Performance
USB-C is a new technology and has many different capabilities, so it’s extremely important to learn what your host device
can deliver in order to select the correct docking station for your system. USB Type-C connectivity is also the latest and
extremely reliable technology for video performance. As a result, it will provide a crisp and clear display for you.
Designed perfectly for you
With a single cable, the dock can free up space on your desk and in your workspace with the added ability to mount behind
a monitor or on your desk. Great for presentations, the sleek Dock enables fast, efficient connectivity to multiple displays and
all your various peripherals(like a mouse, keyboard or flash drive) through one convenient cable.
5K@60HZ Output
14.7 million pixels give you amazing feast vision, showing every details clearly as like be personally on the scene.
It also helps to improve operational efficiency on images and video editing.
Dual 4K@60HZ
Featuring the DisplayPort and HDMI port, Wavlink Docking Station gives you the flexibility to connect your displays as needed.
It supports dual monitors or a single high resolution 4K monitor. It will greatly help you facilitate high-resolution works,
graphically intensive images, video editing, CAD drawings, medical imagery and more.
SuperSpeed USB 3.0
SuperSpeed USB3.0 provides up to 5Gbps data transfer speeds, which is 10 times faster than USB2.0. The WAVLINK Universal
Dock features 4 ×USB3.0 ports, allowing for SuperSpeed data transfer between peripherals.
Blazing-fast Gigabit Ethernet
Wired network connections are faster and more reliable than any Wi-Fi. The dock helps you tap into the full performance
of wired network connections with built-in Gigabit Ethernet port.
Your Choice of Sound
With separate microphone input and amplified audio output,you can enjoy crystal-clear conference calls or any other project benefits
from having your voice heard. You’ll be amazed at the immersive music it gives you.
System requirements
-Windows 7 (32-bit and 64-bit editions)
-Windows 8 (32-bit and 64-bit editions)
-Windows 8.1 Update 2014 (32-bit and 64-bit editions)
-Windows 10 TH (32-bit and 64-bit editions builds up to 10586)
-Windows 10 Anniversary Update (32-bit and 64-bit editions, tested on build up to 14393)
Windows XP SP2 and Vista are supported by older versions of the DisplayLink software: displlink
DisplayLink USB Graphics Software for Mac OS X
-EI Capitan 10.11
-Yosemite 10.10
-Mavancks 10.9
-Mountain Lion 10.8
-sierra 10.12
-Lion 10.7
-Snow Leopard 10.6
Specification:
1.Voltage: 100~240V
2.Operating Temperature: 0°C~40°C
3.Storage Temperature: -10~70°C
4.Port: Type-C, 2×DP, 2×HDMI, 6×USB3.0, Earphone and Microphone Jack, RJ-45 Jack, LED, ON/Off Switch
5.Chipset: DL6950 VL813
6.Processor: Core i7
7.Power Adapter: 20V/2A
(Full-Screen Video Playback)
RAM: 4GB
What’s in the package?
1 x Wavlink USB C Universal Dock station
1 x DC20V Certified Power Adapter
1 x USB 3.0 C to C Cable
1 x USB 3.0 A to C Cable
1 x CD Driver
1 x Instruction Manual
Note:
HDMI and DP ports in the area of Display1 or Display2, if they are connected to the monitor at the same time, DP will have the priority.2HDMI/2DPWAVLINK USB 3.0/USB C to DisplayPort and HDMI Adapter, DisplayLink Dual 4K@60Hz Monitor Hub for
Dell HP Surface Lenovo, Compatible with Windows and M1/M2 Mac

WAVLINK USB 3.0 Dual 4K/5K Display Adapter-Enjoy Crystal-clear Visual Feast!
The UG69DH2 display adapter incorporates the advanced DisplayLink technology, allowing you to output video
through both DisplayPort and HDMI ports. This hub features two HDMI ports and two DP ports,
enabling dual display functionality with a maximum resolution of 4K(4096x2160)@60Hz/5K(5120x1440)@60Hz. With this setup,
you can enjoy high-quality visuals and enhanced productivity across multiple monitors. Comes with USB C port and USB C to A convertor,
this adapter is compatible with Thunderbolt 4/3 ports, and USB 4 ports found on compatible computers.
This broad compatibility ensures that you can utilize the adapter with a wide range of devices, making it versatile and adaptable to different setups.

Multi Display mode for choosing, to easily meet your different needs.
You can use it in many occasions such as office, meeting or home theater.

Expand Your Workspace
Multiple USB adapters can be added to your PC for connecting up to 6 additional displays on Windows and 4 on Mac OS.

Dual Displays
The USB3.0 video adapter adds support for two HDMI/DisplayPort monitors, capable of both extending or
mirroring display with resolutions up to dual Design
Lightweight of 137g/4.8oz, compact and portable size has it get handy for you in business trip,
meeting, switching work at home or office etc.

Inputs for Choose
Comes with a hybrid 2-in-1 cable, it is easy to connect a USB-enabled device such as laptop,
desktop, tablet, phone for a multi-monitor solution.

Super Speed
Take advantage of the super-speed USB 3.0 up to 5 Gbps to quickly transfer files,
which ensures stable transmission and reduces latency.

5K/4K without Limitation
USB 3.0 interface backwards compatible with USB 2.0, 5120x1440@60Hz/4096x2160@60Hz resolution
remain when connecting to USB 2.0 interface.

Multiple Display Resolution (Max. Resolution)
1)Single Display:
DP: 4096x2160@60Hz/5120x1440@60Hz
HDMI: 4096x2160@60Hz

2)Dual Display:
DP+DP: 2*5120x1440@60Hz or 2*4096x2160@60Hz or 2*4096x2160@60Hz or 5120x1440@60Hz + 4096x2160@60Hz
HDMI+HDMI: WL-UG69DH2
Color: Silver
Ports: 2x4K@60Hz HDMI 1, 2x4K/5K@60Hz DisplayPort
Unit Size: 11.4x7.3x1.5cm/4.5x2.9x0.6in(L x W x H)
Material Type: Aluminum Alloy+PVC Cable
Item Weight: 137g/4.8oz
Cable Length: 9cm/3.5in
System Requirement: Windows 7/8/8.1/10/11, MacOS 10.14-13.x or later, Chrome OS, Android, Ubuntu and HarmonyOS.

WARM TIPS:
1. Do not support Linux, Unix, iOS and iPad OS.
2. Driver installation is required, do not support plug and play. Please visit the website 'displaylink' to download the latest driver.
3. No additional power source is required for this adapter, work clutter free with fewer power cords around the desk.
4. Android devices support mirror mode ONLY with the resolution up to 1080P.
5. Windows/Mac 12.x based devices support rotation and clamshell modes.
6. The DP and HDMI in the same video stream CANNOT be used simultaneously.
7. Does not support playback of HDCP copyright protected content from Blu-ray/Netflix/Prime/iTunes/Hulu, and other platforms.
8. Suitable for office work, handling spreadsheets, documents or browsing the web. Not suitable for gaming or other high-intensity tasks.
9. For Mac users, it is necessary to grant permission to the DisplayLink Manager to record your screen.
10. Only DP ports support 5K(5120x1440)@60Hz resolution, while HDMI ports can achieve a maximum of 4K resolution.

Q&A
▲Q1: Will this work with my macbook on 2 monitors showing different screens?
A1: Yes, it supports extending two different screens for Mac OS.
▲Q2: Will it have audio if I'm using this adapter?
A2: Yes, it supports audio if there is a built-in speaker with your monitor.

Package Includes:
1 x USB 3.0 to DisplayPort/HDMI Dual Display Adapter
1 x CD-Shaped Card for Driver Download Links
1 x Quick Start Guide
