Draytek Vigor2820N Router Annex A ADSL2+ Security Firewall 3x Antennas EXCL PSU

Dear customer,

When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.

INCLUDING 3X ANTENNAS

EXCLUDING POWER SUPPLY

EXCLUDING NETWORK CABLES

See photos for actual item!

Price isfor 1 item

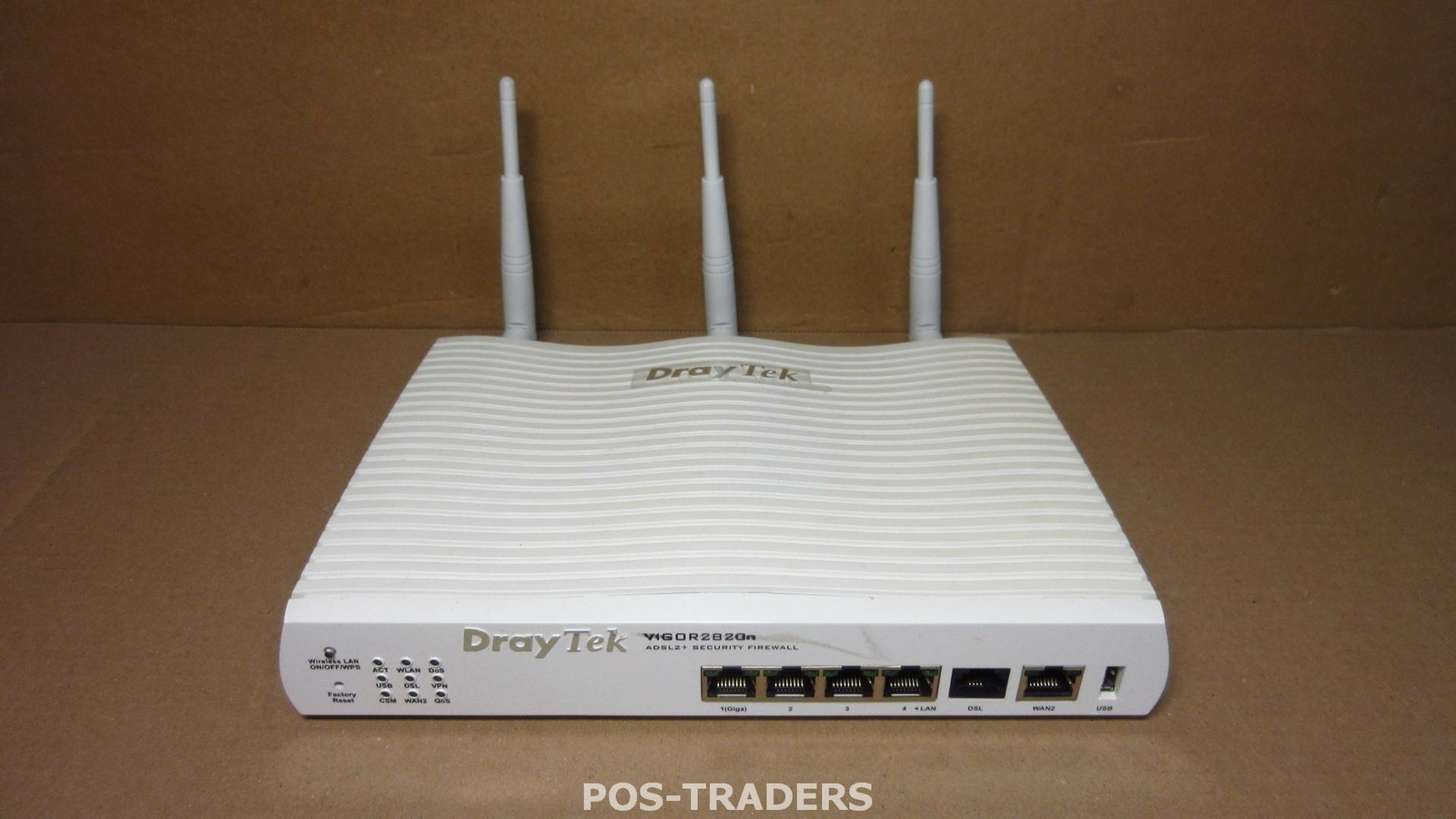

Draytek Vigor2820n Dual WAN ADSL 2/2+ Modem/Router Security Firewall

The Draytek Vigor2820n is an ADSL2+ IEEE802.11n Compliant ( Draft 2.0 ) Modem Router Security Firewall device with a 2nd Ethernet WAN port (Dual WAN). This 2nd WAN can connect to DSL/Cable modem or fiber media converter for policy-based load-balancing, fail-over and Band Width on Demand (BoD); it also features advanced bandwidth control mechanisms such as IP-layer QoS, NAT Session Limitation, Bandwidth Borrowed, etc., to provides you with easy, flexible and reliable access control and bandwidth management.

The SPI (Statefull Packet Inspection) firewall uses Object-Based design to make setting of the firewall policies a snap! The CSM (Content Security Management) feature allows more precise and efficient access control for URL/Web Content Filtering, IM (Instant Messenger) and P2P (Peer-to-Peer) applications.

Wireless Application
Vigor2820n model complies with 802.11n ( Draft 2.0 ) standards. Supporting WEP / WPA / WPA2, encryption and MAC Address Control, Wireless LAN Isolation, Multi SSID and 802.1x authentication. The Wireless Rate Control function can adjust the data rate of each wireless station ( client ). WDS can help users to easily extend wireless coverage.

VPN Firewall Application
With the hardware-based implementation of the VPN protocol, the Vigor 2820n supports up to 32 VPN tunnels using advanced protocols such as IPSec/PPTP/L2TP over IPSec with AES/DES/2DES for encryption and MD5/SHA-1 for authentication.

The SPI firewall uses Object-Based design to make setting of firewall policies easy. The CSM feature allows more precise and efficient access control for URL / Web Content Filtering, IM and P2P applications.

Draytek Vigor 2820n Quick-Specs
Dual-WAN

• Outbound Policy-based Load-balance
• BoD ( Bandwidth On Demand )
• WAN Connection Fail-over

ADSL Compliant ( DSL )

• ANSI T1.413 Issue2
• ITU-T G.992.1 G.dmt
• ITU-T G.992.2 G.lite
• ITU-T G.992.3 ADSL2 G.dmt.bis
• ITU-T G.992.5 ADSL2+
• Multi-PVC
• Annex L ( READSL )
• Annex M*

ATM Protocols ( DSL )

• RFC-2684 / RFC-1483 Multiple Protocol over AAL5
• RFC-2516 PPP over Ethernet
• RFC-2364 PPP over AAL5
• PPPoE Pass Through LAN / WLAN
• PPPoE / PPPoA Relay
• Transparent Bridge for MPoA

Wireless Access Point

• IEEE802.11n Compliant ( Draft 2.0 )
• Wireless Client List
• Wireless LAN Isolation
• 64 / 128 bit WEP
• WPA / WPA2
• Hidden SSID
• Mac Address Access Control
• Access Point Discovery
• Multiple SSID
• Wireless Rate-control
• WMM ( Wi-Fi Multimedia )
• WDS ( Wireless Distribution System )
• 802.1x Authentication

VPN

• Up to 32 VPN Tunnels
• Protocol :
  o PPTP
  o IPSec
  o L2TP
  o L2TP over IPSec
• Encryption :
  o MPPE
  o Hardware-based AES
  o DES
  o 3DES
• Authentication
  o Hardware-based MD5
  o SHA-1
• IKE Authentication :
  o Pre-shared Key
  o Digital Signature ( X.509 )
• LAN-to-LAN , Teleworker-to-LAN
• NAT-Traversal ( NAT-T )
• Dead Peer Detection ( DPD )
• VPN Pass-through

Firewall

• Policy-based Firewall
• CSM ( Content Security Management ) for IM / P2P Application and URL / Web Content Filter
• Multi-NAT / DMZ Host / Port-Redirection / Open Port
• SPI ( Stateful Packet Inspection ) ( Flow Track )
• DoS / DDoS Prevention
• IP address Anti-spoofing
• E-Mail Alert and Logging via Syslog
• IP and MAC Binding

Bandwidth Management

• QoS :
  o Class-based Bandwidth Guarantee by User-Defined Traffic Categories
  o DiffServ Code Point Classifying
  o 4-level Priority for Each Direction ( Inbound / Outbound )
  o Bandwidth Borrowed
• Bandwidth / Session limitation

WAN Protocol ( WAN2 )

• DHCP Client
• Static IP
• PPPoE
• PPTP
• BPA
• L2TP*

Network Feature

• Port-based VLAN
• DNS Cache / Proxy
• DHCP Client / Relay / Server
• IGMP Proxy
• Dynamic DNS
• NTP Client
• Call Scheduling
• RADIUS Client
• UPnP
• Routing Protocol :
• o Static Routing o RIP V2

USB

• 3G USB Modem *
• USB Printer

Network Management

• Web-based User Interface ( HTTP / HTTPS )
• Quick Start Wizard
• CLI ( Command Line Interface , Telnet / SSH )
• Administration Access Control
• Configuration Backup / Restore
• Built-in Diagnostic Function
• Firmware Upgrade via TFTP / FTP / HTTP / TR-069*
• Logging via Syslog
• SNMP Management MIB-II
• TR-069*
• TR-104*

Comes as shown on picture, if something is noton the picture it's not included unless stated otherwise.
