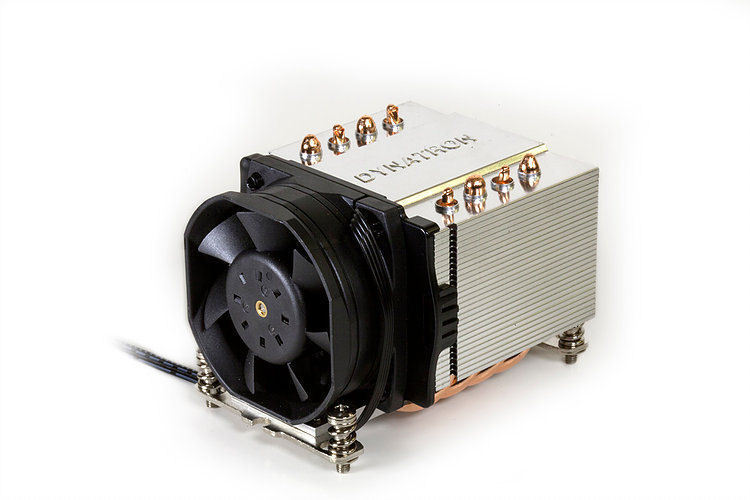

Recommend for AMD Processor, Socket AM4. New innovation 60x60x28mm PWM fan, Aluminum fins with heatpipe directly contact CPU up to TDP 95 Watts for 2U Server & Up.

CPU SupportAMDCPU Socket

AM4

Solution

2U Server and Up

Dimensions

107 x 78 x 67 mm

Weight

400 g

Material

Aluminum Stacked Fin with Heat Pipes directly contact CPU

Fan Dimension

60 x 60 x 28 mm

Speed

At Duty Cycle 20%: 1500±10% RPM
At Duty Cycle 50%: 3500±10% RPM
At Duty Cycle 100%: 7000 RPM

Bearing

Double-Ball

Rated Voltage

12V

Power

At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 2.16 W
At Duty Cycle 100%: 7.2 W

AIr Flow

At Duty Cycle 20%: 8.8 CFM
At Duty Cycle 50%: 20.3 CFM
At Duty Cycle 100%: 40.5 CFM

Noise Level

At Duty Cycle 20%: 16.0 dBA
At Duty Cycle 50%: 32.9 dBA
At Duty Cycle 100%: 47.5 dBA

Air Pressure

At Duty Cycle 20%: 0.7 mm-H2O
At Duty Cycle 50%: 3.6 mm-H2O
At Duty Cycle 100%: 14.3 mm-H2O

Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
