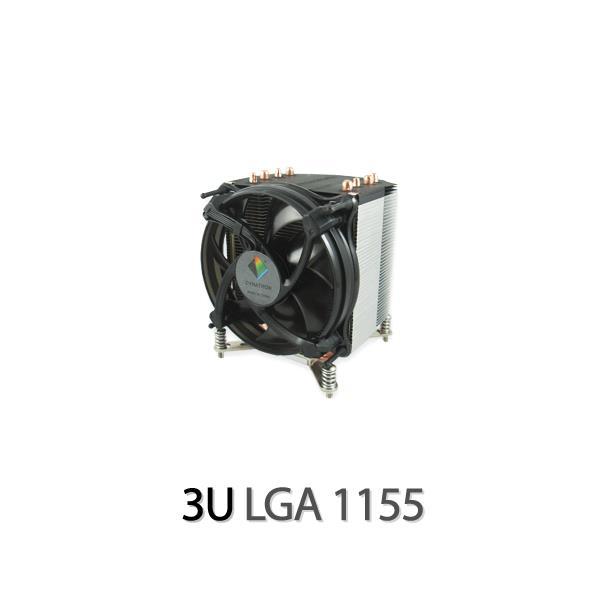

Dynatron K17 3U Rackmount CPU Cooler with Heatpipes for Intel LGA 1155 / 1156 Server Processors

Dynatron® K17: 3U LGA 1155/1156 Active CPU Cooler
For Intel® Xeon® and Core™ Processors

Active 3U CPU cooler from Dynatron® for Intel® LGA 1155 / 1156 (Socket H2, H) server processors. The K17 3U CPU cooler is comprised of multiple design elements. The alumium heatsink provides optimal heat transfer and dissipation and is aligned (fin direction parallel to airflow) to the 92mm fan on its side. 4 copper heatpipes, with direct contact to the CPU, are employed to enhance heat transfer away from the CPU. The heatpipes are split up both sides of the heatsink to maximize travel and efficiency. Using this design, the K17 is able to provide cooling for processors with a maximum TDP of 160W in a 3U design. In the interest of keeping noise levels to a minimum, a large, 92mm fan is utilized and installed via rubber mounts in lieu of traditional screws. Thermal compound is pre-printed with Shin-Etsu G751; no additional thermal compound is required.

Noteable features include:

• Aluminum heatsink with fins parallel to air flow
• Copper heatpipe design with direct contact to CPU for increase efficiency
• Dual-ball bearing fan for durability
• Supports 3U+ and desktop towers
• Pre-printed thermal compound
• RoHS Compliance

Dynatron® K17: 3U LGA 1155/1156 Active CPU Cooler
For Intel® Xeon® and Core™ Processors Manufacturer's P/N: K17 Dimensions: 91 x 91 x 110 mm
3.6" x 3.6" x 4.33" (in inches) Fan Size: 92mm x 92mm x 25mm CPU Support: LGA 1155 / 1156 (Socket H2, H)
Xeon® E3
Core™ i3, i5, i7
Pentium® G9xx, G6xxx
105W TDP MAX Features: Shin-Etsu G751 Thermal Compound (pre-printed) Rated Voltage: 12V Input Power: At Duty Cycle 20%: 0.96 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 3.0 W Speed: At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 1800 RPM
At Duty Cycle 100%: 2500 RPM Static Pressure: At Duty Cycle 20%: 0.48 mm-H2O
At Duty Cycle 50%: 1.55 mm-H2O
At Duty Cycle 100%: 3.0 mm-H2O Maximum Airflow: At Duty Cycle 20%: 17.34 CFM
At Duty Cycle 50%: 31.21 CFM
At Duty Cycle 100%: 43.36 CFM Noise Level: At Duty Cycle 20%: 17.0 dBA
At Duty Cycle 50%: 24.78 dBA
At Duty Cycle 100%: 31.92 dBA Connector : 4-pin PWM International Shipping Details
