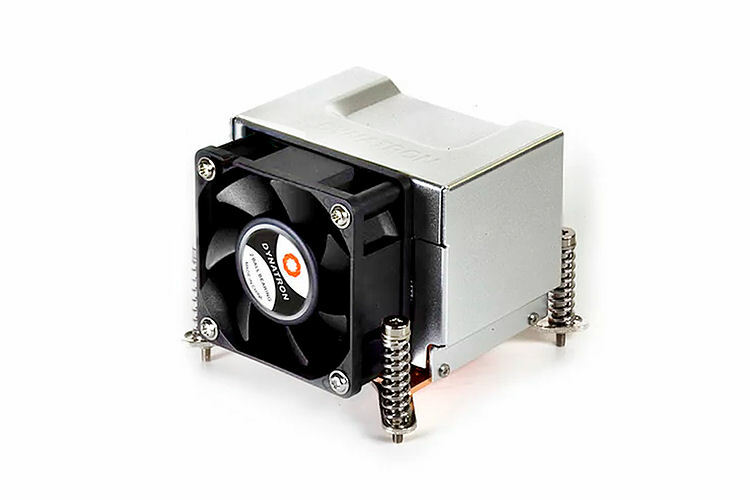

Recommend for Intel® Socket LGA 1150, LGA 115X and LGA 1200, 60 x 60 x 25 mm Fan with PWM function, Copper Base & Aluminum Fins with Heatpipes Embedded, Active Cooler for 2U Server and Up, Support CPU Power up to 125 Watts Heat Dissipation.
CPU Support
Intel
CPU Socket
Socket LGA115X/1200
Weight
500 g
Material
Copper Base & Aluminum Fins with Heat Pipe embedded
Solution
2U Server and Up
Dimensions
90.7 x 85.0 x 64.0 mm
Fan Dimension
60 x 60 x 25 mm
Rated Voltage
12V
Bearing
2 Ball Bearing
Speed
At Duty Cycle 20%: 1600+ 200 RPMAt Duty Cycle 50%: 4000+ 10% RPMAt Duty Cycle 100%: 8000-0/+500 RPM
Power
At Duty Cycle 0~20%: 1.20 W
At Duty Cycle 50%: 2.28 W
At Duty Cycle 100%: 7.20 W
Air Flow
At Duty Cycle 0~20%: 9.28 CFM
At Duty Cycle 50%: 23.21 CFM
At Duty Cycle 100%: 46.41 CFM
Air Pressure
At Duty Cycle 0~20%: 0.76 mm-H2O
At Duty Cycle 50%: 4.76 mm-H2O
At Duty Cycle 100%: 19.04 mm-H2O
Acoustical Noise
At Duty Cycle 0~20%: 18 dBA
At Duty Cycle 50%: 37.89 dBA
At Duty Cycle 100%: 52.94 dBA
Lead Wir Pin Out
Pin1- (-)Pin2- (+)Pin3- (Techometer/Signal output)Pin4- (PWM)
