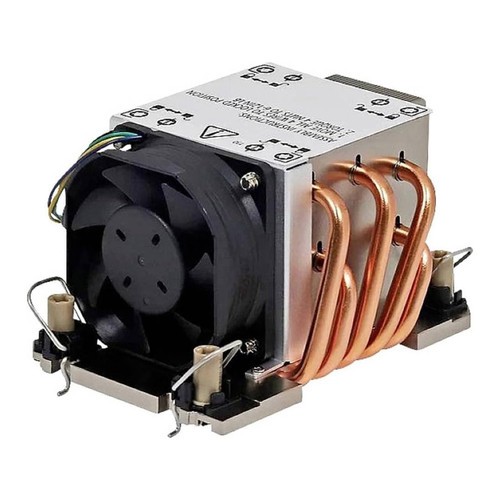

DYNATRON S5R1

The Dynatron S5R1 is a high-performance cooling solution designed for LGA 4677 sockets, specifically tailored for 2U servers and up. Engineered with advanced heat dissipation technology, it ensures optimal thermal management for demanding data center environments. The S5R1 features a durable heatsink and high-efficiency fan that work together to keep CPUs cool under heavy workloads, improving system stability and performance. Ideal for enterprises requiring reliable cooling in compact server setups, the Dynatron S5R1 enhances longevity and reduces the risk of overheating, making it a key component in maximizing server efficiency.

• Recommend for Intel CPU as Intel Sapphire Rapids Proessors, Socket FCLGA 4677
• Active Cooler for 2U Server & Up

Overall Specification

• Material: 5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack
• Fan: 6025 Side-blow fan with PWM Function
• Mounting Method: Intel LGA 4677 standard Mounting Kits
• Package Carrier: PHM Package Carrier is included
• Thermal Grease: SHIT-ETSU 7762 or Equivalent
• TDP: Support CPU Power up to 350 Watts Heat Dissipation

Cooling Fan Specification

• Bearing Double Ball
• Rated Voltage 12V

Rated Speed

• At Duty Cycle 0~20%: 2300± 200 RPM
• At Duty Cycle 50%: 5400± 10% RPM
• At Duty Cycle 100%: 11000±10% RPM

Input Power

• At Duty Cycle 0~20%: 0.84 W
• At Duty Cycle 50%: 2.76 W
• At Duty Cycle 100%: 18.0 W

Maximum Airflow

• At Duty Cycle 0~20%: 11.91 CFM
• At Duty Cycle 50%: 28.38 CFM
• At Duty Cycle 100%: 58.31 CFM

Rated Static Pressure

• At Duty Cycle 0~20%: 1.48 mm-H2O
• At Duty Cycle 50%: 7.54 mm-H2O
• At Duty Cycle 100%: 28.8 mm-H2O

Acoustical Noise

• At Duty Cycle 0~20%: 25.8 dBA
• At Duty Cycle 50%: 44.4 dBA
• At Duty Cycle 100%: 59.8 dBA

Lead Wire Pin Out

• Pin#1- Black(-)
• Pin#2- Yellow(+)
• Pin#3- Green(Tachometer/ Signal Output)
