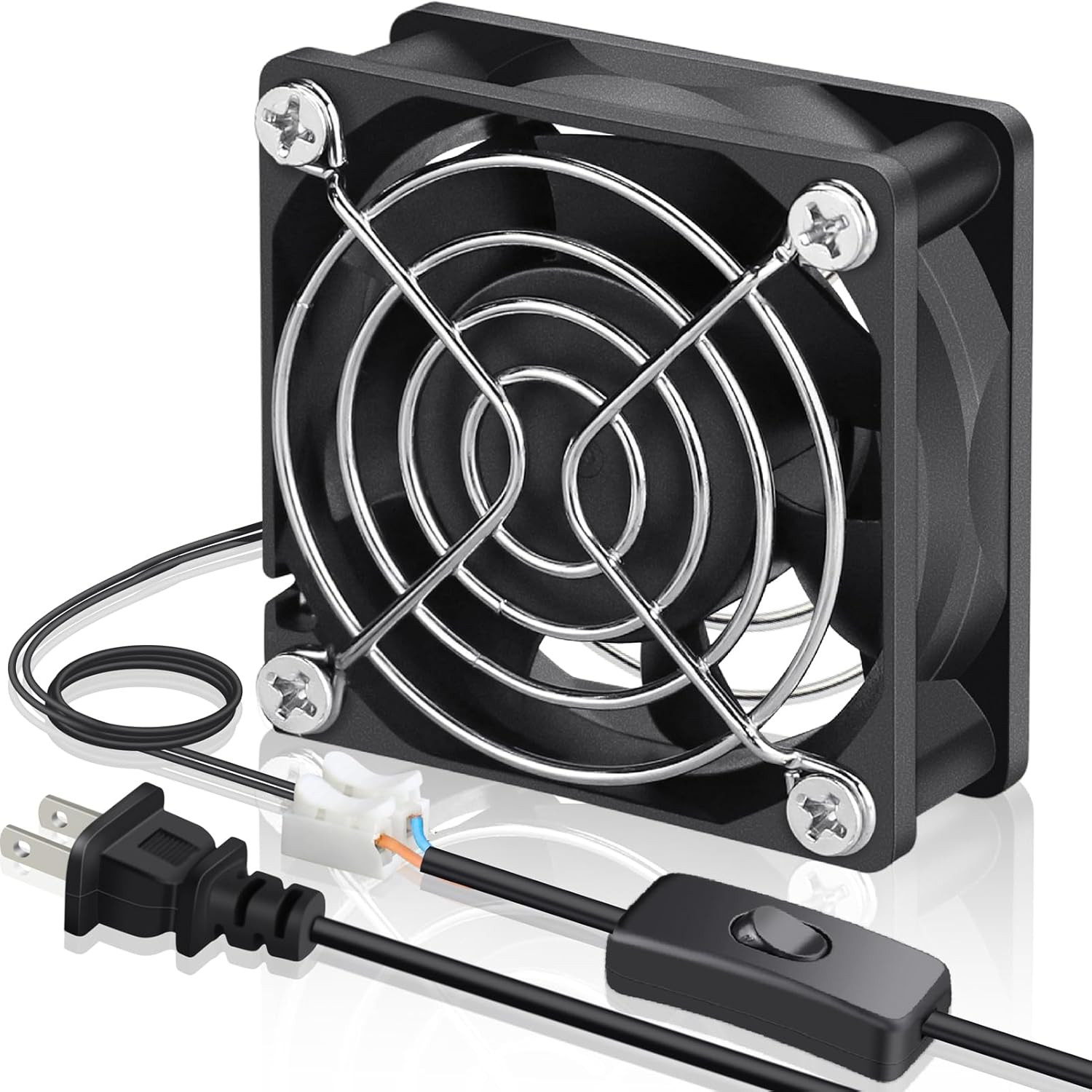

EC Cooling Fan 60Mm X 60Mm X 25Mm AC 110V 115V 120V 220V 240V Dual Ball BearingsDescription Warranty Description One-year Warranty (Free Replacement) Number of Items 1 Noise Level 37.3 Decibels Material Type Plastic Unit Count 1 Count Power Connector Type AC Plug Product Dimensions 2.36"L x 2.36"W x 0.98"H Material Plastic Cooling Method Air Item Weight 2.05 Ounces Maximum Rotational Speed 5000 RPM Air Flow Capacity 25.6 Cubic Meters Per Minute Model EC6025B Part Number EC6025B Item Dimensions L x W x H 2.36"L x 2.36"W x 0.98"H Wattage 1.5 watts Compatible Devices Amplifier, Desktop, Inverter, Printer, Refrigerator Voltage 110 Volts (AC) Included Components EC Axial Fan; Metal Fan Guards; Wiring Connector; AC Power Cord; Screws Set Size 60x25mm

• Versatile DIY Cooling Solution: Compact and energy-efficient EC fan great for various small projects cooling and ventilation; designed to ventilate mushroom chamber, cigar humidor; improve airflow in aquarium, small AV cabinet; circulate air in refrigerator & freezer; exhaust fumes from wood engraver, biltong box and cool amplifier, projector, motor controller, etc
• High Energy-efficient Low Energy Consumption: 80% Power Consumption Reduction compared with conventional AC-powered axial fans and shade pole motors; Space saving design thanks to external rotor motor, increases the air area, 60mm small ec fan can get 1.5-3 times air volume compare to the same AC fan
• Innovative EC Motor: Our EC axial fans is driven by a high efficient EC motor with long-lasting dual ball bearing, up to 67,000hrs lifespan, allows the ec fans to be laid flat or stand upright; the lightweight design ec motor run cooler in application which ensures a longer life for better energy savings and low heat
• Take It Easy: EC axial fans run at 110V, 115V, 120V, 220V, 240V AC (Range from 80 to 240 VAC) and include a 5ft power cord that can be easily attached to the fan cable's metal terminals through a spring connector and allows it to be powered through a wall outlet; with built in switch, you will freely switch the ON/OFF modes
• Everything You Need: Size: 60 x 60 x 25 mm (2.36 x 2.36 x 1 in.) | 80 to 240V AC | Power: 1.5 Watt | Airflow: 25.6 CFM | Noise: 37.3 dBA | Speed: 5000 RPM; Kit includes a GDSTIME EC cooling fan 60mm and a ac power cord with built in switch, a spring wiring connector, two metal fan guards, and mounting screw set, allowing you to effortlessly complete installation

Product description EC Axial Fans

EC fans/motors is highly regarded as the preferred choice for energy efficient motor and fan solutions.Available in 60mm,80mm,90mm,120mm size Run at 110V,115V,120V,220V,240V AC

60mm 110V 120V Fan

Why Choose an EC Fan?

GDSTIME’s EC fans are highly efficient, provide a more compact design, lower energy consumption and longer component life to reduce the costs of operation and maintenance.

• Certified by CE, RoHS.

What is EC Axial Fan? Do you know?

• EC stands for Electronically Commutated, and it combines AC and DC voltages bringing the best of both worlds.
• The motor runs on a DC voltage, but with a normal AC supply. The motor incorporates voltage transformation within the motor.
• The non-rotating part of the motor (stator) is extended to make room for an electronic PCB board which includes power transformation AC to DC, as well as the controls.
• Brushless DC motor / fan driven by AC source input.

• Energy efficient
• Simple connection
• Less power consumption
• Smaller-sized motor for the same level of performance

Key Features High Air Volume

Outstanding airflow performance with low static pressure. The air volume is 1.5-3 times higher than the same AC hood-level fan.

Low Energy Consumption

Efficiency EC motor, allowing EC fans to consume up to 80% less energy. Moved more air at less power consumption.

Dual Ball Bearings

Lightweight motor rotor design and low operating temperature rise, Dual-ball bearings works up to 50,000 hrs.

Global Universal Voltage

All EC axial fans run at 110V, 115V, 120V, 220V, 240V AC (Range from 90 to 270 VAC), include a power cord,wire connector,fan grill and screw set.

Product Description

Lightweight Compact Construction

This 60mm x 60mm x 25mm EC axial fan's operating temperature rise is very low, so the EC fan's housing can be constructed of PBT Material, its impeller and blades are one-time injecting molded with thermoplastic. It has 300 millimeter AWM 1007 24 AWG 80℃ 300V VW-1 wireleads. High precisious long life dual ball bearings and ec fan motor,the fans lifespan up to for 50,000 hours at 77℉. (The Operating Temperature is 14℉ to 167℉)

Applications

The EC axial fan widely used for ventilation of residential, office and industrial buildings or as a replacements fans. It can be mounted flat or upright.

Popular used in Air Handlers, Cabinet Cooling, Commercial Refrigeration, HVAC, Copiers & Projectors, Air Cleaners & Heaters, Server/Storage Devices, Vending , Mobile Devices, Purifiers, and other and components.

Package Contain:

1x 60x60x25mm EC axial fan

1x 60mm metal fan grill

1x Spring wire connector

1x 4.9ft US 110V 120V AC power cord

4x Screws and nuts for quick mounting
