Technical Specifications

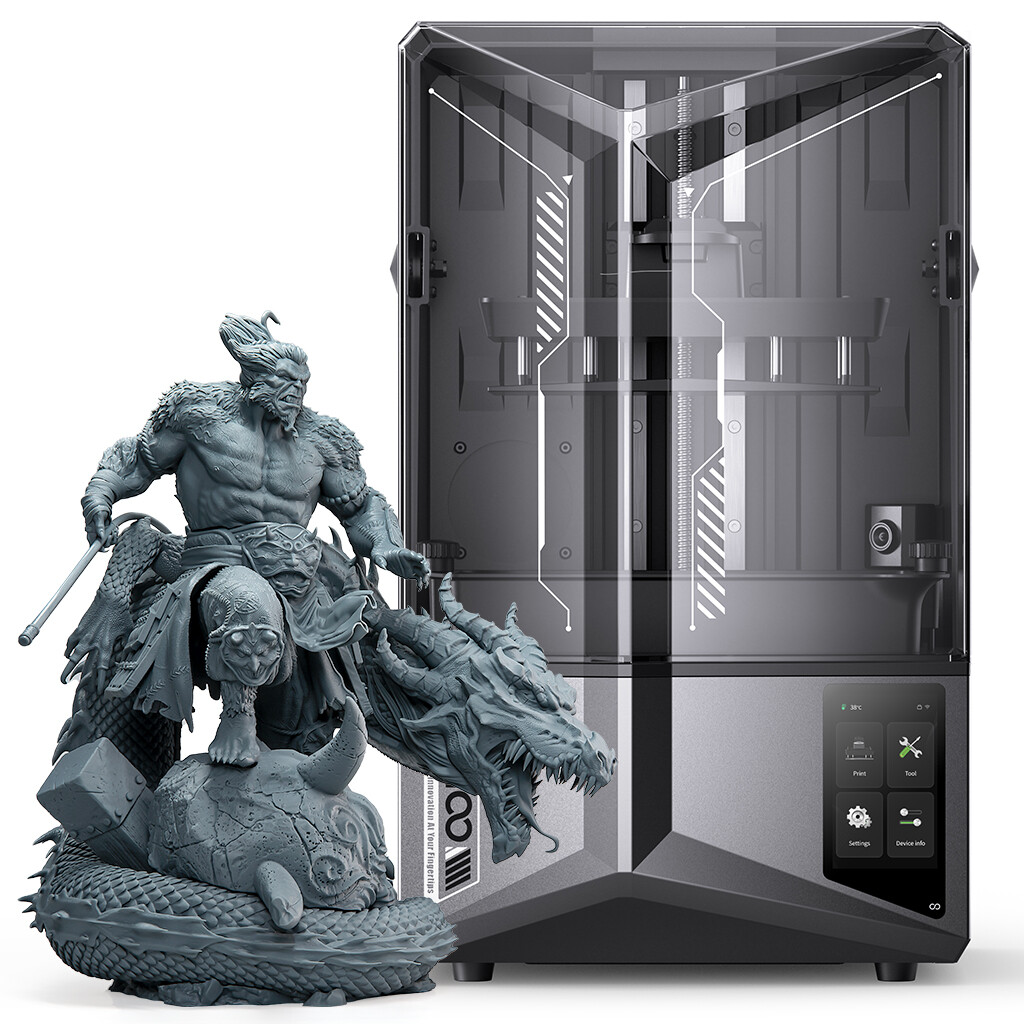

- Product model:Saturn 4 Ultra
- System: EL3D-4.0
- Slicer Software: ChituBox
- Technology: MSLA
- Layer Thickness: 0.01-0.2mm
- Printing Speed: MAX 150mm/h
- Z Axis Accuracy: 0.02mm
- XY Resolution: 19x24μm (11520x5120)
- Build Volume: 218.88 x 122.88 x 220 mm³
- Light Source: COB Light Source (wavelength 405nm)
- Languages: Chinese English Japanese Dutch Korean French German Russian Italian Spanish Turkish Portuguese
- Connectivity: USB&WiFi
- Weight: 14.5kg
- Operation: 4.0-inch Capacitive Touch Screen
- Power Requirements: 100-240V 50/60Hz 24V 3A
- Printer Dimensions: 327.4 x 329.2 x 548 mm³
Technical Specifications
- Product model:Saturn 4 Ultra 16K
- System: EL3D-4.0
- Slicer Software: ChituBox
- Technology: MSLA
- Layer Thickness: 0.01-0.2mm
- Printing Speed: MAX 150mm/h
- Z Axis Accuracy: 0.02mm
- XY Resolution: 14x19μm (15120x6230)
- Build Volume: 211.68 x 118.37 x 220 mm³
- Light Source: COB Light Source (wavelength 405nm)
- Languages: Chinese English Japanese Dutch Korean French German Russian Italian Spanish Turkish Portuguese
- Connectivity: USB&WiFi
- Weight: 16.1kg
- Operation: 4.0-inch Capacitive Touch Screen
- Power Requirements: 100-240V 50/60Hz 24V 3A
- Printer Dimensions: 327.4 x 329.2 x 548 mm³
Tilt Release Innovation
Boasting a blazing fast speed of up to 150mm/h, the Mars 5 Ultra leaves competitors in the dust. Its revolutionary tilt release technology enables swift model peeling from the release film,
ensuring lightning-fast printing without compromising on detail, accuracy or reliability.
New Resin Calibration Function
Users can choose 8, 6, or 4 equal parts; for example, after choosing the 8-part test, 3D printing can be performed on 8 areas with different exposure times at the same time.
The texture of the finished model can be used to determine which area has the most favorable exposure time for molding.
Say goodbye to costly failures and wasted time as the AI camera detects errors in real-time, guiding you to flawless results. Never worry about empty build plate or model warps again.
The AI camera monitors every step, instantly alerting you to any errors for immediate resolutions.
Technical Specifications
- Product model:Mars 5 Ultra
- System: EL3D-4.0
- Slicer Software: ChituBox
- Technology: MSLA
- Layer Thickness: 0.01-0.2mm
- Printing Speed: MAX 150mm/h
- Z Axis Accuracy: 0.02mm
- XY Resolution: 18x18μm (8520x4320)
- Build Volume: 153.36 x 77.76 x 165 mm³
- Light Source: COB Light Source (wavelength 405nm)
- Languages: Chinese English Japanese Dutch Korean French German Russian Italian Spanish Turkish Portuguese
- Connectivity: USB&WiFi
- Weight: 8.8kg
- Operation: 4.0-inch Capacitive Touch Screen
- Power Requirements: 100-240V 50/60Hz 24V 3A
- Printer Dimensions: 260 x 268 x 451.5 mm³
Operation instructions:
After the model is printed, please clean and blow-dry the model before putting it into the curing machine.
If the model become yellow after curing, please adjust the curing time. Over curing will lead to a yellowing model.
The recommended ambient temperature is 0-40 degrees, and the ambient humidity is 20%-50%.
To avoid overheating of the curing cabinet, please do not use it for more than 40 minutes at a time.
Cure Time: If model diameter less than 30 mm, the curing time is recommended to be 2 minutes. If the surface structure of the model is complex, it is recommended to increase the curing time properly.
Special Notes: The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.
A Real Thorough Curing
2 adjustable L-shaped light bars and increased 4 LED lights under the 360° rotating turntable paired with Fresnel lens to emit UV light with a uniform wavelength of 405nm, ensuring that the model is evenly exposed from all angles. Additionally, there is a handheld UV lamp to cure the interior or nooks and crannies of 3D printed parts for smoother surface and incredible print quality, also ideal for curing assembled models.
Powerful Rinse
The 7.5 liter water container is designed with rubber sealing tape and powerful turbine blade to effectively removal excess resin on the surface of models and prevent liquid splashing and volatilization.
2 cleaning methods: basket washing, remove the model and put it into the basket for cleaning; suspension washing, directly hang the printing platform on the cleaning rack for cleaning.
Convenient Operation Settings
Simply press and hold the knob for 3 seconds to turn on, with a neatly interface for easily operating the washing and curing functions.
The settings time can be adjusted for maximum 30 minutes according to your needs.
UV Protection Cover
The transparent cover of the curing machine can block up to 99.9% of ultraviolet rays to improve resin solidification rate and protect your eyesight during curing process.
A safety option automatically switches off the UV lights when you remove the cover.
Separate Curing and Washing
A double-connected adapter saves you time by allowing you to perform curing and cleaning jobs at the same time, one for cleaning and the other for curing.
Once washing and curing completes, smooth and clean parts are ready where you are.
Technical Specifications
ELEGOO Mercury XS WASH Machine
- Control Method: Knob + Button
- Rated Power: 12W
- Input Voltage: 110V/240V 50/60Hz
- Time Setting: 0-30mins
- Machine Size: 255mm*155mm*385.5mm
- Maximum Wash Volume:
- (with platform)180mm*121mm*153mm
- (without platform)201mm*124mm*255mm
- Machine Net Weight: 2.27kg
ELEGOO Mercury XS CURE Machine
- Control Method: Knob + Button
- Rated Power: 36W
- Input Voltage: 110V/240V 50/60Hz
- Time Setting: 0-30mins
- Machine Size: 246mm*230mm*363.5mm
- Maximum Curing Size: 200mm*260mm
- Machine Net Weight: 2.4kg
Technical Specifications
- Control Method: Touch button
- Rated Power: 12W
- Input Voltage: 110V/240V 50/60Hz
- Time Setting: 0-30mins
- Machine Size: 302.5mm*302.5mm*412.5mm
- Maximum Wash Volume:
- (with platform)214mm*135mm*180mm
- (without platform)230mm*1236mm*260mm
- Machine Net Weight: 4.7kg
ELEGOO Mercury Plus 2 in 1 Washing and Curing Station 2.0
With dual function of washing and curing integrated in 1 machine, it could greatly saves your desktop space.
The sealed washing function is now added, which can effectively block the volatilization of alcohol during the washing process, and protect your health.
Fan-less design of curing mode reduces the noise level giving you a more pleasant experience.
New Upgraded
Sealed washing prevents the volatilization of alcohol during the washing process and protects your health. The anti-UV lid can block 99.95% of ultraviolet rays to protect your eyes.
Fan-less design makes sure there are less noise even during the curing process so you focus more on the output.
Powerful Function
360-degree rotating turntable, you can quickly cure every detail of the model and make the model perfect.
Powerful UV Light of the built-in 16pcs 405nm a UV curing lamp beads to cure the model fast.
- Intelligent operation mode
Touch the button, you can see the setting time and remaining time, and the machine will beep when the curing is completed, saving time and effort.
Flexible cleaning method
If the printed model is not removed from the build platform, please install the build platform on the adjustable platform support (the height of the platform support can be adjusted to fit the liquid level in the bucket, the maximum model height is 120 mm), and then adjust the platform bracket to hang on the top of the pillar to start cleaning.
If the printed model has been removed from the build platform, you need to put the model in the cleaning basket (maximum height of the model is 160 mm) and hang the cleaning basket on the top of the pillar to start cleaning the model. Models larger than 15 mm in size can use this cleaning option. Some small models can be cleaned together in a bucket.
Ideal Compatibility
Compatible with most of the LCD/DLP/SLA 3D printers like ELEGOO Mars, Mars Pro, Mars C, Photon, Photon s etc, which provides you an ideal support for washing and curing your 3D resin prints.
Technical Specifications
- Control Method: Touch button
- Rated Power: 48W
- Input Voltage: 110V/240V 50/60Hz
- Time Setting: 0-30mins
- Machine Size: 302.5mm*302.5mm*412.5mm
- Maximum Wash Volume:
- (with platform)124mm*90mm*110mm
- (without platform)131mm*90mm*220mm
- Machine Net Weight: 3.8kg
