Product Features:
-Suitable for all vehicles, boats and off-road vehicles
-The signal comes directly from the satellite signal receiver(GPS Speed Sensor)
-The gauge has the advantages of high precision, quick location confirmation and short start up time.
-IP67 waterproof and dustproof grade
-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc.
-With curved glass (with anti-fogging function)
-With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)). >Technical Data:
-Fixing dimension: 52mm(2")
-Indicating Range: 0-999(MPH, Knots, KM/H adjustable)
-Odometer: 0-999999(miles, nmi, km adjustable)
-Working Voltage: 9-32V(12V/24V )
-Backlight: Red
-Functions:
SOG---current speed;
ODO---will record the mileage after power off
-Connection: Blue wire--Negative /Ground, Red wire--Positive, Orange wire--Positive(lighting wire)
-This GPS Speedometer is complete unit, can work directly with gps sensor together, not need other sensor cables.
-After connection, it takes about 30 seconds to get signal in the first time, but less than 3 seconds after that. a clear view of the sky. Sometimes if signal is missing, pls. reconnect all wires and restart it.
-Operation mode: LCD display, stepper motor Package Includes:

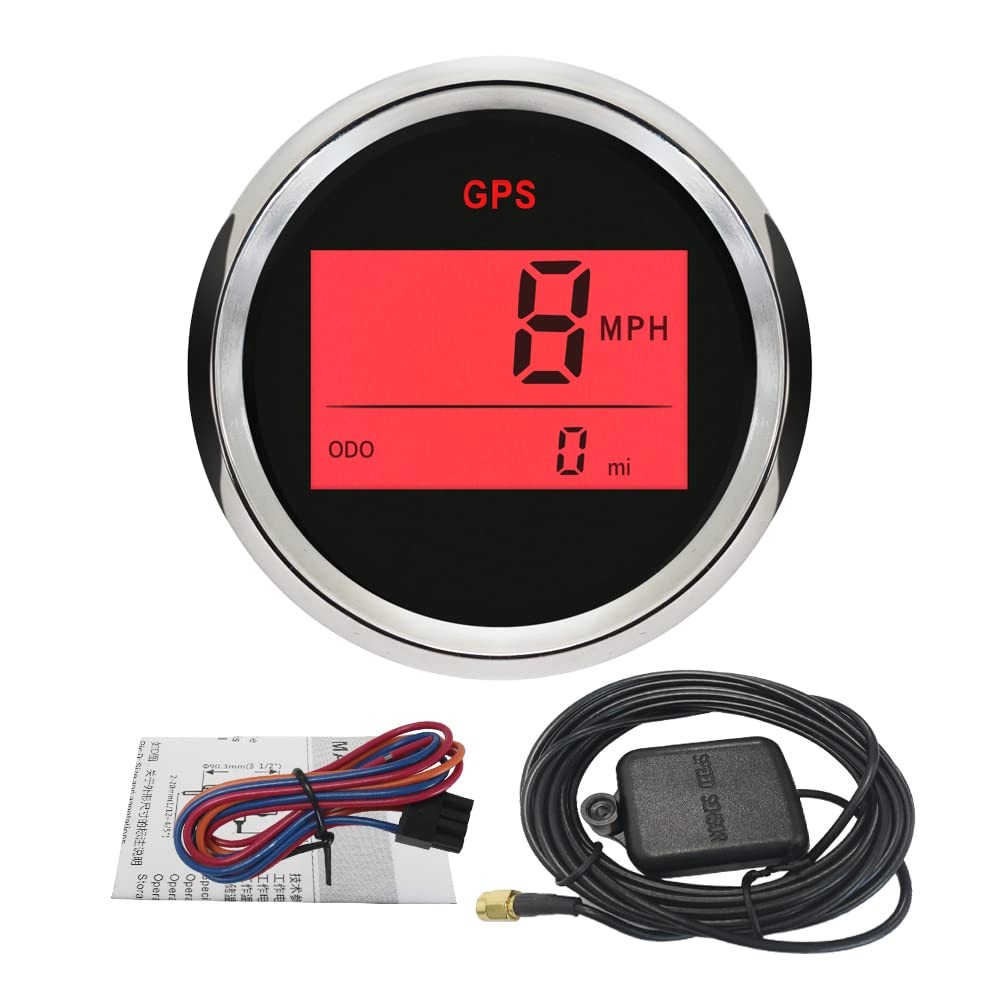

1x GPS speedometer < 1x GPS Speed Sensor
1x Multi-plug socket
1x Installation Instruction
Cut an 52mm (2 1/16") hole in the panel and allow a clearance of 70mm (2 3/4”) behind the panel to fit the gauge. Put the gauge in the hole. Using M4 nut and C type bracket to seal up the gauge.
For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable.
After connection, it takes about 30 seconds to get signal in the first time, but less than 3 seconds after that. It gets quicker under a clear view of the sky.
It shows Current Speed and ODO, Press the back button to adjust unit(KM/H. MPH, KNOTS)
Red Backlight, 9-32VDC(12VDC/24VDC) Working Voltage, 100% Waterproof and anti-fogging protection
